Why does SEM need coating?

Why does SEM need coating?

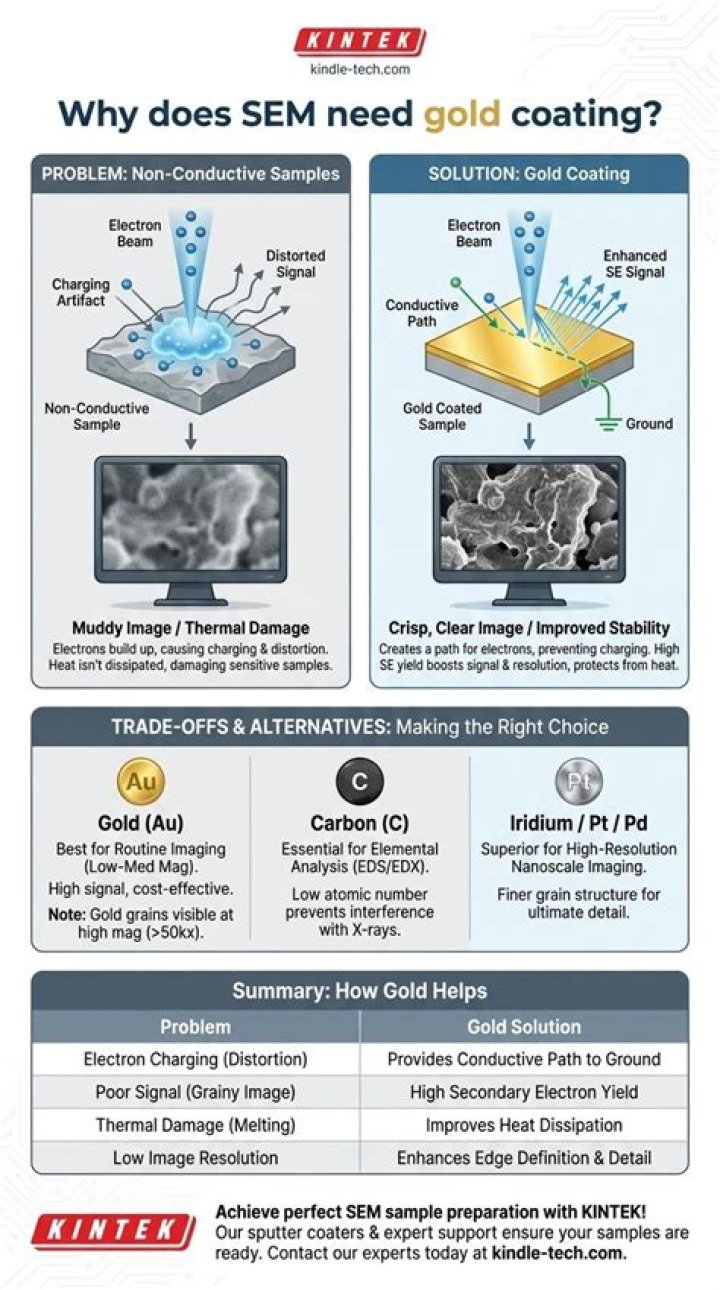

Coating of samples is required in the field of electron microscopy to enable or improve the imaging of samples. Creating a conductive layer of metal on the sample inhibits charging, reduces thermal damage and improves the secondary electron signal required for topographic examination in the SEM .

How does sputter coating work?

Sputter coating is a physical vapor deposition process used to apply a very thin, functional coating on a substrate. The process starts by electrically charging a sputtering cathode which in turn forms a plasma causing material to be ejected from the target surface.

What is the difference between SEM and TEM?

The difference between SEM and TEM The main difference between SEM and TEM is that SEM creates an image by detecting reflected or knocked-off electrons, while TEM uses transmitted electrons (electrons that are passing through the sample) to create an image.

Why carbon tape is used in SEM?

Because specimens in a conven- tional SEM must be electrically grounded, carbon tape has the advantage of providing both excellent adhesion and conductivity (Whitcomb 1981).

What is a carbon coater?

Sputter and carbon coaters are used to deposit a thin metal or carbon layer on the surface of a substrate. Carbon is used for EDS and WDS analysis because of the low absorption of X-Ray and to create support films for TEM.

What is the difference between sputtering and evaporation?

Sputtering uses a plasma, which produces many high-speed atoms that bombard the substrate and may damage it. Evaporated atoms have a Maxwellian energy distribution, determined by the temperature of the source, which reduces the number of high-speed atoms.

What is Pvt coating?

PVD (physical vapor deposition) coating, also known as thin-film coating, is a process in which a solid material is vaporized in a vacuum and deposited onto the surface of a part.

Which is better SEM or TEM?

In general, if you need to look at a relatively large area and only need surface details, SEM is ideal. If you need internal details of small samples at near-atomic resolution, TEM will be necessary.

Is TEM 2D or 3D?

SEMs provide a 3D image of the surface of the sample, whereas TEM images are 2D projections of the sample, which in some cases makes the interpretation of the results more difficult for the operator.

What is carbon tape made of?

Carbon-fiber tape is a flat material made of carbon fiber. It weighs one-seventh as much as steel for a given strength. The carbon fiber core lasts longer than conventional steel cable. The material is resistant to wear and abrasion and, unlike steel, does not densify and stretch.

How does carbon tape work?

Carbon tape conducts electricity and is the most efficient heating element, especially in the infrared range. This carbon tape is very soft and feels like a simple cloth. It’s so thin that you can place it directly on fingers, and it will not cause inconvenience.
