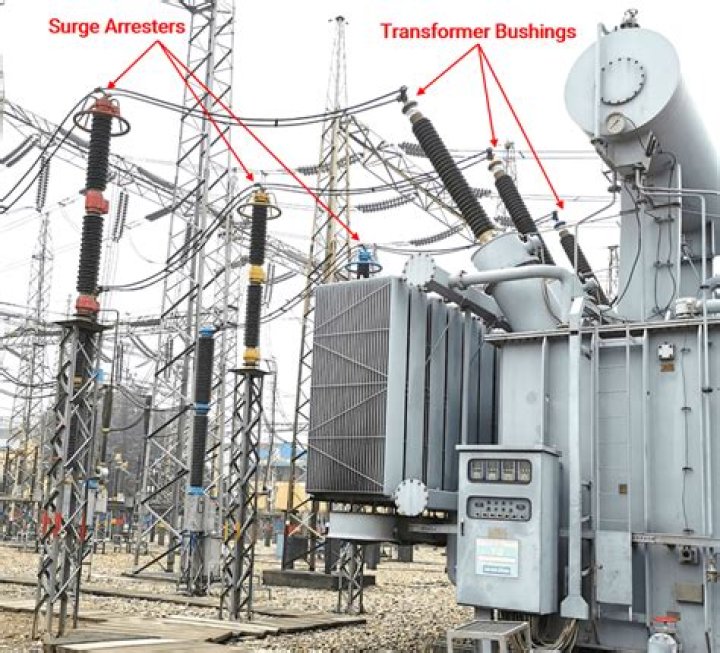

Which transformer is used in substation?
Substation transformers are most often offered with one of 3 different fluids: Mineral oil or silicone transformer oil. Primary voltages of a substation transformer usually ranges from 2.4 kV to 69 kV in 225 through 20,000 kVA sizes, but 600 volt through 35 kV secondary voltage ratings are also available.
Why transformer is used in substation?
The transformer is the heart of the substation. The transformer changes the relationship between the incoming voltage and current and the outgoing voltage and current. Some large transformers have fins for the oil to circulate through and thus dissipate heat. …
How much does a substation transformer cost?
While the cost for one additional transformer foundation and appurtenant materials might cost about $150,000, the transformer itself might cost anywhere from $900,000.00 to $1,200,000.00 depending on it’s capacity.
What is the area required for 220 kV substation?
High Voltage Substation (HV Substation): Involving voltage between 11 kV and 66kV. Extra-High Voltage Substation (EHV Substation): Involving voltage between 132 kV and 400kV….Detailed Solution.
| Type of Substation | Area Required |
|---|---|
| 132 kV Substation | 10 acres |
| 220 kV Substation | 25 acres |
| 400 kV Substation | 50 acres |
What is kV transformer?
kVA stands for Kilovolt-Ampere and is the rating normally used to rate a transformer. The size of a transformer is determined by the kVA of the load. For example a 1KW (1000 Watts) load would require a 1kVA transformer @ unity power factor.
How many transformers are in a substation?
A transformer substation usually has one or two power transformers, distribution equipment, control and protective devices, and auxiliary equipment.
What is 11kv substation?
11 KV Substation. Pole-Mounted Sub-Station: 1. It is a distribution sub-station placed overhead on a pole. It is the cheapest form of substation as it does not involve any building work.
How much does a new transformer cost?
Power pole transformers cost anywhere from $3,000 to $7,000 each, depending on how much electricity they’re designed to handle. The money comes from utility customers.
How long does a substation take to build?
Siting and building a substation is no simple process; in fact, from the planning phase to implementation, it takes two to three years to complete just one, at a cost of approximately $1.5 million. The voltage coming to the substation, at 115,000 or 46,000 volts, is too high to go directly into your neighborhoods.
What does a switchyard do?
A switchyard or substation is an assembly of apparatus which transforms the characteristics of electrical energy from one place to another and controls the flow of power. Switchyard controls the exchange of electrical energy.
What is 400kv switchyard?
400 KV Switchyard of Ramagundam Super Thermal Power Station is the most vital switching station in the southern Grid. 2600 MW of Bulk Power generated by three 200 MW Units and four 500 MW Units of NTPC Ramagundam is evacuated for supplying to the southern states. Switchyard consists of four 400 KV busbars fed by 7 Nos.
What does 25kva mean?
Essentially, the higher the kVA rating, the more power the generator produces. A kVA is 1,000 volt-amps. It’s what you get when you multiply the voltage (the force that moves electrons around a circuit) by the amps (electrical current). Kilovolt-amps measure what’s called the ‘apparent power’ of a generator.
What kind of transformer does Eaton make?
Substation transformer Eaton’s Cooper Power series substation transformers are built with unprecedented quality and attention to detail, meeting a vast range of customer specifications and applications.
Why choose a Cooper power substation transformer?
Designed to meet exact customer specifications, Eaton’s Cooper Power series substation transformers fulfill a variety of commercial, industrial and utility needs for both indoor and outdoor applications.
What is a subsubstation transformer?
Substation transformers feature a rectangular coil configuration with wire-wound, high-voltage primaries and sheet-wound secondaries. The design minimizes axial stress developed by short circuits and provides for magnetic balancing of tap connections.
What is an electrical substation?
An electrical substation is a subsidiary station of an electricity generation, transmission and distribution system where voltage is transformed from high to low or the reverse using transformers. Electric power may flow through several substations between generating plant and consumer, and may be changed in voltage in several steps.
