Which cannon assembly is used on the m224 60mm mortar

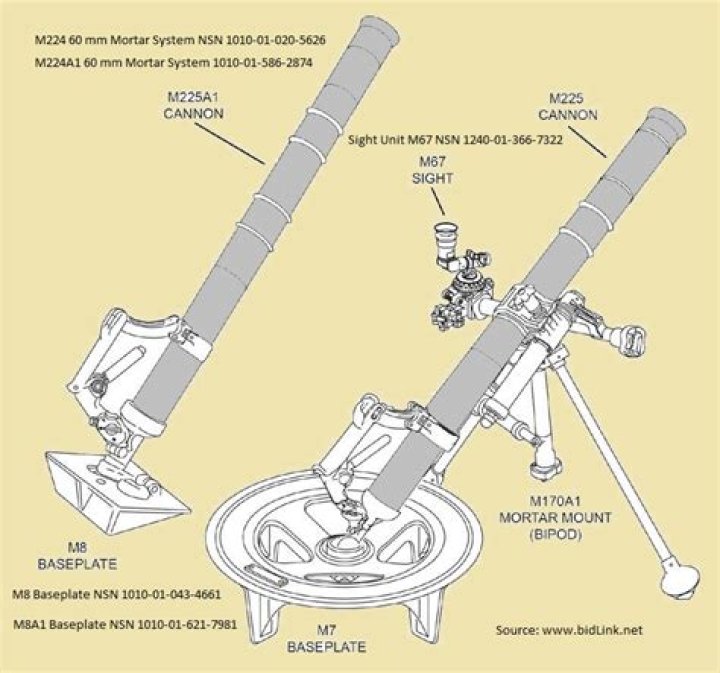

The M224 Mortar System consists of the following major components: M225 Cannon Assembly (14.4 lbs) M170 Bipod Assembly (15.2 lbs) M7 Baseplate (14.4 lbs)

Which type of fuze is used with 60mm mortar ammunition?

The 60MM Mortar High Explosive/Point Detonating (HE/PD) cartridges are designed for use with the M224 Lightweight Company Mortar System (LWCMS) in all light infantry battalions including Airborne, Air Assault and Ranger. It will use the new M783 dual safety, point detonating/delay fuze.

What are the parts of 60mm mortar?

A. DESCRIPTION: THE 60-MM MORTAR, M224, IS A MUZZLE LOADED, SMOOTH BORE, HIGH-ANGLE-OF-FIRE, WEAPON. IT MAY BE DROP-FIRED OR TRIGGER FIRED, AND IT HAS FIVE MAJOR COMPONENTS: (1) CANNON, M225: THE CANNON HAS ONE END CLOSED BY A BASE CAP. THE BASE CAP END OF THE CANNON HAS COOLING FINS ON THE OUTSIDE.

What are the four types of service ammunition for the M224 60mm mortar?

The M224 is cleared to fire variety of ammunition types including standard practice and training rounds, infrared and standard illumination rounds, white phosphorous smoke projectiles and high-explosive (HE) munitions with multi-option/point detonation fuses. A single M224 unit cost is listed as $10,658.

What purpose does the fin assembly of a 60mm mortar round serve?

Fins are attached to the fin assemblies of 60MM, 81MM, and 120MM mortar artillery ammunition rounds and are used to provide stability during the flight of the round.

Does the army use 60mm mortars?

The M224 60mm lightweight mortar is a man-portable, smoothbore, muzzle-loading, high-angle-of-fire weapon used for close-in support of ground troops, airborne and special operations forces. It is currently in use with both the U.S. Army and the Marine Corps.

What baseplate should the M224 60mm mortar use when firing in the handheld mode?

3-6. The baseplate, M8, (Figure 3-4) is a one-piece, rectangular, aluminum-forging base. It should be used when the mortar is fired in the handheld mode. The baseplate allows the mortar to be fired 0800 mils left and 0800 mils right of the center of sector for a total sector coverage of 1600 mils.

How far can a 60mm mortar shoot?

The 60mm mortar has a maximum range of 3,490 meters, he said.

How effective is a 60mm mortar?

The M224 60mm mortar replaced the older (WWII era) M2 and M19, 60mm Mortars. These weapons only possessed 2,200 yards of effective range. The M224 60mm mortar was designed to fire all types of the older ammunition, but its primary rounds are of the newer, longer-range type.

How were mortars used in Vietnam?

The mortar was fired manually using a “firing lever” trigger for direct fire at low angles of elevation. When the tube elevation exceeded 60 degrees, the projectile was dropped into the tube and fired when its ignition cartridge struck the firing pin.

Article first time published on

How much does a 60mm mortar weight?

TECHNICAL DATAComplete SystemCaliber2.4 in (60 mm)Weight46.5 lb (21.1 kg) Conventional Mode 18.0 lb (8.2 kg) Handheld ModeRange77 – 3,828 yd (70 – 3,500 m)

How many types of mortar bombs are there?

Mortars fall into three main groups: Light mortars (51-60 mm); Medium mortars (61-99 mm); and. Heavy mortars (100-120 mm+).

What is the purpose of a 60mm smoke white phosphorus WP round?

The M722 Smoke Cartridge is designed for use with the M224 60mm Mortar System and is used as a spotting/marking round. The steel projectile is loaded with bulk white phosphorus. The M722 is equipped with the M745 Point Detonating Fuze which functions in the Impact mode.

What mortars were used in ww2?

The M2 Mortar is a 60 millimeter smoothbore, muzzle-loading, high-angle-of-fire weapon used by U.S. forces in World War II, the Korean War, and the Vietnam War for light infantry support.

How are mortars aimed?

They are fired at targets which are close, as mortars do not have long range. It has a short barrel which fires the mortar bomb at a low speed high into the air to reach its target. … They are called an indirect fire weapon because the bomb drops onto the target from above, rather than being aimed straight at it.

How much does a 81mm mortar weight?

SpecificationsLength56 inches (142.24 centimeters)Weight (Mortar Assembly)35 pounds (15.89 kg)Weight (Bipod)26 pounds (11.80 kilograms)Weight (Baseplate)25.5 pounds (11.58 kilograms)

What is the max range of a 120mm mortar?

SpecificationsWEIGHT319 LBSMax Range7200 MetersMin Range200 MetersMax Rate of Fire16 rounds/min (first minute)

How much does a mortar round weight?

Each round weighs about 4 pounds. The 81-mm mortars, M29A1 and M252, are the current US medium mortars.

Do SEALs use mortars?

“In the event they find the need for mortars while deployed, they will be able to operate them themselves.” … However, SEALs do not have their own training areas to educate personnel in other-than-direct fire weapons such as the mortar systems, making the SEALs’ visit to the AITB a necessary one.

What size mortars Does the army use?

Modern mortars normally range in calibre from 60 mm (2.36 in) to 120 mm (4.72 in). However, both larger and smaller mortars have been produced. The modern mortar is a muzzle-loaded weapon and relatively simple to operate. It consists of a barrel into which the gunners drop a mortar round.

What is the range of mortars?

Mortars can engage targets at less than 70 meters to 9,000m from the firer’s position. Medium mortars (61-99 mm) can fire at ranges of 100 m to 5500 m, while heavy mortars (100-120 mm+) have a range of some 500 m to 9,000m.

How does a cannon shell work?

Modern high-explosive artillery shells consist of a shell casing, a propelling charge, and a bursting charge; the propelling charge is ignited by a primer at the base of the shell, and the bursting charge by a fuse in the nose. … Steel has generally supplanted brass for cartridge cases.

How does a modern cannon work?

Ordinary artillery guns work by loading an artillery shell, followed by a powder charge, into the gun’s breech. When the gun is fired, burning powder charges create huge amounts of pressure behind the shell. … The result is a shell with a smaller explosive charge but longer range.

When was the first cannon made?

The history of cannon spans several hundred years from the 12th century to modern times. The cannon first appeared in China sometime during the 12th and 13th centuries. It was most likely developed in parallel or as an evolution of an earlier gunpowder weapon called the fire lance.

How heavy is a mortar plate?

The M252 system weighs 91 lb (41 kg) completely assembled and is composed of the M253 Cannon (35 lb, 16 kg), M177 Mount (27 lb, 12 kg), M3A1 Baseplate (29 lb, 13 kg), and the M64A1 Sight Unit (2.5 lb, 1.1 kg).

How much is a military mortar?

That range and accuracy does come with a price tag. Each of the 35-pound GPS-guided rounds costs about $18,000 McPherson said, compared to about $2,000 for the non-precision rounds.

What was the most used gun in the Vietnam War?

The U.S.-made M-16 rifle was redesigned in 1966 to perform better in the wet, dirty conditions that prevailed in ground combat during the Vietnam War, and it became the weapon most commonly associated with U.S. troops in the conflict.

What was the most common sniper rifle used in Vietnam?

M40Used byUnited StatesWarsVietnam War Lebanese Civil War Invasion of Grenada Gulf War War in Afghanistan Iraq WarProduction historyDesignerRemington Arms

What sniper rifle did they use in Vietnam?

The sergeant primarily waged war in Vietnam with one of the new M40 sniper rifles, a modified version of the Model 700 Remington 7.62mm bolt-action rifle that was first introduced in 1966. The early Marine Corps M40s were equipped with Redfield 3-to-9-power scopes.

Can a mortar destroy a tank?

The 0.23-to-0.47-inch (5.8 to 11.9 mm) thick armor generally prevented penetration by small arms fire and shell fragments. However, even a near miss from field artillery or an impact from a mortar HE round could easily disable or destroy the tank: if the fuel tank was ruptured, it could incinerate the tank’s crew.

How much does a mortar tube cost?

1.75 inch Consumer Fiberglass Mortar with Plug Special Low Cost Price: $1.791.75 inch Consumer Fiberglass Mortar with Plug Price: $4.204 inch Professional Fiberglass Mortar with Plug Price: $9.995 inch Professional Fiberglass Mortar with Plug Price: $14.99
