Where are the evaporator coils

An evaporator coil is the part of an air conditioner or heat pump that absorbs the heat from the air in your house. It is located inside the air handler or attached to the furnace.

Where is the evaporator coil located at?

Inside the home, the evaporator coil, sometimes referred to as the cooling coil, is located on the air intake side of the fan coil or the outlet side of the furnace. Its job is to remove heat from indoor air so the blower fan can return cool, refreshing air to the home.

Is the evaporator coil in the condenser?

Evaporator Coils vs. Condenser Coils. The evaporator coil is the part of an air-conditioning system that removes heat and moisture from indoor air to cool it. The condenser coil takes that heat and releases it outside.

How do I access the AC evaporator coils in my house?

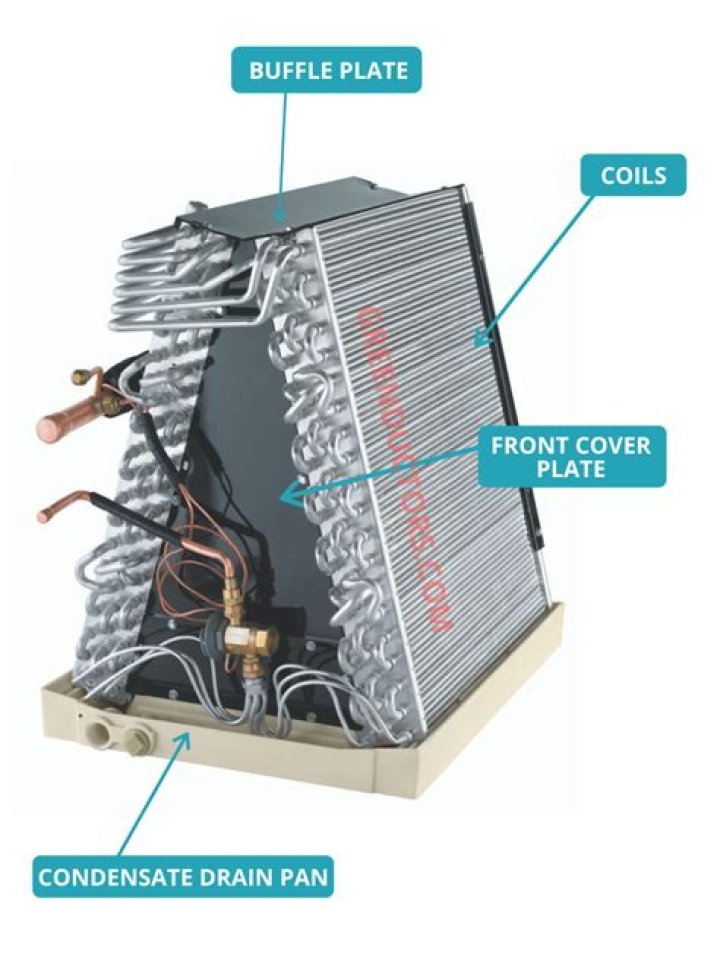

To access the coils, remove the evaporator coil access panel. To remove the access panel, remove the metal tape that seals the panel. Next, remove the screws that secure the access panel of the evaporator coil to the air handler. You’ll notice that the evaporator coil is organized into a frame having two sides.

How can you tell if an evaporator coil is bad?

1. Air coming from the vents is warm.
2. Air conditioner starts and stops frequently but doesn’t properly cool your home.
3. Air conditioner does not turn on.
4. Refrigerant leak near the indoor cooling system components.
5. Unusual noises from the cooling system, such as banging or hissing.

How do you clean an evaporator coil without removing it?

Use a compressed air canister. One of the best ways to get the dirt and other debris out is to use compressed air. Blow the air into the coil to loosen the dirt. If there’s stubborn dirt, though, you might need to put the nozzle close to the bottom of the debris, along its side.

How do you fix a frozen evaporator coil?

Give the Frozen Evaporator Coils Time to Thaw Left to its own devices, it could take up to 24 hours for the coils to thaw completely. You can speed this process up somewhat with the help of a hair dryer, especially if you need your A/C unit up and running as soon as possible.

How do I know if my evaporator coil is frozen?

1. Your AC is not cooling.
2. Ice is present around the outdoor refrigerant line.
3. Your evaporator coil has condensation and/or ice forming on it.
4. The condensate drain line is clogged.
5. The condensate drain pan is overflowing.

How often should evaporator coils be cleaned?

To minimize energy usage and reduce utility costs, the A/C coils should be cleaned at least once a year. It is estimated that dirty evaporator and condenser coils can increase the energy usage of your air conditioning system by over 30 percent.

Where are evaporator and condenser coils?

The evaporator coil is located within the plenum of the indoor portion of the cooling system, while the condenser coil is located within the outdoor portion. The evaporator coil doesn’t produce cold; instead, it takes away heat by absorbing the latent heat within the air using the refrigerant within the coils.

Article first time published on

Is cooling coil same as evaporator coil?

However, the difference between A/C evaporator and condenser coil is exactly reversed. While the evaporator coil picks up heat from indoor air, the condenser coil releases heat into outdoor air. … High-pressure liquid refrigerant leaving the condenser coil makes a u-turn and flows back to the evaporator coil.

Do all furnaces have evaporator coils?

They use the coil to distribute heat gathered outside. Not all furnaces have a coil. If the system does not include central air conditioning, there is no need for a coil. If AC is part of the system, the furnace will contain a coil.

Is it worth replacing evaporator coil?

Your AC is 8+ years (or older) The efficiency of an AC unit is at its best for the first 10 to 12 years of its life. That said, if your AC is nearing 8 years old, replacing just the evaporator coil would be like putting a brand new engine into a dying car—it’s just not worth the money.

What happens when evaporator goes bad?

Warning signs of bad A/C evaporators Weak airflow or warm air. Strange or sweet aroma. Compressor won’t activate. Or inconsistent air temperature.

How do you tell if your a coil is clogged?

1. Air Conditioning Loses Cooling Capacity. One thing that will be noticeable when the evaporator coil is dirty is that your AC won’t produce air that’s as cold as it should be. …
2. Air Conditioning Runs Longer. …
3. Coil Develops Frost During Operation. …
4. Have an HVAC Professional Clean Your Coils.

What causes evaporator coils to freeze?

One of the most common causes of a frozen evaporator coil is lack of system airflow. … If there isn’t enough air blowing over your evaporator coil, the coil won’t have enough heat to absorb. This will cause the condensation on the coil to freeze over. Dirty air filter.

What causes coils to freeze up?

AC coils freeze for a variety of reasons—the most common, though, is lack of airflow. Dirty air filters or problems with your duct work can cause weak airflow, which hinders your equipment and its ability to keep coils warm and running properly. Temperatures drop and the AC coils freeze.

What causes coils to freeze?

Coils freeze when the temperature in your evaporator coil drops too low. Moisture in the air freezes on contact, building up ice on the coil. This buildup blocks airflow and can cause your unit to fail completely.

Can I clean my AC coils yourself?

Mix a simple detergent and warm water in a spray bottle or garden sprayer. Spray the solution onto the evaporator coils and give it a few minutes to soak in and loosen the dirt and debris. Wipe away any loosened material with a soft brush or cloth and reapply as needed.

How much does an evaporator coil cost?

Residential AC Evaporator Coil Replacement Cost Replacing a home air conditioner’s evaporator coil costs $1,000 on average with a typical range of $600 to $2,000. About 40% of the bill comes from labor, or $400 to $1,000. Warranties range from five to 12 years and cover the price of materials.

How much does it cost to clean an evaporator coil?

HVAC Evaporator Coil Cleaning Cost Evaporator coil cleaning costs $100 to $400. It costs more just because it’s tough to access. You’ll find it housed inside the air handler near your furnace (or inside your ductwork if you only have AC).

What causes AC coils to get dirty?

Condenser coils get dirty in the process of cooling the refrigerant. Dirt from the air outside is absorbed into the outdoor cooling unit and begins to build up on the coils. … If the condenser coils become too coated with dust and dirt, they can no longer convert the hot refrigerant gas back into a liquid.

What happens when condenser coil is dirty?

If a condenser coil is dirty or fouled, its ability to reject heat is severely affected. Remember, the main function of the condenser is to condense the refrigerant vapor to liquid. … As more heat is taken away from the 100 percent saturated vapor, it will force the vapor to become a liquid, or to condense.

Does cleaning your AC coils help?

The simple addition of having your coils professionally cleaned to your proactive maintenance schedule will not only save you money, but will keep your system running longer and help keep everyone safe, healthy and more productive.

Where are the evaporator coils in a freezer?

The evaporator coils sit in the back of the freezer compartment of a refrigerator and look like a radiator. The back wall of the freezer is actually the cover of the evaporator coil and can easily be opened with a screwdriver.

Why is my AC not blowing out cold air?

If your central AC is not blowing cold air, the refrigerant may be the problem. The unit could be running low and need additional refrigerant added. The most likely cause of this is a leak. A leak not only keeps the AC unit from cooling properly, but also it can cause other issues within the home.

Why is my AC running but not blowing air?

If the AC unit is running, but there is no air through the vents, you are likely dealing with a fan capacitor that has reached the end of its life. Fan capacitors help get your HVAC system’s outdoor and indoor fan motors blowing and your compressor running.

How do I change an evaporator coil?

1. Park any remaining Freon in your air compressor. …
2. Cut off compressor. …
3. Cut tubing. …
4. Remove the old evaporator coil.
5. Install new evaporator coil. …
6. Braze the lines.

How long does it take to replace evaporator coil?

How long does it take to replace an evaporator coil? It takes around 2 to 3 hours to replace an evaporator coil.

How do you clean an evaporator coil on a furnace?

1. Remove the blower compartment panel.
2. Remove the panel to the evaporator.
3. Use soft cleaning towels to hand-clean the coil.
4. Use a soft brush to very gently clean the fins (they bend easily).
5. Wipe clean the blower compartment, fan and assembly.
6. Wipe clean the condensate pan.

What is an evaporator coil on a furnace?

The evaporator coil is the component in your AC system that absorbs the heat from the air inside your home. It is often either attached to your furnace or located on the inside of your air handler. It works with a condenser coil to complete the heat exchange process that produces cool air.
