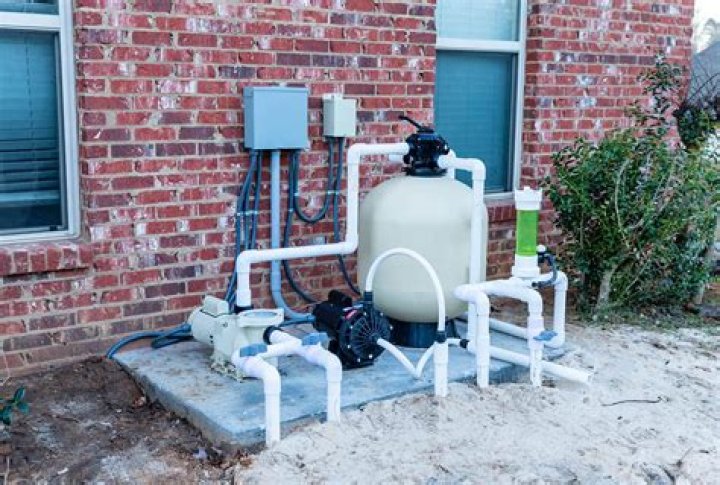

What voltage is my pool pump

Pool pumps are wired to run on either 230V or 115V. Most are run on 230V and are preset at the manufacturers at 230V. If you are going to wire your own pool pump, you must first know what voltage is coming to your pump from the house circuit breaker.

How do you tell if my pool pump is 110 or 220?

1. Examine the information label on the housing of your pump to find the correct power supply. …
2. Consult the user manual and packaging that came with your pump. …
3. Gather as much information about your pump as you can.

Is my pool pump 120 or 240?

Generally, any pump that pulls more than 115 amperes will require 220V wiring. This includes some dual-speed and nearly all variable-speed pumps. Pumps with an output of 1HP or less will usually be wired for 110V. These are usually single-speed pumps.

How do I know what voltage my pool pump is?

To measure voltage at the pump, place the meter’s probes on L1 and L2. These terminals are usually labeled on the motor. USE EXTREME CAUTION. These wires have 240V on them.

How do you tell if my pool pump is 115 or 230?

The voltage reading should be within 10% of the voltage. For example, if the voltmeter reads between 207 and 253 volts, then you know you have a 230V motor.

Is a pool pump AC or DC?

Pool pumps are now available in DC, which is a great way to lower your power bill. By utilizing the pump during daylight hours, it can run off solar panels whenever the sun shines. Bear in mind that pressure and submersible pumps are readily available in DC, as well as refrigerators, freezers and air conditioners.

What voltage are above ground pool pumps?

Consequently, in-ground pool pumps require 240 volts. You won’t be able to plug them into any old outlet on the inside or outside of your house. Above ground pool pumps, on the other hand, run on 120 volts. This means they could be plugged into a regular electrical outlet.

Are above ground pools 110 or 220?

Pump Motor Voltage Most above ground pools require a 110-volt pump. But you’ll need to determine what voltage you’re working with if you have an inground pool.

How do I know if my pool pump capacitor is bad?

On an analog meter the needle should move rapidly to right then slowly drift to the left. If a digital meter is used, readings should start low and rapidly increase to maximum value. If the needle or number starts at zero and doesn’t move, the capacitor is bad and therefore needs to be replaced.

Will a 230V pump run on 115v?

Starting a 230v motor on 115v will not harm the motor. However, supplying 230v to a 115v motor will cause it to burn up. The old pump started tripping the breaker after running about two years.

Article first time published on

What's the difference between 115V and 230V?

A 115-volt air conditioner plugs into virtually any standard household outlet. A 230-volt air conditioner uses a specialized outlet, much like the type that a clothes dryer uses.

What Does It Mean 115 230 volts?

A 115 volt circuit is wired with one hot wire that carries the current with one neutral and a ground wire; while 230 volt circuits are wired with two hot wires and a ground. The amp load is split between the two hot wires which provides the somewhat deceptive amp draw on the motor label.

What is 230V single phase?

Single Phase power is a two wire Alternating Current (AC) power circuit. Most people use it every day because it’s the most common household power circuit and powers their lights, TV, etc. … In some countries, 230V is the standard single phase voltage with one 230V power wire and one neutral wire.

Can I run an extension cord to my pool pump?

Using Extension Cords It’s highly recommended never to use an extension cord to power a pump of an above ground swimming pool. … A pool pump requires a great deal of power and that you can’t provide with a normal extension cord. You’d need one with a #12-gauge wire or a #10-gauge wire.

What size breaker do I need for pool pump?

A typical above ground pool pump will require a 20-amp breaker and use #12 gauge wire to deliver the electricity.

Should pool pump be GFCI?

–NEC requires GFCI protection for all pool pumps. A pool builder or electrician cannot install power to your pool pump per code without one. … -Moisture from rain, sprinklers, or runoff causes GFCI breakers to trip as well.

Can you wire a 220v motor for 110?

220v and 110v systems are compatible, they just need a voltage converter. … It is possible to use a 220v machine on a 110v line, however; all you need is a voltage converter.

What is a DC pool pump?

A solar-powered pool pump operates most efficiently on DC (Direct Current). … You waste a lot of energy, just in the process of converting solar energy to AC (Alternating Current). You waste even more power running a less efficient AC powered pump, this includes variable speed pumps.

How do you test a pump motor with a multimeter?

To test your motor for short to ground, you’ll need to set the multimeter to ohms and disconnect the motor from its power source. Then inspect each wire and look for infinite readings. Alternatively, if you get a reading of 0, you might have a cable issue.

How do I know if my motor is 110 or 220?

A black and red wire, two black wires, or a black and blue wire, or red and blue wire could indicate that it is wired for 220 V. But that color code system only applies in North America. In other words: a plain white wire (or colored wire marked with white tape) indicates a neutral, which means 110 Volts.

What happens when a run capacitor goes bad?

Run Capacitors A run capacitor is an energy-saving device that is in the motor circuit at all times. If a run capacitor fails, the motor can display a variety of problems including not starting, overheating, and vibrating. A bad run capacitor deprives the motor of the full voltage it needs to operate correctly.

How long should a pool pump capacitor last?

Another method to know whether or not a capacitor has gone bad is to think about how long it has been since it’s been replaced. Standard pool pump capacitors are only good for around 5000 starts before they go bad. That may seem like a lot of starts, but the get used up quite quickly.

Can you get electrocuted in an above ground pool?

You can get electrocuted in an above ground pool if you make contact with an electrical current while you are in the pool or while you are wet. The source of the electricity could be lighting, pumps, filters, vacuums or appliances such as radios, CD player or extension cords.

What happens if your pool pump is too big?

Too large of a pump can cause poor filter performance and even damage it, if the filter is not also oversized accordingly. Another possible consequence is pump cavitation in which bubbles form in the water inside the pump and then burst with great force, resulting in damage to the impeller and other internal parts.

Will a 230v motor run on 110v?

The only way to run a 230 volt motor on a 120 volt circuit is if the motor is a dual voltage motor. Some motors can be changed from 230 to 120 volts. If the motor is dual voltage the information will be on the model plate of the motor.

How do I get a 230 volt outlet?

Connect the neutral wire to the chrome neutral bus in the panel and the ground wire to the ground bus. Once all the wires are secure, snap the breaker into place. When fully seated, it contacts both hot legs of the panel, which makes the voltage in the circuit 240 (or 230) volts.

What size breaker do I need for a 220V pool pump?

Booster pumps for pool cleaners or solar systems can be operated with 110V or 220V, and are usually connected to a separate timeclock, powered with a dedicated 15 or 20 amp breaker. The wiring of the motor is identical to the wiring for the main pool pump.

What wire do I use for pool pump?

The one and only choice for a wire material for a pool pump is copper. Copper has a lower resistance than aluminum which is the other common wire choice. Copper’s low resistance lessens voltage drop. The higher the motor horsepower, the more electricity it requires.

Can you plug 115V into 120V?

You can plug into any standard outlet with no worries. U.S electricity providers must range between 110 to 120 volts A.C at 60hz. All appliances can operate at the minimum 110 volts.

Can I use 115V in 110V?

There is no real difference between 110V and 115V circuits. Outlets in your home are standardized to 120V, but due to a number of factors like line length and distance from the grid, you may only get 110V to 115V. In practice, this makes no real difference in how you can use the outlet.

Is 115 volts a regular plug?

Window units with standard, three-prong plugs may be used in regular household outlets, regardless of whether the air conditioner requires 110-, 115-, or 120-volt electricity. No special outlet is required. However, if the unit has a round plug, you may consider changing the wall outlet to match it.
