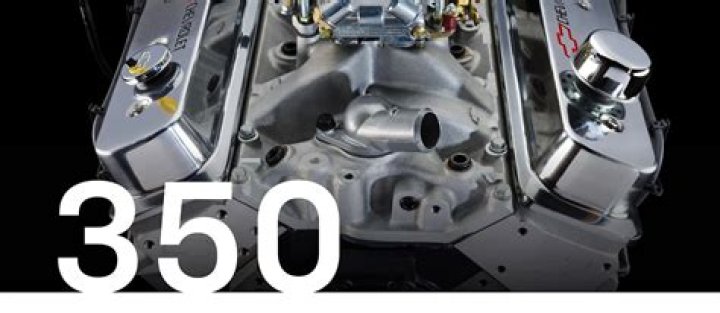

What should the ring gap be on a Chevy 350?

What should the ring gap be on a Chevy 350?

A normally aspirated 350 small-block Chevy with a 4.00-inch bore utilizing a 0.004-inch top-ring spec would only require a 0.016-inch top-ring endgap. But a normally aspirated 540ci big-block Chevy with a 4.50-inch bore would require a larger 0.018-inch top-ring endgap.

How much is the maximum acceptable clearance in piston rings?

Circumferential clearance at the ring joint is necessary to allow for thermal expansion, but should not allow excessive blow-by of gases. Butt clearance should be maintained within this range of 0.4 – 0.5 % of cylinder bore. Should be as small as possible (as per maker’s instruction), but should never close completely.

Where should piston ring gaps be placed?

Make sure the gaps of all of the rings are spaced 90 degrees apart from eachother. Be sure to use a quality ring compressor to prevent damage to the rings while installing the piston into the cylinder bore.

What happens if the piston ring gap is too wide?

Piston rings will expand when warm and you will set that end gap to take into account the thermal expansion and aim for best sealing once that engine is warm. Now, if the gap is too big, the engine will have too much crankcase pressure, have a ton of blow-by, burn oil, and lack proper cylinder sealant.

Do you need to Gap piston rings?

Setting the correct ring gap on aftermarket piston rings is crucial for proper performance and engine longevity. Because piston rings need to be expanded to fit over the diameter of the piston itself before they find their home in the ring grooves, they have to be split in some way in order to allow installation.

Does ring gap affect compression?

0035 = . 0 14 minimum gap. Maximum ring gap is an important part of ring performance in that too much gap results in lost compression, power loss, and ultimately poor oil control.

What is piston ring groove clearance?

Pistons are grooved to fit rings that seal the cylinder’s compression and allow for lubrication of the cylinder walls. Piston rings come in a set.
