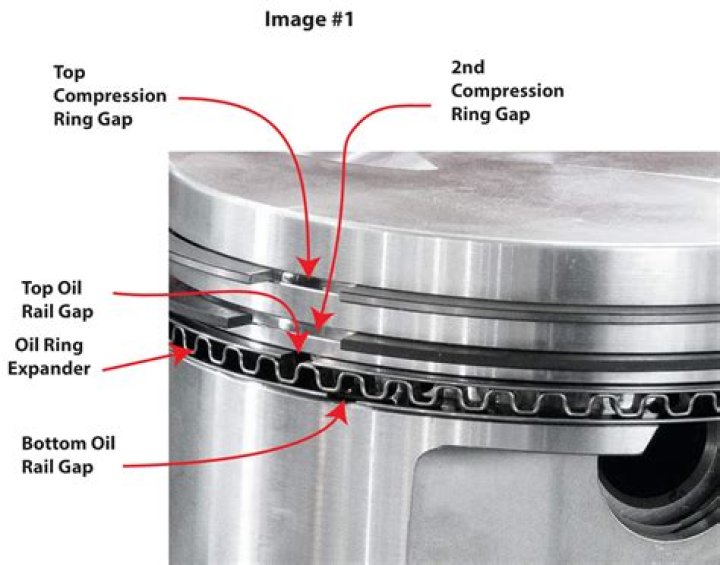

What should the piston ring gap be?

What should the piston ring gap be?

Most piston ring manufacturers recommend a minimum end gap of . 004 inches times the bore diameter for the top piston compression ring. So for a 4 inch bore, the standard end gap would be . 016 inches.

How much piston ring gap is too much?

Therefore, it is entirely possible for the ring to have . 061 end gap in that portion of the cylinder and be within recommended manufacturing tolerance. For this reason, Hastings recommends a MAXIMUM of . 003″ wear per inch of cylinder diameter, not to exceed .

How do you calculate piston ring gap?

For a street engine, multiplying your bore size by 0.004in will give you the top ring gap you are looking for. For high performance engines, the multiplier changes to add more clearance, but the math stays the same: Modified or Nitrous Oxide – 0.005in x 4.00in bore = 0.020 inch ring gap. High Performance Racing – .

What happens if piston ring gap is too big?

Piston rings will expand when warm and you will set that end gap to take into account the thermal expansion and aim for best sealing once that engine is warm. Now, if the gap is too big, the engine will have too much crankcase pressure, have a ton of blow-by, burn oil, and lack proper cylinder sealant.

What happens if piston ring gap is too small?

If the gap is too small, the ends of the ring may collide which can lead to the ring breaking, scoring the bore, and eventually lead to complete breakdown. However, piston rings can be made from a wide variety of irons and steels with very different coefficients of expansion.

Do you oil piston rings before installing?

JE recommends a light coat of assembly oil (Marvel Mystery Oil or similar) on the pistons’ skirt, rings and cylinder walls for initial installation and start up. Be sure to thoroughly lubricate wrist pins and piston pin bores with an assembly oil to prevent galling on initial fire-up.

Does the bevel on a piston ring go up or down?

The general rule is that bevels go down and dots/top marks go up. Note, that the word “TOP” does not mean that this is a top ring! But rather, that side of the ring should face the top of the engine.

Should you GAP oil rings?

The oil rings only needed to be checked to ensure they were greater than 0.015 inches. The oil scraper ring does not need to be gapped. Once you have all the rings gapped to the correct settings for their assigned cylinder bore, weigh the set and record the value.

What happens if piston rings are installed upside down?

With the taper of the ring upside down, oil will be scraped up with each upward stroke to be left in the combustion chamber and burned on the power stroke. It only takes a minute, check all rings on the piston for correct installation before installing the pistons.

What is the minimum gap required for a piston ring?

Minimum gap tolerances must be observed in order to prevent the ring ends from butting together as the ring expands when the engine approaches operating temperature. Hastings recommends a MINIMUM of .0035 gap per inch of cylinder diameter.

What is the recommended gap clearance for a compression ring?

Safe, Recommended Automotive Compression Ring Gap Clearances Ring Diameter End Clearance Inspection Limit 1 2.3624 0.006 0.014 2.3625 2.9524 0.008 0.016 2.9525 3.5424 0.01 0.02 3.5425 4.3299 0.012 0.022

How does cylinder wear affect the ring gap?

Checking ring gap in the worn portion of the cylinder will show a gap increase in direct relation to the amount of cylinder wear present. The illustration below shows the effect of cylinder wear on ring gap. This graphically illustrates the effect on ring gap that cylinder wear has.

How much wear is acceptable on a cylinder ring?

Therefore, it is entirely possible for the ring to have .061 end gap in that portion of the cylinder and be within recommended manufacturing tolerance. For this reason, Hastings recommends a MAXIMUM of .003″ wear per inch of cylinder diameter, not to exceed .012″ in any case for successful reringing.
