What is TMS320C6x?
Christopher Anderson
Published Mar 10, 2026
What is TMS320C6x?
TMS320C6x Optimizing C Compiler User’s Guide (literature number SPRU187) describes the ‘C6x C compiler. This C compiler accepts ANSI standard C source code and produces assembly language source code for the ‘C6x generation of devices.
What is TMS320C54x?
TMS320C54x 16-bit fixed-point DSP, 6 stage pipeline with in-order-execution of opcodes, parallel load/store on arithmetic operations, multiply accumulate and other DSP enhancements. Internal multi-port memory.
What is TMS320F2812?
Abstract. This paper presents the programming and use of TMS320F2812 digital signal processor (DSP) in generating the digital pulse width modulation (DPWM). The PWM generated by DSP from programming can be used to control and regulate power electronic converters.
What are the different addressing modes in TMS320C6x?
Data addressing modes enhance DSP implementation, DSP processors addressing modes are:
- • Immediate Addressing Mode.
- #imm: value represented by imm (fixed number such as filter coefficients is known ahead of time)
- A: accumulator register.
- • Register Addressing Mode.
- Reg: processor register provides operand.
What are the basic features of tms320c3x processor?
The ‘C3x generation integrates both system control and math-intensive functions on a single controller. This system integration allows fast, easy data movement and high-speed numeric processing performance.
What architecture does Texas Instruments use?
However, TIGA was not widely adopted. Instead, VESA and Super VGA became the de facto standard for PC graphics devices after the VGA. Texas Instrument’s TMS34010 and TMS34020 Graphics System Processors (GSP) were the original TIGA-compliant graphics processors….Texas Instruments Graphics Architecture.
| Cards | |
|---|---|
| Predecessor | VGA |
| Successor | VESA, Super VGA |
How many accumulators are there in TMS320C54x?
The TMS320C54x multiple buses, two accumulators, and special instruction hardware make this possible.
What is a DSP board?
DSP boards or digital signal processor computer boards are central to the implementation of high-performance industrial systems. They collect and process digital data from many sources, and distribute the results to other elements of the system. PCI is a local bus system designed for high-end computer systems.
What is TMS processor?
TMS 320C5X is an advanced fixed point DSP processor and is widely used for communication, multimedia and control applications. DSPs have on- chip multipliers, compute a pipelined running sum of products and perform data scaling, memory shifts and pointer incrementing in parallel with the other operations.
What is Mac unit DSP?
MAC unit is a fundamental block in the computing devices, especially Digital Signal Processor (DSP). MAC unit performs multiplication and accumulation process. Basic MAC unit consists of multiplier, adder, and accumulator. In the existing MAC unit model, multiplier is designed using modified Radix-2 booth multiplier.

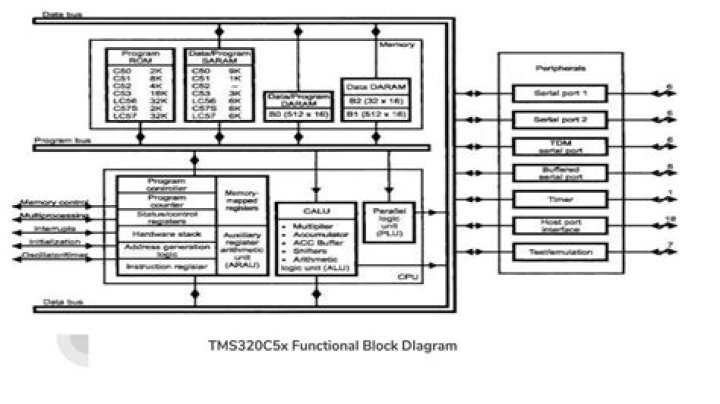

What are the different buses of TMS320C5X and their functions?
What are the different buses of TMS320C5X and their functions? reads and writes. ❖ Data read bus (DB): It interconnects various elements of the CPU to data memory space. ❖ Data read address bus (DAB): It provides the address to access the data memory space.
Does TI use ARM?
Texas Instruments Incorporated (TI) offers designers a wide range of differentiated products including embedded processors in the Stellaris® MCUs, based on the ARM Cortex-M3 core, and the Sitara™ microprocessors (MPUs), based on the ARM9 and Cortex-A8 cores. Scalability is the key to TI’s ARM strategy.
