What is thin film in physics?

What is thin film in physics?

Definition of thin film : a very thin layer of a substance on a supporting material especially : a coating (as of a semiconductor) that is deposited in a layer one atom or one molecule thick.

Which type of technology is used in thin film?

In the past, majority of thin-film PV cells are made by vacuum-based process. Solution processed thin-film PV cells are highly desirable because it can lower the cost of energy generation. Of most thin-film PV technologies, metal oxides have been acting as key functional layers within the PV cell structures.

What is thin film process?

Thin film deposition is the process of creating and depositing thin film coatings onto a substrate material. These coatings can be made of many different materials, from metals to oxides to compounds. There is no one-size-fits-all, perfect thin film deposition system or method.

What is thin film and its application?

Thin films are generally used to improve the surface properties of solids. Transmission, reflection, absorption, hardness, abrasion resistance, corrosion, permeation and electrical behaviour are only some of the properties of a bulk material surface that can be improved by using a thin film.

Why are thin films used?

Thin films are used for protecting the surface of many material, especially optical elements, from wear, scratches, fingerprints, and even from corrosion.

What is thin film engineer?

Thin Film Coating Engineer Designs new thin film coatings for production. The Thin Film Coating Engineer supports coating processes, including design of optical coatings, metrology and measurement and process development.

Which of the following process is involve in thick film technology?

Explanation: silk screening is one of the processes of thin film technology.

How are thin films formed?

In order to obtain thin films with good quality, there are two common deposition techniques: physical and chemical depositions. It can be summarized as shown in Table 1. Vacuum thermal evaporation. Electron beam evaporation.

Who invented thin films?

The earliest documented purposefully made inorganic thin films were gold layers produced chemo-mechanically, for decorative (and later, optical) applications, by the Egyptians during the middle bronze age, more than 5000 years ago.

Why thin films are important?

‘Thin’ is, of course, a relative layer, but in most cases, the techniques of thin film deposition are designed to produce layers which are only a few tens of nanometers thick. The thin film is important because it changes the surface interactions of the newly formed platform from the bulk substrate properties.

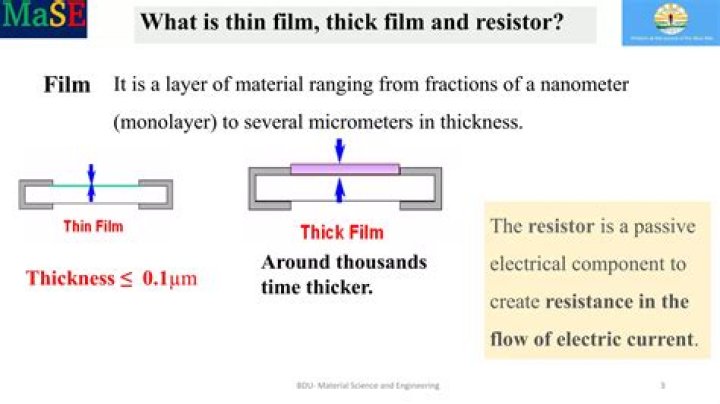

What is thick and thin film technology?

Thin film has a thickness in the order of 0.1 um (micrometer) or smaller, while thick film is thousands times thicker. However, the main difference is the method used to apply the resistive film onto the substrate. Thin film is more accurate, has a better temperature coefficient and is more stable.

What is deposition technology used for?

Thin film deposition is the act of applying a thin film on the surface of another material. It is used in the manufacturing of devices such as computers and thin film transistors. It also finds applications in the production of semiconductors as well as in simple everyday objects as a typical household mirror.
