What is the resonance frequency in Hz?

What is the resonance frequency in Hz?

The resonance frequency in Hz is 5033 Hz.

How do you find frequency from inductance?

f = 1 / (2 * π * √(L * C)) f – resonant frequency. L – circuit inductance.

How do you calculate spiral coil?

Formulas and math used in the spiral coil calculator

1. Outer diameter = inner diameter + ( 2 * number of turns * ( wire diameter + wire spacing))
2. Wire length = ((Pi * number of turns * (outer diameter + inner diameter)) / 2) / 1000.
3. Inductance.
4. Inductance = (radius^2 * number of turns^2) / (8 * radius + 11 * width)

How are Tesla coils calculated?

1. Formulas for Tesla Coils. v. 3.0.
2. Ohm’s Laws. V = I x R = P / I = SQRT(P x R)
3. Resonate Frequency. Fo = 1 / (2 x pi x SQRT(L x C))
4. Reactance. Xl = 2 x pi x F x L.
5. RMS. Vpeak = Vrms x SQRT(2) For sine waves only.
6. Energy. E = 1/2 x C x V^2 = 1/2 x L x I^2.
7. Power. P = E / t.
8. Helical Coil. Lh = (N x R)^2 / (9 x R + 10 x H)

What is the resonant frequency of a coil?

The self resonant frequency of an inductor is the frequency at which the parasitic capacitance of the inductor resonates with the ideal inductance of the inductor resulting in an extremely high impedance. At this frequency the device looks like an open circuit.

How do u find the frequency?

To calculate frequency, divide the number of times the event occurs by the length of time. Example: Anna divides the number of website clicks (236) by the length of time (one hour, or 60 minutes). She finds that she receives 3.9 clicks per minute.

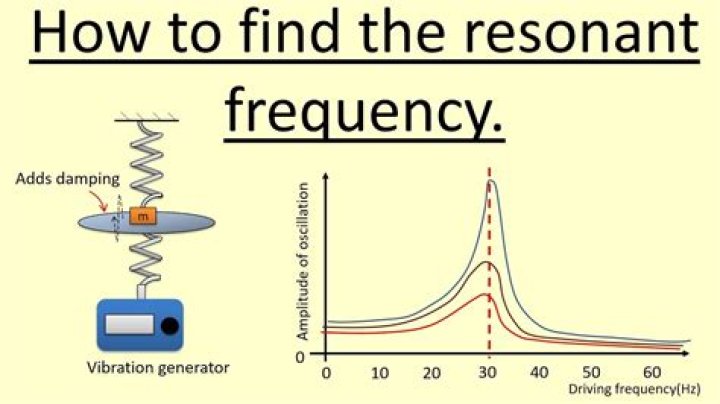

How do you calculate natural frequency?

Natural Frequency Calculator

1. Formula. f = sqrt ( k / m ) * 2*π
2. Spring Constant (N/m)
3. Mass of Spring (kg)

How do you calculate the length of a coil?

To obtain the coil length we have to divide the result by the section of the coil determined by coil width and thickness. The coefficient 1000 is used to compensate the dimensions in [mm] with the length in [m]. For example, a coil with OD = 1600mm, ID = 508mm and T = 0,6mm results in a length of 3010 meters.

How do you find the L of a solenoid?

L = µ₀ * N² * A/l , with the vacuum permeability µ₀ = 1.25664 * 10^-6 T*m/A . Using our Solenoid Inductance calculator you can easily find inductance of a solenoid for different configurations….We can describe a solenoid using three parameters:

1. number of turns N ,
2. length l ,
3. area of the cross-section A .

What is the coil resonant frequency calculator?

The Coil Resonant Frequency Calculator combines the features of the Coil Capacitance Calculator, the Coil Inductance Calculator, and the Resonant Frequency Calculator to calculate the resonant frequency of an air-core single-layer solenoid coil, or Tesla coil, from the coil length, diameter and number of turns.

Where can I find a technical explanation of Tesla coil operation?

Chris has written an outstanding paper offering a very detailed and technical explanation of Tesla coil operation. He also shares his experience constructing the “Zeus” Tesla coil. The paper is in pdf format. Tesla Coil Theory by Terry Blake

What is the height to width ratio of a Tesla coil?

The height to width ratio should be about 5:1 for small Tesla coils, 4:1 for average sized Tesla coils and about 3:1 for large Tesla coils.

Why is the actual frequency of a coil different than calculated?

The actual measured frequency in the real world may be slightly different than the calculated value because factors like the wire insulation, the coil frame, objects in the environment around the coil etc. all add to the burden or parasitic capacitance of the coil, which has the effect of bringing the resonant frequency of the coil down.
