What is the phase response of a filter?

What is the phase response of a filter?

In signal processing, phase response is the relationship between the phase of a sinusoidal input and the output signal passing through any device that accepts input and produces an output signal, such as an amplifier or a filter.

What are Bessel filters used for?

The Bessel filter (sometimes called the “Thomson” filter) is optimized to provide a constant group delay in the filter passband, while sacrificing sharpness in the magnitude response. Bessel filters are sometimes used in applications where a constant group delay is critical, such as in analog video signal processing.

What is frequency response of a filter?

Frequency Response of an amplifier or filter shows how the gain of the output responds to input signals at different frequencies.

Which filter gives better response?

Chebyshev filter, has the best approximation to the ideal response of any filter for a specified order and ripple. Butterworth filter, has a maximally flat frequency response. Bessel filter, has a maximally flat phase delay. Elliptic filter, has the steepest cutoff of any filter for a specified order and ripple.

What is meant by filter response?

From Wikipedia, the free encyclopedia. In signal processing, a finite impulse response (FIR) filter is a filter whose impulse response (or response to any finite length input) is of finite duration, because it settles to zero in finite time.

Why is there a phase shift in filters?

Filters, however, also induce changes in the phases of different frequencies whose amplitude is unmodulated. These phase shifts cause time lags in the filtered signals, leading to a disruption of the timing information between different frequencies within the same signal and between different signals.

What is a Bessel response?

In electronics and signal processing, a Bessel filter is a type of analog linear filter with a maximally flat group/phase delay (maximally linear phase response), which preserves the wave shape of filtered signals in the passband. Bessel filters are often used in audio crossover systems.

What is order of Bessel equation?

The general solution of Bessel’s equation of order n is a linear combination of J and Y, y(x)=AJn(x)+BYn(x).

What is linear phase FIR filter?

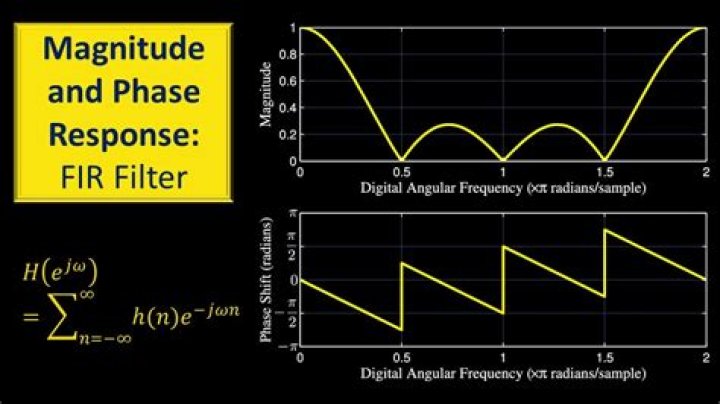

Linear phase is a property of a filter where the phase response of the filter is a linear function of frequency. For discrete-time signals, perfect linear phase is easily achieved with a finite impulse response (FIR) filter by having coefficients which are symmetric or anti-symmetric.

What is first order low pass filter?

First Order Low Pass Filter This first-order low pass active filter, consists simply of a passive RC filter stage providing a low frequency path to the input of a non-inverting operational amplifier. If a voltage gain greater than one is required we can use the following filter circuit.

What is a Bessel filter?

Also known as a Thomson filter, the analog Bessel filter has maximally flat group delay and maximally linear phase response, with very little ringing in the step response. [1] The Bessel is inherently an analog filter.

What is the Order of Bessel filter group delay response?

Bessel filter group delay response, order N = 2–8, shown for filters with a −3-dB cutoff frequency of 1 rad/s. Note that as the filter order increases, the flatness of the group delay response in the passband improves.

Why can’t I convert an analog Bessel filter to digital?

As the important characteristic of a Bessel filter is its maximally-flat group delay, and not the amplitude response, it is inappropriate to use the bilinear transform to convert the analog Bessel filter into a digital form (since this preserves the amplitude response but not the group delay).

What is the phase response of a low-pass filter?

Bessel low-pass filters have maximally flat group delay about 0 Hz [ 9 ], so the phase response is approximately linear in the passband, while at higher frequencies the linearity degrades, and the group delay drops to zero (see Fig. 1 and 2). This nonlinearity has minimal impact because it occurs primarily when the output level is low.
