What is the length of UDP header?

8 bytes

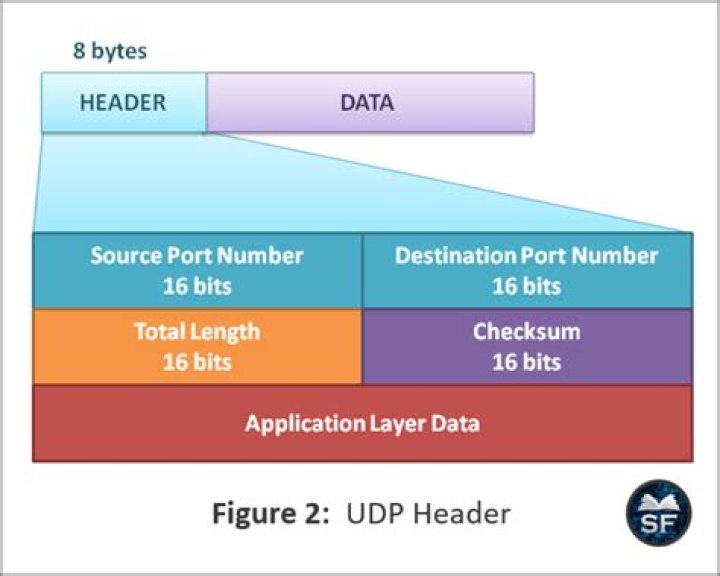

The UDP header has a fixed length of 8 bytes. Each of these 4 header fields is 2 bytes long.

Is the header size of UDP packet?

What is the header size of a UDP packet? Explanation: The fixed size of the UDP packet header is 8 bytes. It contains four two-byte fields: Source port address, Destination port address, Length of packet, and checksum.

What is the length of a UDP packet?

The number for the length of a UDP packet is 16 bits wide. This means it can be between 0 and 2^16 – 1, or 0 to 65535.

How is total length of UDP calculated?

The UDP header has four parts, each of two bytes. That means we get the following interpretation of the header. (a) Source port number = 063216 = 1586 (b) Destination port number = 000D16 = 13 (c) Total length = 001C16 = 28 bytes (d) Since the header is 8 bytes the data length is 28 – 8 = 20 bytes.

How is TCP header length calculated?

The TCP header (even one including options) is an integral number of 32 bits long. So 1000 means that the header consists of 8 x 32-bit words, which means 8 x 4 bytes = 32 bytes.

How is UDP length calculated?

The IP datagram contains its total length in bytes (Figure 3.1), so the length of the UDP datagram is this total length minus the length of the IP header (which is specified by the header length field in Figure 3.1).

How long is TCP header?

20 bytes
TCP wraps each data packet with a header containing 10 mandatory fields totaling 20 bytes (or octets). Each header holds information about the connection and the current data being sent.

How do you calculate header length?

minimum value of header length is 20 Bytes but we don’t have sufficient bits to represent 20 so we use scaling technique, i.e. 0101 (5) will represent 4 X 5 = 20 Bytes, here scaling factor is 4. maximum value possible with 4 bits is 15. So maximum header length possible is 4 X 15 = 60 Bytes.

What is TCP header size?

TCP wraps each data packet with a header containing 10 mandatory fields totaling 20 bytes (or octets). Each header holds information about the connection and the current data being sent.

How do I calculate pipe header size?

For a street/strip or race application, a good rule of thumb is to multiply the primary pipe diameter by 1.8 and then select the nearest available pipe size.

What is total length in IP header?

Total Length – Specifies the length of the IP packet that includes the IP header and the user data. The length field is 2 bytes, so the maximum size of an IP packet is 216 – 1 or 65,535 bytes.
