What is the inside diameter of PVC pipe?

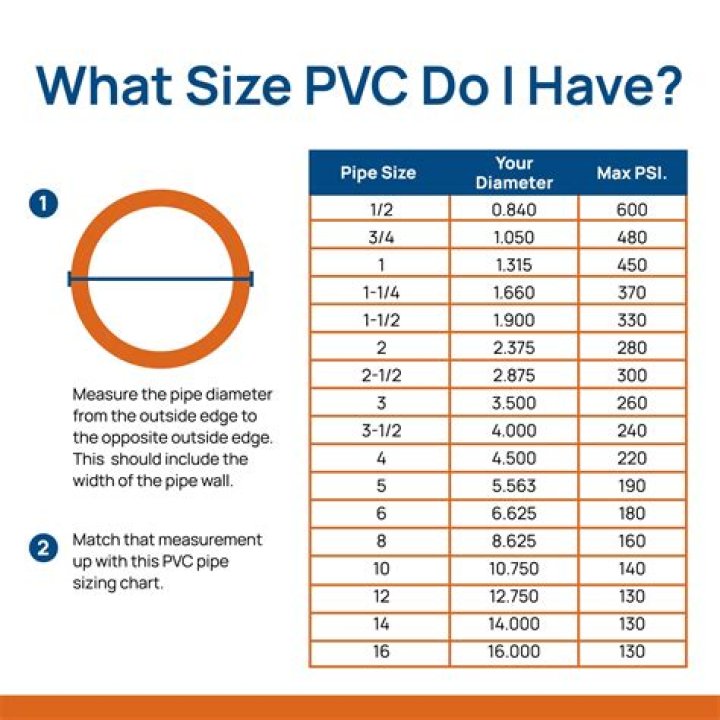

For regular schedule 40 PVC pipe, the title 1″, for instance, means that the inner diameter (ID) is 1″. The pipe walls themselves have a thickness, though. The OD of 1″ PVC pipe is 1.315″.

Does PVC fit copper?

You can connect PVC or CPVC to copper in several ways. One common method is to solder a female threaded fitting onto the copper pipe, screw in a male threaded plastic fitting and finish up by gluing plastic pipe to the plastic fitting. The best and most safe option is to use a copper-to-plastic adapter.

Is PVC conduit measured ID or OD?

Inside Diameter
PVC Pipe is identified by the Inside Diameter (ID) of the pipe. This measurement is known as ‘Nominal’ which means in-name-only, or a referenced name.

What is Dr 18 PVC?

DR18 pipe shall have a pressure class of 1,620 kPa (235 psi). DR14 pipe shall have a pressure class of 2,100 kPa (305 psi). Material. Blue Brute pipe shall be made from clean, 12454 PVC compound, conforming to ASTM resin specification D1784.

Is PVC diameter inside or outside?

PVC Pipe sizes are so named by the measurement of the inside diameter (also called the bore) of the PVC pipe, and not the outside diameter. If you measure the outside diameter it will give you a larger reading than the actual PVC Pipe Size.

Is pipe diameter inside or outside?

In short: Tube is measured by outside diameter, pipe is measured by inside diameter. There is often confusion as to which size die the customer actually needs – Pipe Size or Tubing Size. Keep in mind that pipe size refers to a nominal – not actual – inside pipe diameter. Schedule refers to the pipe’s wall thickness.

How do you connect PVC to copper pipe without welding?

A compression fitting is the best way to connect PVC to the copper pipe without welding. Another option is a push-fit fitting, also called a shark bite fitting.

Is PVC pipe diameter inside or outside?

PVC pipe sizes are nominal, so for most pipe sizes the pipe is neither the outside nor the inside diameter. PVC pipe is socket fittings (schedule 40) and socket or threaded fittings (schedule 80). All socket fittings are designed to go on the outside of the pipe, not the inside.

What does Dr 18 mean?

Dimension Ratio
Dimension Ratio The pipe DR is defined to be the ratio of the pipe outside diameter to the pipe minimum wall thickness. For example, a DR 18 C900 pipe would have an outside diameter equal to 18 times its wall thickness.

What does Dr mean in piping?

dimension ratio
The terms “dimension ratio” and “standard dimension ratio” are widely used in the PVC pipe industry. The term DR became widely used, in 1975, with the publication of AWWA C900, which governs production of small diameter PVC pressure pipe. AWWA allowed the desired pressure capacity to dictate wall thickness.
