What is the formula for two resistors in parallel

Ohm’s Law is is V = IR, where V is the voltage, I the current and R the resistance. Use Ohm’s Law to add parallel resistors. The equation is 1/R(Total) = 1/R1 + 1/R2 + 1/R3 + … + 1/R(Last).

What is the formula for resistor in parallel?

“You can find TOTAL RESISTANCE in a Parallel circuit with the following formula: 1/Rt = 1/R1 + 1/R2 + 1/R3 + ... ” … We will use a parallel circuit with 3 paths as an example (it could be 2, 4 or a 1000 resistors in parallel).

How do you calculate resistors?

To calculate the total overall resistance of a number of resistors connected in this way you add up the individual resistances. This is done using the following formula: Rtotal = R1 + R2 +R3 and so on. Example: To calculate the total resistance for these three resistors in series.

How do you find the resistance of two resistors in parallel?

Parallel Resistor Equation If the two resistances or impedances in parallel are equal and of the same value, then the total or equivalent resistance, RT is equal to half the value of one resistor. That is equal to R/2 and for three equal resistors in parallel, R/3, etc.

What is the resistance of 2 resistors in series?

The total resistance R of two or more resistors connected in series is the sum of the individual resistances of the resistors.

What is a resistor in a parallel circuit?

Resistors are in parallel if their terminals are connected to the same two nodes. The equivalent overall resistance is smaller than the smallest parallel resistor.

How do you solve combined parallel and series circuits?

1. To analyze a series-parallel combination circuit, follow these steps:
2. Reduce the original circuit to a single equivalent resistor, re-drawing the circuit in each step of reduction as simple series and simple parallel parts are reduced to single, equivalent resistors.
3. Solve for total resistance.

What is the formula for total current in a parallel circuit?

Total current in a parallel circuit is the sum of the individual branch currents. This relationship in a parallel circuit is expressed as: IT = I1 + I2 + I3… Whenever more resistances are connected in parallel, they have the effect of reducing the overall circuit resistance.

What is an example of a parallel equation?

Example. In the example below, the blue line, y=0.5x−2, has been moved upwards by 7 units, to get the green line y=0.5x+5. The two lines are parallel: they have the same slope, 0.5, but the y-intercept has changed by +7 units, from −2 to +5.

What is resistance in series and parallel?

In a series circuit, the output current of the first resistor flows into the input of the second resistor; therefore, the current is the same in each resistor. In a parallel circuit, all of the resistor leads on one side of the resistors are connected together and all the leads on the other side are connected together.

Article first time published on

How do you find the resistance of a resistor?

Your units are ohms for resistance, volts for voltage, and amps for current. This formula tells you that your resistance is always equal to your voltage divided by the current. You can also say that your voltage is equal to your current multiplied by your resistance, or V = IR in equation form, with R = V / I.

What is meant by parallel connection of resistors derive equation of parallel resistance?

In parallel combination, each resistor’sone is connected to the positive terminal while the other end is connected to a negative terminal. The potential difference across each resistance is the same and the current passing through them is different. V = V1 =V2=V3. I = I1+ I2+I3.

How do you find the equivalent resistance in series and parallel?

Series combinationParallel combinationEquivalent resistanceRS=R1+R2+R3+…=N∑i=1Ri1RP=1R1+1R2+1R3+…

How are lines KL and MN related?

How are lines KL and MN related? … The lines are parallel.

What equation is parallel to Y?

Hence, the equation of a straight line parallel to y-axis at a distance a from it is x = a. The equation of y-axis is x = 0, since, y-axis is a parallel to itself at a distance 0 from it.

What are resistors in parallel 10?

When resistors are connected in parallel to each other,the potential difference across each resistor is equal to potential difference across parallel combination. Total current through a parallel combination is equal to the sum of current through each resistor of combination.

What is the combination of resistor?

1. If different resistances are joined with each other such that there is only one path for the flow of electric current then the combination of such resistances is called Series Combination. 2. … Equivalent resistance of circuit is equal to the sum of individual resistances.

How the formula of resistors in series and in parallel are derived?

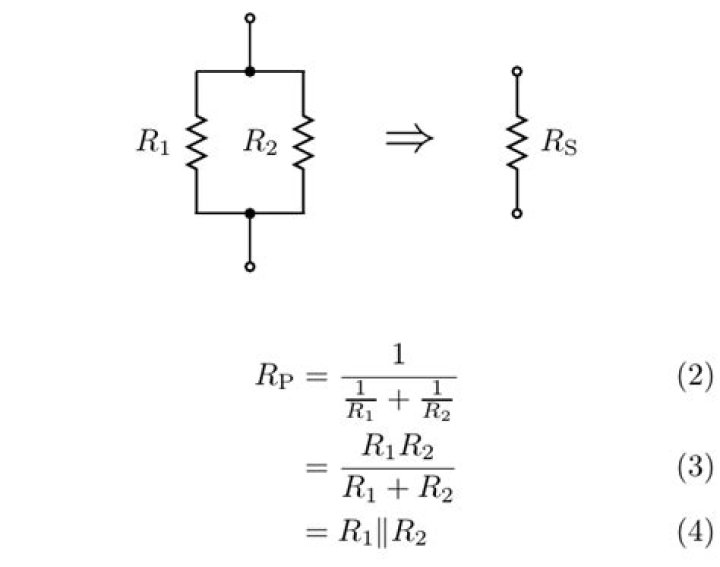

Rtotal = R1R2 / (R1 + R2) So for two resistors in parallel, the combined resistance is the product of the individual resistances divided by the sum of the resistances. Formula for two resistors connected in parallel.

What is the formula for the combination of resistance when they are combined in series and parallel?

Ohm’s law states that V = I R. Thus I =V / R and R = V / I. There are two types of circuits, series and parallel.

What must be the same for two resistors that are connected in parallel?

When two resistors are connected in parallel, the voltage across both resistors is the same. … The voltages across each resisor E1 and E2 must be equal because they are both connected directly to the battery: E1 = E2 = E where E is the battery voltage.
