What is the flux density of magnetic field?

What is the flux density of magnetic field?

The magnetic flux density or magnetic induction is the number of lines of force passing through a unit area of material, B. The unit of magnetic induction is the tesla (T).

Is magnetic flux density same as magnetic field?

In literature, the terms “magnetic field”, “magnetic flux” and “flux density” are often used as synonyms. This is not correct because they are different physical values, but they are closely linked.

What is the relation between magnetic field and magnetic flux density?

Magnetic field strength (H) is nothing but amount of magnetising force. This magnetising force is directly proportional to current carried by the conductor and length of conductor. Magnetic flux density (B) is nothing but amount of magnetic force induced on the given body due to the magnetising force H.

What is the relation between electric flux density and electric field?

The electric flux density D=ϵE, having units of C/m2, is a description of the electric field in terms of flux, as opposed to force or change in electric potential.

What is electric flux density?

Scientific definitions for electric flux density electric flux density. A measure of the strength of an electric field generated by a free electric charge, corresponding to the number of electric lines of force passing through a given area.

How is magnetic flux density measured?

Assuming the magnetic field distributed uniformly inside the rod, then we can calculate the magnetic flux density B by dividing the total magnetic flux by the cross sectional area of the rod.

What is the difference between magnetic flux and electric flux?

The total electric flux through a surface in an electric field may be the surface integarl of the electric field over that surface. Electric flux is a scalar quantity. MAGNETIC FLUX – The magnetic lines of force passing normally through a surface is defined as magnetic flux.

What is magnetic flux density formula?

Magnetic Flux Density is amount of magnetic flux through unit area taken perpendicular to direction of magnetic flux. Flux Density (B) is related to Magnetic Field (H) by B=μH. It is measured in Webers per square meter equivalent to Teslas [T].

What is electric flux and flux density explain?

electric flux density in Electrical Engineering Electric flux density is the amount of flux passing through a defined area that is perpendicular to the direction of the flux. Electric flux density is electric flux passing through a unit area perpendicular to the direction of the flux.

What is magnetic flux density simple definition?

magnetic flux density. A vector quantity measuring the strength and direction of the magnetic field around a magnet or an electric current. Magnetic flux density is equal to magnetic field strength times the magnetic permeability in the region in which the field exists.

What is electric flux density class 12?

Electric flux density measures the strength of an electric field produced by a free electric charge, corresponding to the amount of electric lines of force moving through a given area. Electric flux density is the quantity of flux crossing through a defined area perpendicular to the flux’s direction.

How is electric flux density calculated?

What is the electric flux density on the surface of the cylinder? Gauss’ equation is: QT, the total charge enclosed, = q coulombs per meter x L meters. = QT = D x 2pr x L .

How do you calculate magnetic flux?

First,determine the magnetic field. Measure the strength of the magnetic field.

How do you calculate flux density?

The following formula expresses the flux density: Where Φ is the flux and A is the cross-sectional area in square meters (m2) of the magnetic field. The Gauss. Although the Tesla (T) is the SI unit for the unit for flux density, another unit is called the gauss, from the CGS (centimeter-gram-second) system, is sometimes used (104 gauss = 1 T).

What unit is used to measure magnetic flux density?

Tesla (unit) The tesla (symbol T) is a derived unit of the magnetic field strength (also, magnetic flux density) in the International System of Units. One tesla is equal to one weber per square metre. The unit was announced during the General Conference on Weights and Measures in 1960 and is named in honour of Nikola Tesla,…

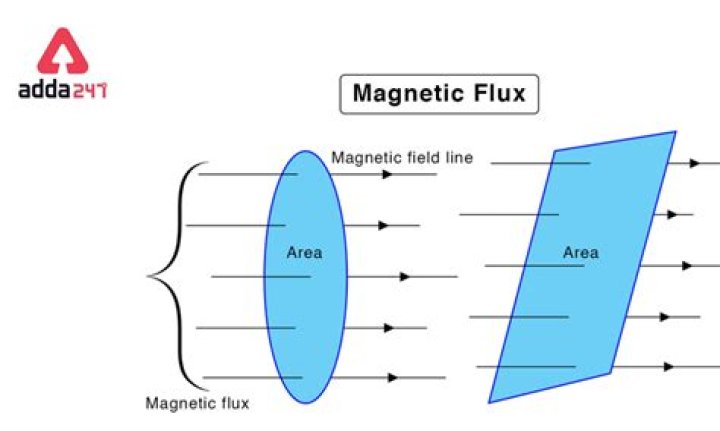

What is the formula for magnetic flux?

The value of magnetic flux is a vector quantity and it depends on the direction of the magnetic field. The magnetic flux formula is given by, Where, B = magnetic field, A = surface area and. Θ = angle between the normal to the surface and magnetic field.
