What is the difference between PCI-X and PCIe?

What is the difference between PCI-X and PCIe?

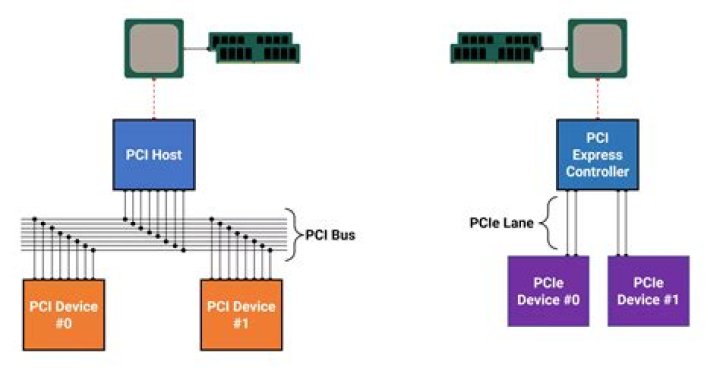

The first is that PCI-X is a 64-bit parallel interface that is backward compatible with 32-bit PCI devices. PCIe is a serial point-to-point connection with a different physical interface that was designed to supersede both PCI and PCI-X. PCIe also matches PCI-X and even PCI-X 2.0 in maximum bandwidth.

Is PCI-X compatible with PCIe?

The answer is no. PCIe card and PCI/PCI-X cards are not compatible with each other due to their different configurations. In most cases, there are both PCI and PCIe slots on the motherboard, so please fit the card into its matching slot and do not misuse the two types.

What is X in PCIe?

The number after the x tells you how many lanes (how data travels to and from the PCIe card) that PCIe slot has. A PCIe x1 slot has one lane and can move data at one bit per cycle. A PCIe x2 slot has two lanes and can move data at two bits per cycle (and so on).

Is PCIe and PCI Express the same?

PCI Express, also abbreviated as PCIe, refers to the peripheral component interconnect express. As the successor of PCI, PCI Express is also a type of connection standard carried out by Intel in 2001, which provides more bandwidth and is more compatible with existing operating systems than PCI.

Is AGP better than PCIe?

The benefit of PCI Express is that it can handle a greater data throughput than an AGP slot. PCI Express offers performance of up to 4 times faster than the fastest AGP slot. Another advantage of PCI Express is you can connect more than one video card to your computer for extra performance.

Is PCI Express 3.0 compatible with PCI Express x16?

Typically they will all be PCI Express, but for a graphics card you need a PCI Express x16 slot. There are three versions of this slot, but they’re backwards compatible, so a modern PCI Express 3.0 graphics card will work in a motherboard with a PCI Express x16 2.0 slot. This motherboard has two PCI Express x16 slots.

Is PCI Express 2.0 the same as x16?

The slot format used by both PCI Express 1.1 and PCI Express 2.0 is the x16 PCIe slot. However, PCI Express 2.0 slots are subjected to sustain up to a maximum of 150 watts, and PCI Express 1.1 slots can sustain only 75 watts, which is exactly half of the PCIe 2.0 slot’s capability.

How can you tell the difference between PCI and PCIe slots?

1. PCIe is much faster compared to PCI.
2. PCIe uses a serial interface while PCI uses a parallel interface.
3. PCIe speed is classified into lanes, each capable of delivering up to 1GB/s data transfer.
4. PCI slots are standardized while PCIe slots vary depending on the number of lanes the slot is intended for.

Why did PCIe replace PCI?

although both PCI and PCIe are buses and functions of them are partially the same, PCIe is different from PCI. PCIe is faster and it can be used to connect devices like graphics card that PCI can’t support nowadays. In addition, PCI interface and PCIe interface are not compatible with each other.

Which PCI slot is the fastest?

PCIe 4.0 is twice as fast as PCIe 3.0. PCIe 4.0 has a 16 GT/s data rate, compared to its predecessor’s 8 GT/s. In addition, each PCIe 4.0 lane configuration supports double the bandwidth of PCIe 3.0, maxing out at 32 GB/s in a 16-lane slot, or 64 GB/s with bidirectional travel considered.

Is PCI obsolete?

PCI and PCI-X have become obsolete for most purposes; however in 2020 they are still common on modern desktops for the purposes of backward compatibility and the low relative cost to produce.

What is the difference between PCI and PCI Express?

Difference Between PCI and PCI Express. 2. PCIe uses a serial interface while PCI uses a parallel interface. 3. PCIe speed is classified into lanes, each capable of delivering up to 1GB/s data transfer. 4. PCI slots are standardized while PCIe slots vary depending on the number of lanes the slot is intended for.

Is PCIe the same as PCI Express?

PCIe is in fact the official abbreviation for PCI Express. The difference is in how many lanes it uses, even though the connector is smaller it just means the device doesn’t require as many lanes. You should still be able to attach the device into the PCIe port and it should function just fine.

Are PCI and PCI Express the same thing?

Just to be clear, PCI and PCI Express are not the same thing, and that setting is for the old plain PCI standard. PCI is mainly a legacy bus these days, and many modern motherboards don’t even include it anymore. Its PCI Express 3.0 card.The motherboard slots are PCI Express Gen 3: It won’t have any effect then.

How does PCI Express different than PCI?

PCI was introduced first in 1992,and PCI was introduced 11 years later in 2003.
