What is the difference between 64 QAM and 256 QAM?

What is the difference between 64 QAM and 256 QAM?

Even 256 QAM provides more bandwidth than 64 QAM. A 64 QAM provides 38 Mbps bandwidth for stream while 256 QAM provides more than that. QAM is higher order form of modulation so it can carry more information.

What is the symbol rate of 256 QAM?

8 bits per symbol
256-QAM conveys 8 bits per symbol (as 256 = 28), so achieving twice the data rate of 16-QAM for the same symbol rate.

Is 256 QAM good?

As one might expect, 256-QAM is better than 64-QAM and 64-QAM is better than 16-QAM because the higher QAM numerology reflects the ability to represent more data with the same number of symbols. Combined with 4×4 MIMO, 256 QAM delivers download speeds up to 400 Mbps, he said ina blog.

Is QAM susceptible to noise?

For example, QAM is more susceptible to noise. This is because the transmission states are close together and a lower level of noise is required to move the signal from one point to another. Unlike QAM systems, receivers equipped with phase or frequency modulation can limit amplifiers and remove any amplitude noise.

Can we say that 256 QAM is better than 4 PSK?

The primitive difference between the QAM and QPSK is that the spectral width of QAM is narrower than the QPSK. Furthermore, the BER (Bit Error Rate) of the QAM is higher than the QPSK….Comparison Chart.

Does LTE support 256 QAM?

LTE Advanced – CoMP | ShareTechnote. From Rel 12, 3GPP defines (support) 256 QAM in Downlink. Even though we need to implement this kind of higher modulation, we would not be allowed to increase downlink power for better resolution in constellation and for good enough SNR etc.

Can we say that 256-QAM is better than 4 PSK?

What does 256-QAM mean?

quadrature amplitude modulation
A variation on the quadrature amplitude modulation (QAM) signal modulation scheme. 256-QAM yields 256 possible signal combinations, with each symbol representing eight bits (2 8 = 256). The yield of this complex modulation scheme is that the transmission rate is eight times the signaling rate.

Which bandwidth is more efficient?

4. Which is more bandwidth efficient? Explanation: Time hopping spread spectrum is more bandwidth efficient.

Which modulation requires highest transmission bandwidth?

Explanation: BPSK requires more bandwidth than the other modulation techniques for the given level of spectral density.

Is 16 PSK better than 16 QAM?

Comparing both, . The distance between the constellation points fo 16QAM modulation is around 1.6x the value for 16PSK modulation. This implies that for the same symbol error rate, 16QAM modulation requires only 4.19dB lesser signal to noise ratio , when compared with 16PSK modulation.

Which is better PSK or QAM?

The results show that PSK modulation for 16 constellations and below are better than QAM because PSK is not affected by amplitude distortions that may hit the signal through the channel.

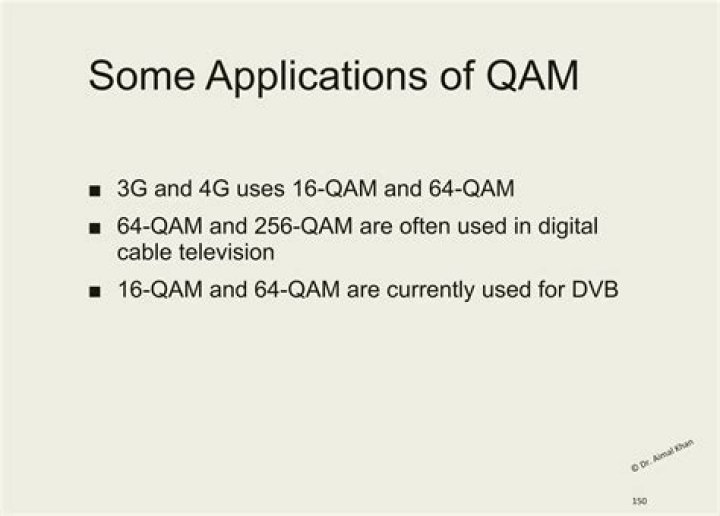

What is 256 QAM modulation used for?

In the US, 64 QAM and 256 QAM are the mandated modulation schemes for digital cable as standardised by the SCTE in the standard ANSI/SCTE 07 2000. In addition to this, variants of QAM are also used for many wireless and cellular technology applications.

What is QAM in digital radio?

QAM, Quadrature amplitude modulation is widely used in many digital data radio communications and data communications applications. A variety of forms of QAM are available and some of the more common forms include 16 , 32 , 64 , 128 and 256 QAM.

What are the different forms of QAM?

A variety of forms of QAM are available and some of the more common forms include 16 , 32 , 64 , 128 and 256 QAM. Here the figures refer to the number of points on the constellation, i.e. the number of distinct states that can exist.

What are the advantages and disadvantages of QAM?

The advantage of using QAM is that it is a higher order form of modulation and as a result it is able to carry more bits of information per symbol. By selecting a higher order format of QAM, the data rate of a link can be increased.
