What is the application of TEM microscope?

What is the application of TEM microscope?

TEM Applications The main application of a transmission electron microscope is to provide high magnification images of the internal structure of a sample. Being able to obtain an internal image of a sample opens new possibilities for what sort of information can be gathered from it.

What are the principles of electron microscope?

An electron microscope uses an ‘electron beam’ to produce the image of the object and magnification is obtained by ‘electromagnetic fields’; unlike light or optical microscopes, in which ‘light waves’ are used to produce the image and magnification is obtained by a system of ‘optical lenses’.

What is the principle of SEM?

The Scanning electron microscope works on the principle of applying kinetic energy to produce signals on the interaction of the electrons. These electrons are secondary electrons, backscattered electrons, and diffracted backscattered electrons which are used to view crystallized elements and photons.

What is a transmission electron microscope used for?

The transmission electron microscope is used to view thin specimens (tissue sections, molecules, etc) through which electrons can pass generating a projection image. The TEM is analogous in many ways to the conventional (compound) light microscope.

What are the advantages of using a transmission electron microscope?

The advantage of the transmission electron microscope is that it magnifies specimens to a much higher degree than an optical microscope. Magnification of 10,000 times or more is possible, which allows scientists to see extremely small structures.

What is the working principle of transmission electron microscope?

Working principle of Transmission Electron Microscope In EM when electron beams cross through a specimen, the electron particles are started to scatter. The electromagnetic lens on EM focusses the scatter electron on a screen and creates an image of the specimen.

What are the characteristics of a transmission electron microscope?

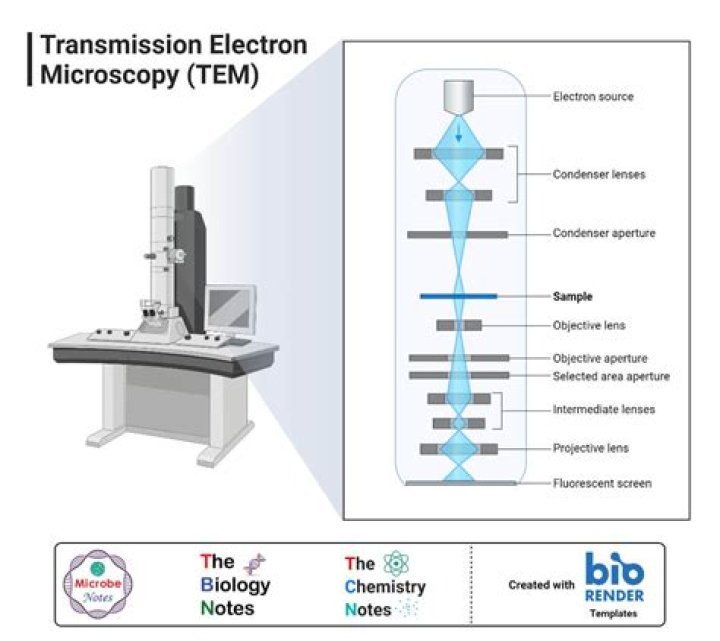

transmission electron microscope (TEM), type of electron microscope that has three essential systems: (1) an electron gun, which produces the electron beam, and the condenser system, which focuses the beam onto the object, (2) the image-producing system, consisting of the objective lens, movable specimen stage, and …

Where are transmission electron microscopes used?

Transmission electron microscopy is a major analytical method in the physical, chemical and biological sciences. TEMs find application in cancer research, virology, and materials science as well as pollution, nanotechnology and semiconductor research, but also in other fields such as paleontology and palynology.

What are the advantages and disadvantages of a transmission microscope?

iv) TEMs provide the highest magnification in microscope field. v) TEMs can provide information about surface features, shape, size and structure. However, TEMs also present some disadvantages: i) The instruments are very large and expensive.

What are the advantages of transmission electron microscope?

What is the resolution of transmission electron microscope?

The limit of resolution of a TEM is now less than 1 nm. The TEM has revealed structures in cells that are not visible with the light microscope. SEMs are often used at lower magnifications (up to ×30,000). The limit of resolution of a SEM is lower than that of a TEM (approximately 50 nm).

What are the advantages of a transmission electron microscope?

TEMs offer the most powerful magnification, potentially over one million times or more. TEMs have a wide-range of applications and can be utilized in a variety of different scientific, educational and industrial fields. TEMs provide information on element and compound structure. Images are high-quality and detailed.
