What is SolarEdge Power Optimizer?

What is SolarEdge Power Optimizer?

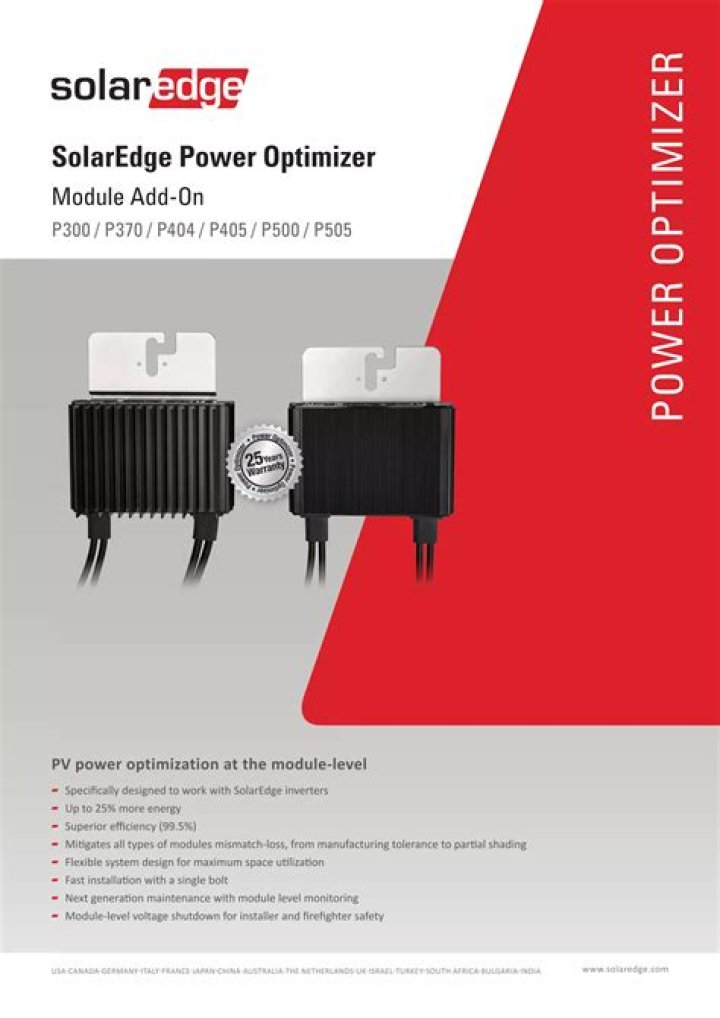

The SolarEdge Power Optimizer is a DC/DC converter which is connected by installers to each solar module, turning them into smart modules. The SolarEdge Power Optimizers increase energy output from PV systems by constantly tracking the maximum power point (MPPT) of each module individually.

Is it necessary to use a SolarEdge power optimizer with a SolarEdge inverter?

Do I have to use power optimizers with a SolarEdge inverter? Yes, for all SolarEdge inverters (Single-Phase, HD Wave, StorEdge, and Three Phase.), power optimizers must be used in order for your solar system to perform and report data to the SolarEdge monitoring platform.

What is a power optimizer used for?

A power optimizer is a DC to DC converter technology developed to maximize the energy harvest from solar photovoltaic or wind turbine systems.

Are solar power optimizers worth it?

Although an optimizer-inverter system can be marginally more costly than a string inverter system (2-3 percent more for the entire device), the financial gains from increased energy production will outweigh additional costs and are generally worth the investment if your solar project site has several azimuths, tilts.

Which Solar inverters are the best?

top 8 Solar inverters – Residential

• Fronius. Fronius Inverters have maintained the top spot for much of the last eight years, ever since the release of the innovative snap-in design in 2012.
• SolarEdge.
• SMA.
• Sungrow.
• Huawei.
• FIMER.
• Delta.
• GoodWe.

Are micro inverters worth the extra money?

Micro inverter manufacturers argue that whilst the upfront cost of their technology is higher than string inverters, they are better value over time. It stands to reason that if micros allow for greater performance and output of your solar system and are more reliable, then over time they will have a better pay back.

Are SolarEdge inverters any good?

SolarEdge’s inverters have historically had a good reputation for reliability and efficiency. In 2018 one reviewer saw signs of emerging poor reliability, while other installers adore the little optimisers and say they’ve had very few issues.

Which SolarEdge optimizer should I use?

If your module is ≤400W and has relatively high Voc but lower Isc, consider the P400. If your module is ≤400W and has lower Voc but relatively high Isc, consider the new P401. If your module is ≤405W and has high Voc AND Isc, consider the P405.

What companies make microinverters?

The major vendors operating in the micro-inverter market include Enphase Energy, Darfon Electronics, Chilicon Power, ReneSola, and Altenergy Power System among others.

Do power optimizers need to be connected to ground?

Power optimizers that are available for North America (part numbers: Pxxx-2N and Pxxx-5N) must be grounded. When the power optimizer is mounted on a grounded structure, equipment grounding is done using the washers supplied with the optimizers (refer to the SolarEdge Installation Guide).
