What is RHH RHW wire?
Mia Smith
Published Mar 01, 2026
What is RHH RHW wire?
RHW wires are an underground service entrance cable for direct burial in which the conductor temperature will not exceed 90 degrees Celsius wet or dry. RHW-2/USE-2 and RHH cables have a voltage rating of 600 volts and are high-heat, moisture, and sunlight resistant.
What does Rhw mean for wire?
For example, in the case of “RHW,” the “R” stands for rubber or neoprene outer insulation, the “H” stands for a heat resistance of 75 degrees Celsius (it would be “HH” for 90 degrees Celsius) and the “W” stands for the ability of the wire to withstand water damage.
What is the amperage of a #12 Rhw-2?
20
Single copper conductor, stranded, insulated with moisture and heat resistant, chemically cross-linked polyethylene insulation. Temperature rating 90° C in wet and dry applications. available….Product Details.
| Cable Type | XLP/USE-2 or RHH/RHW-2 |
|---|---|
| Stranded or Solid | Stranded |
| O.D. (Inches) | 0.18 |
| Ampacity | 20 |
| Voltage | 600V |
What is thw wire?
TW or THW means thermoplastic high heat-resistant and water-resistant. Typical uses of TW/THW electrical wire tracer are in control panels, air conditioning equipment, refrigeration equipment, control wiring of machine tools, and automatic washers.
Can Armoured cable be submerged in water?
Armoured cables should not be installed in locations where they are liable to be immersed in water, such as on the floor of a crawl-way duct where water may collect in puddles. The ends of armoured cables should be kept sealed until ready for termination, to reduce the risk of water ingress.
What is THWN wire?
What is THWN Cable. THWN is a code for thermoplastic heat and water resistant which is suitable for use in both dry and wet locations with a maximum temperature rating of 75ºC (167ºF).
What is Rhh wire used for?
RHH/RHW-2/USE-2/XLP-E is suitable for most current direct burial and industrial lighting or power wiring solutions in conduits, ducts, or other approved raceways, especially those where better insulation toughness and resistance to moisture and heat is needed.
What does Rhh stand for?
RHH
| Acronym | Definition |
|---|---|
| RHH | Real Hip-Hop |
| RHH | Royal Hallamshire Hospital (UK) |
| RHH | Reverend Horton Heat (band) |
| RHH | Rheinhessen (part of the state of Rheinland-Pfalz, Germany) |
What wire do you use for 50 amps?
6
50 AMP Wire Size For a maximum of 50 amps, you’ll need a wire gauge of 6. Fifty amp breakers are most often used to power many different appliances. However, a kitchen oven can alone require 50 amps. Many electric dryers also require a 50 amp breaker.
How many amps can 2 AWG handle?
115 AMPS
Size & AMP Ratings
| NM, TW, & UF WIRE (Copper Conductor) | SE CABLE (Copper Conductor) |
|---|---|
| 14 AWG – 15 AMPS | 8 AWG – 50 AMPS |
| 12 AWG – 20 AMPS | 6 AWG – 65 AMPS |
| 10 AWG – 30 AMPS | 4 AWG – 85 AMPS |
| 8 AWG – 40 AMPS | 2 AWG – 115 AMPS |
What is Thhn and THWN?
THHN stands for Thermoplastic High Heat-resistant Nylon-coated. THWN wire is the same, but the “W” stands for water-resistant. THWN has a maximum temperature of 90°C in dry and wet locations, whereas THHN wire can only be used in temperatures as high as 75°C in wet locations.
What is Thhn and TW?
TW — Indicates a single conductor having flame-retardant, moisture-resistant thermoplastic insulation. The wire is rated 60°C wet or dry. THHN — Indicates a single conductor having flame-retardant and heat-resistant thermoplastic insulation with a jacket of extruded nylon or equivalent material.
What does RHW stand for?

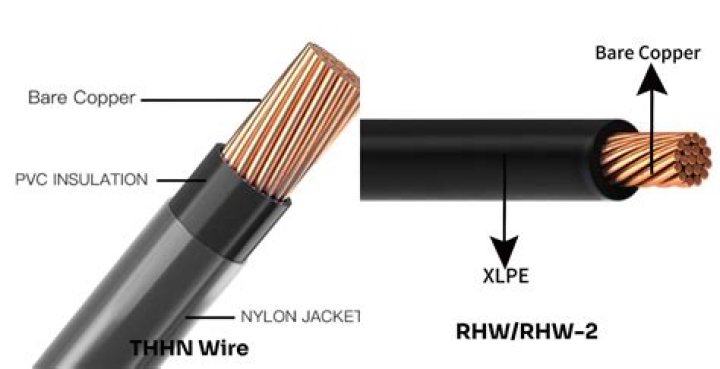

Like XHHW and XHHW-2, RHW-2 wires are insulated by cross-linked polyethylene (XLPE). Even though the “R” stands for rubber, it also incorporates other neoprene insulations that XLPE falls under. H = Heat Resistance of 75° C Cables must be able to withstand the elements.
What is RHH wire?
USE-2, RHW-2 or RHH These wires are single conductor wires that are intended for lighting and power applications in accordance with the National Electric Code and other general purpose wiring applications. This specification describes a stranded copper conductor with a cross-linked polyethylene ( XLPE ).
What is RG6 cable used for?
An RG6 cable is one of the most commonly used cables for home and commercial purposes. It is a form of coaxial cable used to transmit audio and video signals to devices such as television sets. Initially the RG6 cable design was created and used by the military. The RG stood for “radio guide.”.
