What is reverse osmosis diagram?

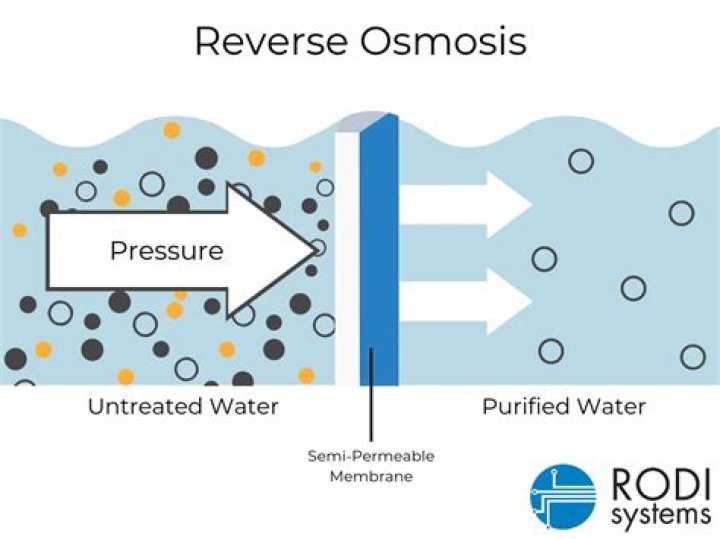

The difference in water levels represents osmotic pressure of the solution. The reversal of solvent flow, from higher conc solution to lower conc solution through a semi permeable membrane, by applying an external pressure slightly higher than the osmotic pressure of higher conc solution is known as reverse osmosis.
What are the 5 stages of reverse osmosis?
What are the Stages in a Reverse Osmosis System?
- Sediment Pre-Filter. Melt Blown Polypropylene removes dirt, rust and sediment particles down to 5 microns.
- Carbon Pre-Filter.
- Reverse Osmosis Membrane.
- Post Carbon Filter.
How reverse osmosis works step by step?
Starts here4:02How does reverse osmosis work? – YouTubeYouTubeStart of suggested clipEnd of suggested clip58 second suggested clipWater passes through the membrane surface. Into the permeate channel it flows in a spiral. DirectionMoreWater passes through the membrane surface. Into the permeate channel it flows in a spiral. Direction and collects in the core tube. This water is the final recycled water product or permeate.
What are the parts of a reverse osmosis system?
What are the main components of a residential reverse osmosis drinking water filter system?
- Water Supply Connector.
- Pressure Regulator (optional)
- Sediment Pre-filter.
- Carbon Filter for Chlorine Removal.
- Carbon Filter for Chloramine Removal.
- Auto Shut-off Valve (ASO Control Valve)
- Reverse Osmosis Membrane.
- Check Valve.
What is the difference between osmosis and RO?
The key difference between osmosis and reverse osmosis is that osmosis is a natural process in which water molecules pass along the concentration gradient while reverse osmosis is a procedure of water purification process that passes water molecules against the concentration gradient across a semi-permeable membrane.
What are the 4 stages of reverse osmosis?
It has four stages, sediment water filter, carbon water filter, RO membrane, and post carbon filter for pure, great tasting water at an economical price.
What is the difference between 3 stage and 5 stage reverse osmosis?
In most cases, 3 stage reverse osmosis systems are used for large scale purification of water. This can be by aquarium managers who want to protect their fish from harmful chemicals. 5 Stage Reverse Osmosis systems on the other side are mostly used for provision of drinking and cooking water in homes.
How does a 4 stage reverse osmosis system work?
Starts here4:144 Stage Reverse Osmosis System – Bulk Reef Supply – YouTubeYouTube
What type of tubing is used for RO systems?
polyethylene tubing
Mainly used for the polyethylene tubing are connection of RO drinking water filtration system, water purifiers, pure water machine, aquariums, and ice making kits ECT. This tubing made from non-toxic odorless & tasteless low density polyethylene and meets FDA standards and regulations.
What is a flow restrictor for reverse osmosis?
A flow restrictor, as the name suggests, restricts the flow of RO reject water. Flow restrictor maintains high pressure inside the RO membrane (a precondition for RO purification) by creating back pressure on the membrane and also controls the recovery ratio of the purifier.
