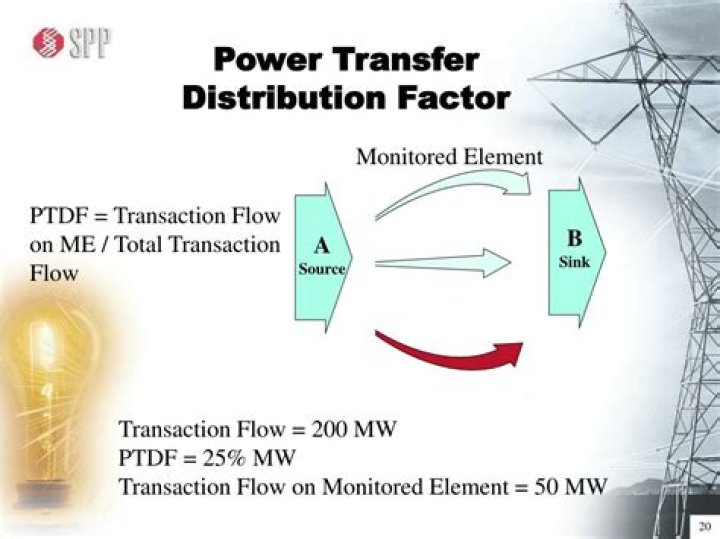

Power Transfer Distribution Factors (PTDF) indicate the incremental change in real power that occurs on transmission lines due to real power transfers between two regions. These regions can be defined by areas, zones, super areas, single buses, injection groups or the system slack.

How do you calculate Ptdf?

PTDF = Bd * A * X_alt * (A_alt)T The diagonals of this matrix corresponding to radial lines are then set to zero.

What is line outage distribution factor?

Line Outage Distribution Factors (LODFs) are a sensitivity measure of how a change in a line’s status affects the flows on other lines in the system. On an energized line, the LODF calculation determines the percentage of the present line flow that will show up on other transmission lines after the outage of the line.

What are distribution factors?

Distribution factor is defined as the ratio of phasor sum of coil emfs to the arithmetic sum of coil emfs. It is also known as Belt or Breadth factor and denoted by kd. In electrical machine, armature winding is distributed in the slots. It is not concentrated in a single slot.

What is the uses of line distribution factors?

Line outage distribution factors are linear estimates of the change in flow on adjacent lines when transmission lines are lost and are normally applied for checking overloads on the lines following the fault [3].

What is distribution factor formula?

Distribution factor: It is defined as the ratio induced emf with distributed winding to the induced emf with a concentrated winding. It is given by γ γ k d = sin ⁡ m γ 2 m sin ⁡

What is Generation shift factor?

• The Generation Shift Factor represents the change (or sensitivity) of. active power flow in a reference direction on a transmission line with. respect to a change in injection at the generator bus and a. corresponding change in withdrawal at the reference bus.

What is coil span factor and distribution factor?

The Coil Span Factor or Pitch Factor KC is defined as the ratio of the voltage generated in the short pitch coil to the voltage generated in the full pitch coil. The distance between the two sides of a coil is called the Coil Span or Coil Pitch Factor. It is also known as Chording Factor.

What is distribution factor in moment distribution method?

Distribution factors can be defined as the proportions of the unbalanced moments carried by each of the members. In mathematical terms, the distribution factor of member framed at joint is given as: where n is the number of members framed at the joint.

What will be the distribution factor in moment distribution method?

Distribution factors can be defined as the proportions of the unbalanced moments carried by each of the members. In mathematical terms, the distribution factor of member k framed at joint j is given as: D j k = ( E I ) k L k ∑ i = 1 n ⁡ ( E I ) i L i where n is the number of members framed at the joint.
