What is optical Time Domain multiplexing?

What is optical Time Domain multiplexing?

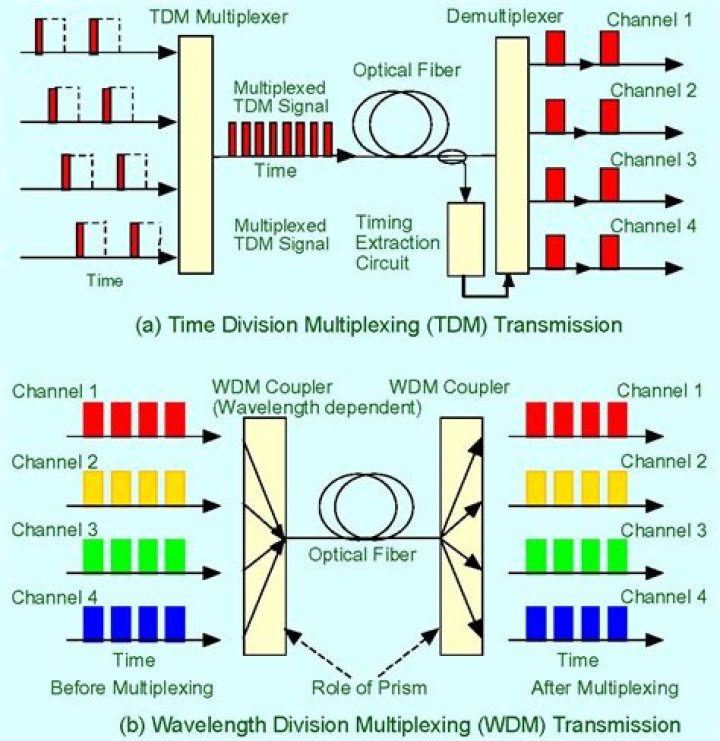

Time division multiplexing is a technique where several optical signals are combined, transmitted together, and separated again based on different arrival times. In an optical fiber communication system, interleaving pulse trains can carry different data channels in a single fiber [1, 3].

What are the applications of TDM?

Applications of TDM

• TDM is used in digital audio mixing system.
• TDM or Time Division Multiplexing is used in Pulse Code Modulation(PCM) transmission system.
• In the optical data transmission system or optical fiber communication, Time Division Multiplexing mostly used.

What are the applications of WDM?

Application of WDM

• In SONET network.
• Dense WDM multiplexing allow to muxed and demuxed numbers of channel closer to one another to achieve greater efficiency.
• FDM to the optical fiber.
• Optical transport network.
• Local exchange network.

How is multiplexing done in optical networks?

Wavelength Division Multiplexing (WDM) combines multiple optical signals on a single fiber by using different wavelengths (also referred to as “colors”) for each signal. This is particularly useful when minimizing the fiber count is advantageous e.g. when the fiber is being leased.

What is Otdm in optical fiber?

A strategy for increasing the bit rate of digital optical fiber systems beyond the bandwidth capabilities of the drive electronics is known as optical time division multiplexing (OTDM). OTDM can provide users with better throughput delay performance, faster single-channel access times for high-data-rate end users.

How does code division multiplexing work?

Code division multiplexing (CDM) is a multiplexing technique that uses spread spectrum communication. In spread spectrum communications, a narrowband signal is spread over a larger band of frequency or across multiple channels via division. It does not constrict bandwidth’s digital signals or frequencies.

Is TDM analog or digital?

2. TDM works with digital signals as well as analog signals. While FDM works with only analog signals.

What is the disadvantage of TDM?

There are some disadvantages of time division multiplexing which are given below, Synchronization is required in time division multiplexing. Complex to implement. Due to slow narrowband fading, all the TDM channels may get wiped out.

Why WDM is used in optical fiber?

WDM is a technique in fiber optic transmission for using multiple light wavelengths to send data over the same medium. For robust operation of a system with densely packed channels, high-precision filters are required to peel away a specific wavelength without interfering with neighboring wavelengths.

What is optical detection principle?

Optical Detectors. 6.3 Optical detection principle. The conversion of an optical into an electrical signal requires the absorption of the incident light. The absorption leads to an excitation of an electron from the valence to the conduction band.

What multiplexing technique is used in optical communication?

Wavelength division multiplexing (WDM) is used to transmit more than one high-speed digital data stream on a single optical fiber.

What is the difference between DWDM and CWDM?

CWDM has a wider channel spacing than DWDM — the nominal difference in frequency or wavelength between two adjacent optical channels. DWDM systems, on the other hand, can carry 40, 80, 96 or up to 160 wavelengths by utilizing a much narrower spacing 0.8/0.4 nm (100 GHz/50 GHz grid).

What is time-division multiplexing (OTDM)?

In optical time-division multiplexing (OTDM) systems, several optical signal modulated at the bit rate B using the same carrier frequency are multiplexed optically to form a composite optical signal at a bit rate NB, where N is the number of multiplexed optical channels.

What is optical multiplexing (odtm)?

In Optical Multiplexing, OTDM technology can be exploited, to switching at 100 Gb/s. OTDM light path network has the ability for 100 Gb/s Ethernet switching, however, more modulators need to be equipped in the transmitters, and only connections from the source node to its downstream nodes in a super light path can be realized. … …

What is the bit rate of ototdm multiplexer?

OTDM Multiplexer.osd (see Figure 5) shows an OTDM transmitter. Each modulator generates short pulses with 10 GB/s bit rate, the pulse 3 dB pulse width is 0.05 bit period (see Figure 6).

What is OTDM (optical TDM)?

A solution is offered by the optical TDM (OTDM), a scheme that can increase the bit rate of a single optical carrier to values above 1 Tb/s. The OTDM technique was studied extensively during the 1990s, and further research has continued in recent years in the context of WDM systems with channel bit rates of 100 Gb/s or more.
