What is oil separator in refrigeration system
Emma Martin
Published Apr 02, 2026

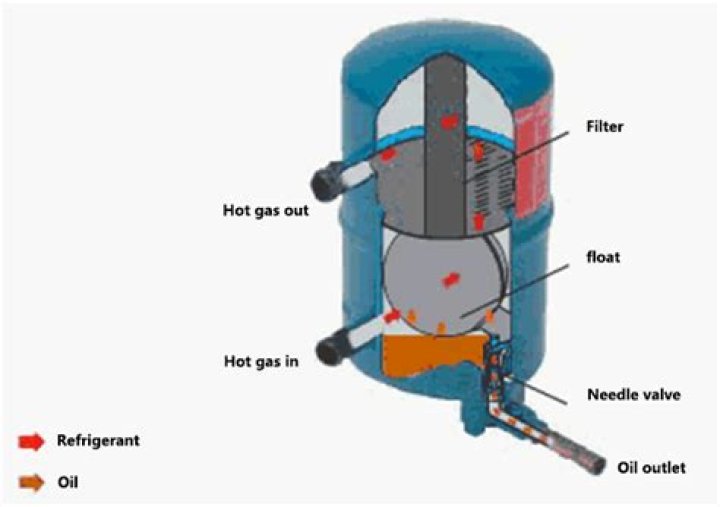

Oil separators are used on refrigeration systems where it’s difficult for the oil to return from the evaporator. … Oil separators are installed in the compressor/ compressors discharge line. They’re usually a vertical container with the discharge gas connections at the top and an oil return port at the bottom.
Why oil separator is used in refrigeration system?
The function of an oil separator is to separate oil from the hot gas in the discharge line and return it to the compressor crankcase or to the oil reservoir in systems with multiple compressors.
How does an oil separator work HVAC?
Oil separators remove oil from the compressor’s discharge gas, temporarily store the oil, and then return it to the compressor’s crankcase. Oil separators are located close to the compressor in the discharge line.
What is the function of the oil separator?
The oil separator separates the oil from the air as the oil needs to stay inside the compressor to keep it lubricated while the compressed air needs to exist the compressor, free of oil.What is an oil separator on a compressor?
Inside of your air compressor, you will find an internal oil-water separator. The internal separator separates the water from the oil that stays inside the compressor. This is the oil that is used to lube the rotary screw and other internal parts.
What removes oil from discharge gas?
The function of a Helical Oil Separator-Reservoir is to remove oil from the discharge gas and return it to the compressor. This helps maintain the compressor crankcase oil level and raises the efficiency of the system by preventing excessive oilcirculation.
How do separators work?
Separators work on the principle that the three components have different densities, which allows them to stratify when moving slowly with gas on top, water on the bottom and oil in the middle. Any solids such as sand will also settle in the bottom of the separator.
What is oil separator in chiller?
An oil separator basically separates oil from an oil and refrigerant gas mixture from the compressor, discharges the refrigerant gas to the condenser, and returns the separated oil to the compressor.Where do you put the oil separator in a refrigeration system?
Oil separators are installed in the compressor/ compressors discharge line. They’re usually a vertical container with the discharge gas connections at the top and an oil return port at the bottom.
How do you clean an oil separator?- Turn off the influent water to the unit.
- Open the unit cover.
- Remove any oil and dispose of it in a way that complies with company and legal procedures.
- Drain the water from the separator.
- Measure the depth of the leftover solids and write it down. …
- If necessary, dispose of the solids.
What are the two basic types of relief valves used on refrigeration systems?
What are the two basic types of relief valves? There is an automatic relief valve and a one-time relief valve.
How does an oil water separator work for an air compressor?
Most air compressor oil water separators work via the principle of adsorption, which is a process by which one material, typically a liquid, “sticks” to another, typically a solid. An oil water separator contains polypropylene fibers that collect the oil from the mixture, separating it from the water.
How do you separate oil from compressed air?
Because oil mist and vapor, as well as other contaminants, can accumulate in compressed air lines between the compressor and the tool, point of use filtration is generally the preferred way to remove oil from compressed air lines. The air should be as dry as possible to achieve the best results.
What are the types of separators?
Separators can be either horizontal or vertical. Separators can be classified into two-phase and three-phase separators (commonly called free-water knockout). The two-phase type deals only with oil and gas, while the three-phase type handles oil, water and gas.
What do you mean separator?
Definition of separator : one that separates especially : a device for separating liquids of different specific gravities (such as cream from milk) or liquids from solids. Synonyms Example Sentences Learn More About separator.
What is test separator in oil and gas?
A test separator is a vessel which is used to separate and measure small amounts of oil and gas. Each well is periodically tested by diverting the flow from the production separator to a test separator which determines the well’s production rates of oil, gas, and water.
What is the effect if the oil return from oil separator to the compressor is blocked?
Oil filters are often installed in the oil return line between the oil separator and the compressor. If this filter is blocked it can lead to excessive oil carry-over, which affects heat transfer in the evaporator.
Why is superheat desirable?
“Measuring superheat is important because it can prevent damage to the air conditioner and make it run more efficiently. Superheat is the difference between the boiling point temperature of the refrigerant in the evaporator coil and the actual temperature of the refrigerant gas as it leaves the evaporator.
What is Subcool HVAC?
An air conditioning system utilizes refrigerant in order to accomplish its cooling. … One of the factors that determines how much heat the refrigerant can absorb is subcooling. Subcooling is a process that takes place inside of your condenser coil shortly before the refrigerant moves on to the evaporator coil.
What does Txv mean in HVAC?
A thermostatic expansion valve (TXV) (see Figure 1) is a refrigeration and air conditioning throttling device that controls the amount of refrigerant liquid injected into a system’s evaporator—based on the evaporator outlet temperature and pressure—called the superheat.
How often should oil water separators be cleaned?
Typical service intervals are between three and six months depending on the type of separator, the volume of water being processed and the amount of oil and sludge being removed.
How often should you carry out maintenance on the OWS?
Minimum recommendations are that full inspection and cleaning of the OWS is to be carried out at least every two months with filters cleaned on a monthly basis. Such tests must be recorded in the engine log book and oil record book. The tank from which the OWS takes suction should be cleaned on a two monthly basis.
What is difference between safety valve and relief valve?
In simple terms, a relief valve is a device designed to control the pressure in a vessel or system to a specific set level. A safety valve, on the other hand, is a device used to let go excess pressure from a vessel or equipment when the pressure crosses a certain predetermined limit.
What is PSV tail pipe?
Proper design of inlet pipe and outlet (tail) pipe is key for smooth and stable operation of a pressure safety valve (PSV). … PSV outlet pipe should be designed to avoid excessive backpressure, erosional tendency and noise.
What are three types of relief valves?
The three basic types of pressure-relief valves are conventional spring loaded, balanced spring loaded, and the pilot operated. Conventional spring loaded. In the conventional spring-loaded valve (Fig. 1), the bonnet, spring, and guide are exposed to the released fluids.
How do oil less compressors work?
Oil-less compressors do use oil. A chamber houses the oil keeping it separate from the compression chamber. Other materials lubricate the piston so it moves freely within the compressor cylinder. On the other hand, an oil-lubricated compressor uses oil to lubricate the piston for air pressurization.
Why is there oil in compressed air?
Oil carry-over occurs when the oil that is used to lubricate your air compressor makes it past the separator filter and into the pipes. The main causes of oil carry-over are excess oil in the reservoir, low temperatures, faulty separator filters and scavenge lines, and oil degradation.
Does compressed air have oil?
Coalescing filters are ONLY for oil removal. Oil contamination is not present in atmospheric air. Liquid oil and oil aerosol are the only contaminants present in a compressed air system. Compressed air contamination is a compressor issue.
What is an air compressor water separator?
An air compressor water separator is basically a small tool addition that attaches directly to your compressing device to eliminate water from it. Spray guns, woodworking tools (e.g. nailer), automotive machines or other air tools require an air compressor to come to life.
How do you get rid of contaminants in the air?
Proper treatment typically requires a train consisting of filters, dryers and separators. a coalescing filter (1–5 µm) to eliminate aerosols. point-of-use filters (0.2 µm) to take out contaminants potentially picked up in system lines. Filtration removes a surprising volume of oily water from compressed air.
