What is Ipdm relay

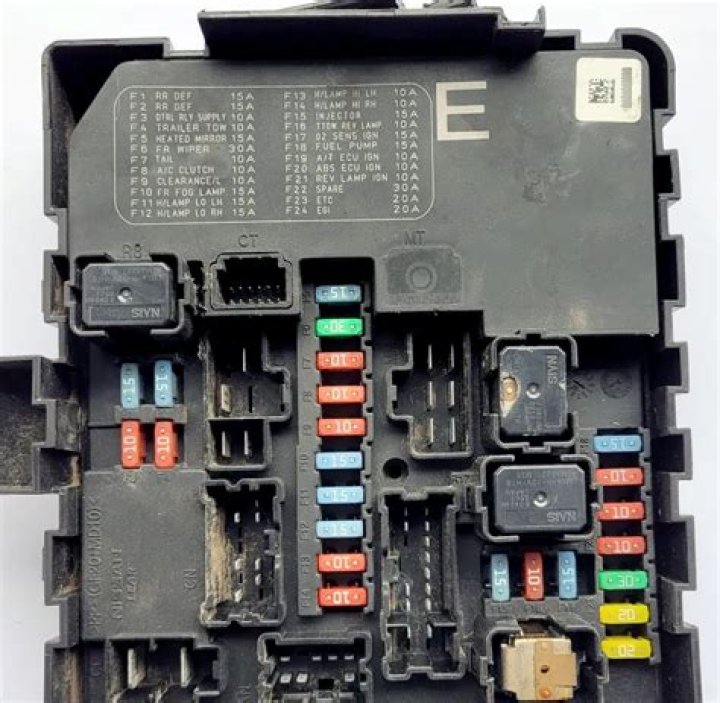

Nissan’s intelligent power distribution module (IPDM) offers a self-test sequence for the various loads it controls. This helpful function can simplify electrical diagnosis. … A typical Nissan that rolls into your bay has an underhood fuse/relay center called the intelligent power distribution module (IPDM).

What is Ipdm in car?

iPDM is an intelligent electronic power distributor with a cut-off function that ensures and manages the power supply for a scalable number of connected loads in the vehicle. It can also protect connect- ed lines against thermal overload.

How do I uninstall Ipdm?

Remove the IPDM, reach behind the IPDM and squeeze the two tabs toward the front of the car and lift it from the bracket. Remove the IPDM cover, use a small flat head screwdriver and lightly pry the tabs up while you pull the cover away from it.

What is an Ipdm on a Nissan Titan?

This is the OEM Replacement IPDM Controller Module for your Nissan Titan. The IPDM, also called the Intelligent Power Distribution Module, is a sensitive electronic fuse and relay panel located inside of the battery storage area on all Nissan Titan models.

What is ECM relay?

What Is An ECM Power Relay? ECM stands for engine control module – the computer that makes your entire car function on its own. The ECM power relay monitors and delivers power to the ECM which in turn decides how virtually every other component in your engine runs.

Where is the starter relay on a 2010 Nissan Titan?

The starter relay in a 2010 Nissan Titan can be found in the main fuse panel that is near the battery compartment under the hood.

How do you reset the ECU on a Nissan Frontier?

1. Perform Accelerator Pedal Released Position Learning .
2. Perform Throttle Valve Closed Position Learning .
3. Start engine and warm it up to normal operating temperature.
4. Turn ignition switch OFF and wait at least 10 seconds.
5. Conform that accelerator pedal is fully released, turn ignition switch ON and wait 3 seconds.

Where is the fuel pump relay on a 06 Nissan Sentra?

Its behind the left drivers kick panel and is closer to the firewall.

Where is the starter relay on a 2012 Nissan Titan?

The ECM relay on the 2012 Nissan Titan is located in the engine bay, so You’ll need to pop Your hood with the inside lever and then lift it so You can access the inner components.

Are there any recalls on a 2004 Nissan Titan?

NISSAN IS RECALLING CERTAIN MODEL YEAR 2004-2006 ARMADA, TITAN, INFINITI QX56 AND MODEL YEAR 2005-2006 FRONTIER, PATHFINDER AND XTERRA VEHICLES. THE INTELLIGENT POWER DISTRIBUTION MODULE (IPDM) ASSEMBLY CONTAINS AN ENGINE CONTROL MODULE (ECM) RELAY THAT HAS A DIODE FOR ELECTRICAL CURRENT NOISE REDUCTION.

Article first time published on

Where is the fuel pump relay on a 2008 Nissan Titan?

The 2008 nissan titan fuel pump relay is in the passenger footwell kick panel.

What is a Ipdm Nissan?

Nissan’s intelligent power distribution module (IPDM) offers a self-test sequence for the various loads it controls. This helpful function can simplify electrical diagnosis. A self-test controlled by a smart fuse panel may speed diagnosis of common electrical components on Nissan and Infiniti vehicles.

Can a relay drain battery?

A failed ECM power relay can also cause a battery drain or dead battery. If the relay shorts it can leave power on to the computer, even when the vehicle is turned off. This will place a parasitic drain on the battery, which will eventually cause it to go dead.

Why is my fuse box clicking?

Clicking noise in your car’s fuse box is caused by a relay that is turning on and off rapidly. This can be caused by a computer failure, resistance in the ground wire for the control side of the relay or high resistance in the power supply to the control side of the relay.

Will touching battery cables together to reset computer?

Whenever you touch the battery cables together and drain the capacitors the clock will lose its memory, the radio stations will need to be reset, all fault codes will be cleared, the outside temperature may take some time to relearn, any systems with security codes will need to be reset and the computer will need to …

How do you reset the TCM on a Nissan Frontier?

Press and hold the brake pedal, then press and release the gas pedal. The A/T CHECK light should flash on and off in a pattern. Put the shifter in park, and turn off the car. When You restart the car, the TCM will be reset.

Where is the Ipdm on a Nissan Armada?

The IPDM, also called the Intelligent Power Distribution Module, is a sensitive electronic fuse and relay panel located inside of the battery storage area on all Nissan Armada models.

Why does my Nissan Armada not start?

The most common reasons a Nissan Armada won’t start are a dead battery, an alternator problem, or failed starter.

What do you do when your Nissan Armada won't start?

First connect red cable to the positive terminal of your Armada’s dead battery, then to the positive terminal of donor battery. Next connect black cable to the negative terminal of donor battery, then to the bare metal in the engine bay of your Armada. Start the donor vehicle and then your Armada.

Where is the fuel pump relay on a Nissan Titan?

The fuel pump relay on the Titan is located under the hood in the engine area. To be more specific, it is located right on top of the battery. It is in between the battery and the passenger’s side windshield wiper. The amp rating of the fuel pump relay is 15A.

Where is the fuel pump relay on a 2010 Nissan Titan?

The fuel pump relay on a 2010 Nissan Titan is going to be located under the hood of the vehicle. Go ahead and open the driver’s side door and pull on the hood release lever.

Where is the fuel pump relay on a 2002 Nissan Sentra?

it’s located in the L/S kick panel by where your left foot goes. There should be 2 relays next to each other it is the one closest to the firewall.

How do I know if my starter relay is bad?

1. The Vehicle Is Dead. The most obvious symptom is a completely silent car that does not respond when you turn the ignition key. …
2. Starter Making Clicking Sounds. …
3. Occasional Failures In Starting The Vehicle. …
4. Starter Does Not Get Switched Off.

How much does a starter cost for a 2004 Nissan Titan?

This item New Starter Replacement For 2004-2011 Nissan Titan 5.6L, 2004-10 Pathfinder 5.6L, 2005-09 Armada 5.6L, 2004-2010 Infiniti QX56 23300-S000, 2330M-7S000RW, M002T85571, BSR2290X, 41048228, SMT0283Price$13595ShippingFREE Shipping. DetailsSold ByOEG Parts

What is the cost of replacing a starter?

How Much a Starter Replacement Costs. The cost of rebuild parts for a starter can range from as little as $50 to as much as $350. A brand-new starter can range from $80 to over $350. For a qualified mechanic to replace or rebuild your starter, you can expect to pay between $150 and over $1,100.

Where is the fuel pump relay on a 2006 Nissan Titan?

The fuel pump relay on the 2006 nissan titan is located in the fuse box located in the engine bay.

Where is the fuel pump relay on a 2007 Nissan Pathfinder?

The fuel pump relay on the 2007 nissan pathfinder is located in the under the hood fuse box.

Where is the fuel pump relay on a 2005 Nissan Frontier?

The fuel pump relay on this vehicle can be found on the under the hood fuse box. To be more specific, the fuse box is located on the passenger side of the engine. It is not next to the battery but it is next to the passenger side cowling.

Are all relays the same?

The problem is, not all relays are the same. … Just because it has the same number/location of terminals, doesn’t mean the relay works for that application. Some relays, when used for the wrong application, can generate a voltage spike over 100V on a traditional 12V system.

What is relay fuse?

Fuses are included on all your car’s various electrical circuits to protect components from surges of electricity. … Relays are remote switches that open or close an electrical circuit. For example, only a little electricity is needed for the headlight switch that turns your headlights on and off.
