What is frame in time division multiplexing?
Michael Henderson
Published Mar 17, 2026
What is frame in time division multiplexing?

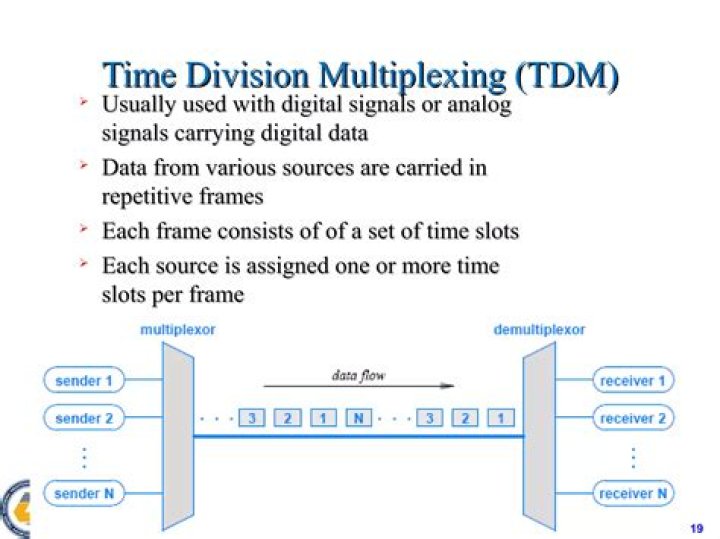

A frame consists of one complete cycle of time slots, including one or more slots dedicated to each sending device, plus framing bits (see Figure 7.3-5). In a system with n input lines, each frame has at least n slots, with each slot allocated to carry data from a specific input line.
How are the frame synchronized in synchronous TDM?
In synchronous TDM, a round of data units from each input connection is collected into a frame. If we have n connections, a frame is divided into n time slots and one slot is allocated for each unit, one for each input line.
What is time division multiplexing with example?
Examples of utilizing TDM include digitally transmitting several telephone conversations over the same four-wire copper cable or fiber optical cable in a TDM telephone network; these systems may be pulse code modulation (PCM) or plesiochronous digital hierarchy (PDH) systems. GSM utilizes both TDM and TDMA.
What is TDM with diagram?
Definition: A multiplexing technique by which multiple data signals can be transmitted over a common communication channel in different time slots is known as Time Division Multiplexing (TDM). It allows the division of the overall time domain into various fixed length time slots.
What is synchronous and asynchronous TDM?
Synchronous time division multiplexing assigns a fixed time slot to each connected device, whether the device transmits data or not. With asynchronous time division multiplexing, time slots are flexible, and assigned when connected devices have data that is ready to send.
What is multiple slot allocation?
Multiple Slot Allocation: When an input line has multiple rates of the others. 6.39. Figure 6.20 Multiple-slot multiplexing. Page 8. Pulse Stuffing: (bit padding) When the bit rates of the input lines are not multiple integers of each other.
Which is better synchronous TDM or asynchronous?
Synchronous TDM supports less device than asynchronous TDM. Asynchronous TDM can provide more devices than synchronous TDM. It provides the equivalent number of input lines as asynchronous TDM with a higher size connection.
What is difference between synchronous and asynchronous TDM?
Other name of asynchronous TDM is statistical division multiplexing. It is called so because time-slots are not fixed i.e. slots are flexible….Difference between Synchronous TDM and Asynchronous TDM :
| S. No. | Synchronous TDM | Asynchronous TDM |
|---|---|---|
| 3. | There is no guarantee that full capacity link is used. | There is guarantee that full capacity link is used. |
How do you calculate time division multiplexing?
Important Formulas-
- Size of each time slot in Time Division Multiplexing = Tt + Tp
- Efficiency (η) = 1 / (1+a) where a = Tp / Tt
- Effective Bandwidth / Bandwidth Utilization / Throughput = Efficiency(η) x Bandwidth.
- Maximum Available Effective Bandwidth = Total number of stations x Bandwidth requirement of 1 station.
What is the basic principle of TDM?
Time Division Multiplexing (TDM) In TDM, the time frame is divided into slots. This technique is used to transmit a signal over a single communication channel, by allotting one slot for each message.
What is synchronous time division multiplexing?
Synchronous and asynchronous time division multiplexing are techniques that allow multiple signals to be sent over a single faster connection by sectioning a link into time slots. In synchronous time division multiplexing, time slots are fixed — every time slice is allocated even if sources have nothing to send.
Is the framing bit used in FDM or TDM?
Key Differences Between TDM and FDM Framing bits (Sync Pulses) are used in TDM at the start of a frame in order to enable synchronization. As against, FDM uses Guard bands to separate the signals and prevent its overlapping.
