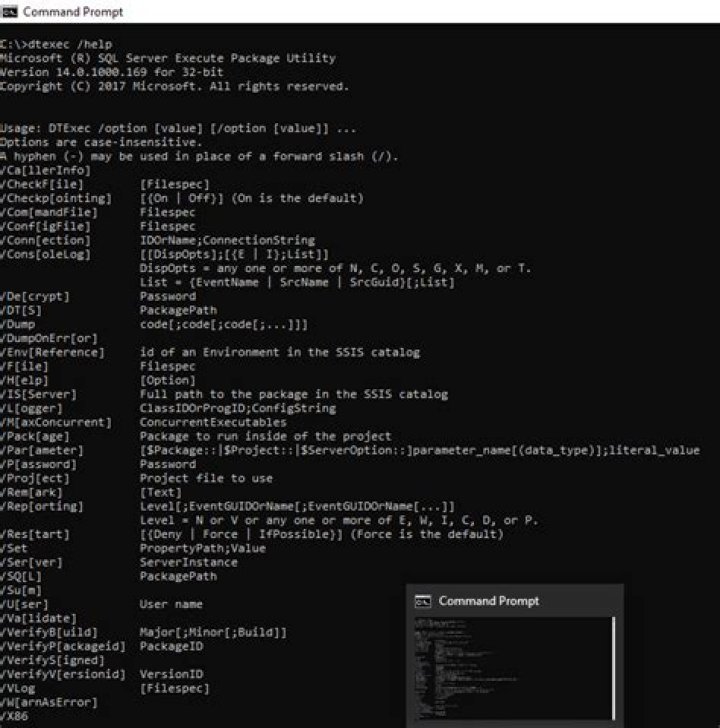

What is Dtexec

The dtexec command prompt utility is used to configure and execute SQL Server Integration Services packages. The dtexec utility provides access to all the package configuration and execution features, such as parameters, connections, properties, variables, logging, and progress indicators.

How do I use Dtexec?

1. Open a Command Prompt window.
2. Run DTExec.exe and provide values at least for the ISServer and the Server parameters, as shown in the following example: cmd Copy. dtexec /ISServer “\SSISDB\Project1Folder\Integration Services Project1\Package.dtsx” /Server “localhost”

How do I open a .dtsx file?

1. Install Microsoft SQL Server software. …
2. Check the version of Microsoft SQL Server and update if needed. …
3. Set the default application to open DTSX files to Microsoft SQL Server. …
4. Verify that the DTSX is not faulty.

How do I open Dtexec utility?

1. In SQL Server Management Studio, on the View menu, click Object Explorer.
2. In Object Explorer, click Connect, and then click Integration Services.
3. In the Connect to Server dialog box, enter the server name in the Server name list, and then click Connect.

What is a Dtsx file?

Specifies the Data Transformation Services Package File Format (DTSX), which is an XML-based file format that stores the instructions for the processing of a data flow from its points of origin to its points of destination, including transformations and optional processing steps between the origin and destination …

Where is Dtexec located?

By default, this tool is installed within the DTS executable files paths: “<installation path>\Microsoft SQL Server\<SQL version>\DTS\Binn” and which is added to the “path” system variable.

What installs Dtexec?

To install the 32-bit version of the dtexec utility, you must select either Client Tools or SQL Server Data Tools (SSDT) during setup. By default, a 64-bit computer that has both the 64-bit and 32-bit versions of an Integration Services command prompt utility installed will run the 32-bit version at the command prompt.

What is the use of Count_big query?

COUNT_BIG (DISTINCT expression) evaluates expression for each row in a group, and returns the number of unique, nonnull values. COUNT_BIG is a deterministic function when used without the OVER and ORDER BY clauses. COUNT_BIG is nondeterministic when used with the OVER and ORDER BY clauses.

Can I install SSIS without SQL Server?

You cannot run a SSIS package (. dtsx) without installing the SQL Server integration Services. The minimum requirements are the SSIS client tools and the DTEXEC utility so you must install the Integration Services shared feature from the SQL Server install media.

Do you need SSIS installed to run a package?

SSIS needs to be installed (the binaries) in order to run SSIS packages. The service that gets installed is not required to run packages and can be disabled if all you are interested in is running packages.

Article first time published on

Is SSIS part of SQL Server?

SSIS stands for SQL Server Integration Services. SSIS is part of the Microsoft SQL Server data software, used for many data migration tasks. It is basically an ETL tool that is part of Microsoft’s Business Intelligence Suite and is used mainly to achieve data integration.

How do I open an existing SSIS package in Visual Studio 2019?

1. Open Visual Studio 2019. Once open, click Extensions–>Manage Extensions: …
2. Search / Download the SQL Server Integration Services Projects Extension. …
3. Once Downloaded, Open. …
4. Follow the SQL Server Integration Services Projects Wizard. …
5. Open or Create an SSIS Project.

How do I open a Dtsx file in Visual Studio 2017?

1. Right-click file to select “Open with” option.
2. Expand “+” next to Other Programs.
3. Click Browser to navigate to “C:\Program Files (x86)\Microsoft Visual Studio 10.0\Common7\IDE”, then select devenv.exe application.
4. Click OK. In this way, the . dtsx file would be always opened with Visual Studio.

How do I create a Dtsx file?

In SQL Server Data Tools (SSDT), open the Integration Services project in which you want to create a package. In Solution Explorer, right-click the SSIS Packages folder, and then click New SSIS Package. Optionally, add control flow, data flow tasks, and event handlers to the package.

What is Dtproj file?

What is DTPROJ file? DTPROJ is a file extension commonly associated with SQL Integration Services Project files. SQL Integration Services Project format was developed by Microsoft Corporation. DTPROJ file format is compatible with software that can be installed on Windows system platform.

Where are Dtsx packages stored?

They are stored on the file system as . dtsx files or in msdb. dbo. sysssispackages.

How do you execute SSIS package?

1. Open the package that you want to run and then click Start Debugging on the menu bar, or press F5. After the package finishes running, press Shift+F5 to return to design mode.
2. In Solution Explorer, right-click the package, and then click Execute Package.

Can I run SSIS on SQL Server Express?

SSIS can be used on all SQL Server 2005, 2008, 2008 R2, 2012, 2014 and 2016 editions except Express and Workgroup.

Which tool is used to migrate DTS packages?

Convert – DTS xChange will migrate your packages with minimum efforts, applying rules to each DTS package as it migrates them to enforce best practices. Monitor – SSIS Report Viewer is a powerful and very easy to use Auditing Tool to Audit Packages migrated (with Auditing Framework) using DTS xChange.

Which SSIS task performs manipulation in the file system?

The File System task performs operations on files and directories in the file system. For example, by using the File System task, a package can create, move, or delete directories and files. You can also use the File System task to set attributes on files and directories.

What are the typical uses of Integration Services?

Use Integration Services to solve complex business problems by copying or downloading files, loading data warehouses, cleansing and mining data, and managing SQL Server objects and data.

What is ISserverExec?

Sign in to vote. ISserverExec is not intended for direct use. It is an internal “runner” of packages in SSISDB (catalog). DtExec is the API for running packages via command line, BAT files, scripts or programmatically /ISServer switch makes sense to use for SSIS 2012 packages and onward deployed to the Catalog.

Is SSIS worth learning?

SSIS is a great tool, but you have to grasp underlying concepts first. It allows you to focus on the ETL process, instead of programming and debugging your code. There is a learning curve. Take a look at Microsoft Project Real examples and see what would be foreach loop equivalent for something like that.

Is Microsoft SSIS free?

SSIS is part of SQL Server, which is available in several editions, ranging in price from free (Express and Developer editions) to $14,256 per core (Enterprise). On the Microsoft Azure cloud platform, pricing for SSIS integration runtime nodes starts at $0.84 per hour.

What version is my SSIS?

To determine what version of SSIS your packages are designed for, use your file explorer to navigate to where the packages are stored. Right click one and select ‘Edit’ or ‘Open With Notepad‘. Next, use the built in search feature by pressing both ‘ctrl’ and ‘F’ together.

What does count () do in SQL?

The SQL COUNT(), AVG() and SUM() Functions The COUNT() function returns the number of rows that matches a specified criterion.

What is this operator *= in SQL?

OperatorDescription*=Multiply equals/=Divide equals%=Modulo equals&=Bitwise AND equals

What is difference between BigInt and int?

The int type takes 4 byte signed integer i.e. 32 bits ( 232 values can be stored). The BigInt type takes 8 byte signed integer i.e. 64 bits (264 values can be stored). Let us see an example.

What is needed for SSIS development?

The SSIS package design and development tools, including SSIS Designer. 32-bit SSIS components only. A limited version of Visual Studio (if a Visual Studio edition isn’t already installed). Visual Studio Tools for Applications (VSTA), the script editor used by the SSIS Script Task and Script Component.

How do I run SSIS package in SQL Server Management Studio?

1. In Object Explorer, select the package that you want to run.
2. Right-click and select Execute. The Execute Package dialog box opens.
3. Configure the package execution by using the settings on the Parameters, Connection Managers, and Advanced tabs in the Execute Package dialog box.
4. Click OK to run the package.

What is difference between SSRS and SSIS?

SSIS stands for Sql Server Integration Services. … SSRS stands for Sql Server Reporting Services. Once data is in its final state, either in the native transactional system or transformed into a datamart or datawarehouse, SSRS provides the tools necessary to create reports to better understand your data.
