What is double under reamed pile?

What is double under reamed pile?

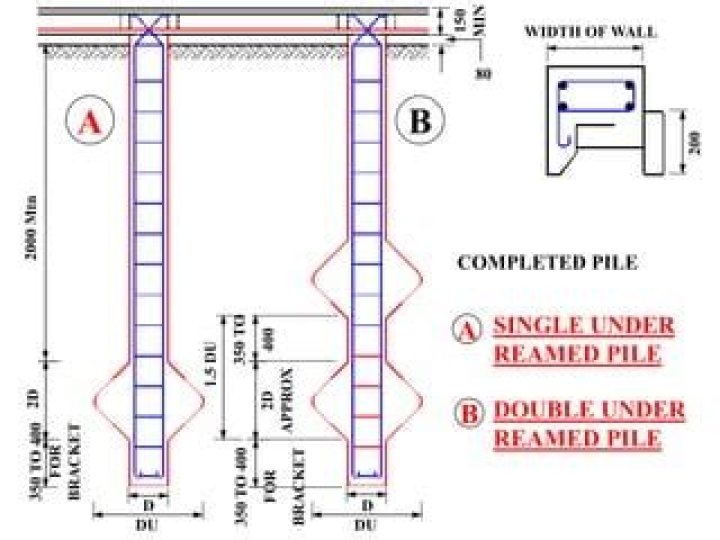

If the pile has one bulb, it is called single reamed, if the pile has two bulbs then it is called double reamed, and if there are more than two bulbs, it is called multiple under reamed piles.

What is under reamed pile?

Under reamed piles are bored cast-in-situ concrete piles having one or more number of bulbs formed by enlarging the pile stem. These piles are best suited in soils where considerable ground movements occur due to seasonal variations, filled up grounds or in soft soil strata.

What is under reamed pile What are its advantages?

Uses of Under-Reamed Piles The provision of under-reamed bulbs has the advantage of increasing the bearing and uplift capacities. It also provides better anchorage at greater depths. These piles are efficiently used in machine foundations, over bridges, electrical transmission tower foundation sand water tanks.

What are the different types of piling?

How are piling types used in construction?

• Driven pile foundations. Concrete, steel and timber are the most common materials used to make piles for the driven pile foundation method.
• Cast-in-situ pile foundations.
• Combined pile foundations.
• End-bearing piles.
• Friction piles.
• Bored piles.
• Driven piles.
• Screwed piles.

In which type of soil under reamed piles are generally used?

Under-Reamed Piles are widely used for different types of soils such as sandy soils, clayey soils and also expansive soils.

Which of the following stages are involved in the construction of under reamed piles?

Explanation: The various stage involved in the construction of under reamed pile foundation are i) boring by auger ii) under-reaming by under-reamer iii) placing reinforcement cage in position iv) concreting of pile caps, plinth beams and curtain walls. 4.

Why do we raft foundation?

Raft foundation is generally used to support structures like residential or commercial buildings where soil condition is poor, storage tanks, silos, foundations for heavy industrial equipment etc.

What are the two types of piles?

There are two types of hemorrhoids:

• Internal hemorrhoids are inside your rectum.
• External hemorrhoids are around your anus.

What is pile and types of pile?

Types of Piles for Pile Foundation Based on Load Transfer and Function. Classification of piles with respect to load transmission and functional behavior are: End bearing piles (point bearing piles) Friction piles (cohesion piles )

What are the main advantages of using deep under reamed footings in which type of soils are under reamed deep footings normally used?

Advantages of Under-Reamed Piles

• It decreases the vertical settlement and also differential settlement.
• It is used when soil tends to swell and shrink due to moisture variation or expansive nature of the soil.
• Provision of under-reams or bulbs has the advantage of increasing the bearing and uplift capacities.

Where are collapsible soils found?

Collapsible soils are found throughout the world in soil deposits that are eolian, loessial, subaerial, mudflows, alluvial, residual, or are manmade fills. These soils are typically found in arid or semiarid regions and have a loose structure; that, is a large void ratio, and a water content much lower than saturation.

What is bucket length in under reamed pile?

2. The minimum length of under-ream piles, in deep deposits of expansive soils, should be 3.5 m below the ground level. 3. The diameter of the under-ream is kept as 2.5 times the stem diameter.

What are the uses of Under reamed piles?

Under reamed piles are generally used in black cotton soil: 2. Under reamed piles are used in low bearing capacity Outdated soil (filled soil) 3.Under reamed piles are used in sandy soil when water table is high. 4. Under reamed piles are used, Where lifting forces appear at the base of foundation.

What is a single bulb Under reamed pile?

A single bulb attached at the bottom end of a pile is called a single bulb under reamed pile. The pile with two bulbs is called a double bulb under reamed pile. And the pile with more than two bulbs is called a multiple bulb under reamed pile.

What is the volume of Under-reamed pile?

The volume of under reamed pile depends on the diameter of the pile and the size of the bulbs. These are bored cast-in-situ concrete piles having one or more bulbs formed towards the bottom by e nlarging the borehole of the pile stem. The enlargements help in providing substantial bearing or anchorage.

What is an underreamed pile foundation?

Under-reamed pile foundations are bored cast in-situ concrete piles with one or more bulbs or under-reams. The bulb is formed by enlarging the stem of the pile near the bottom in a double conical shape, as shown in Fig. 20.30.
