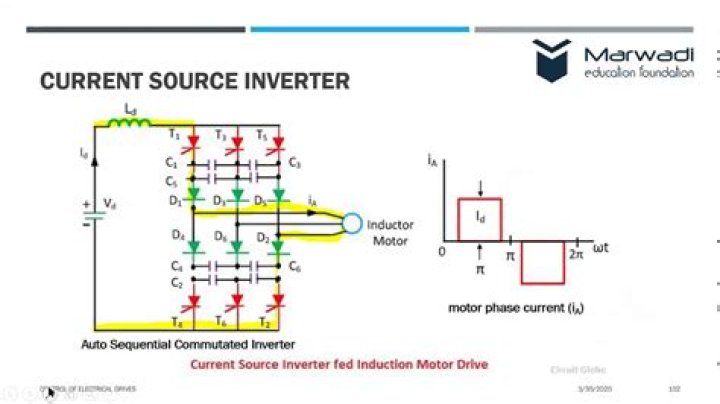

What is current source inverter?
The current source inverter is also known as current fed inverter which converts the input dc into ac and its output can be three-phase or single phase. According to the definition of the current source, an ideal current source is the kind of source in which current is constant and it is independent of voltage.
Can a current source have 0 volts?
3 Answers. A current source can certainly have a voltage across it. If the voltage across a current source is zero, then it is not delivering or absorbing any power. However, if the voltage across the source is not zero, then it is either sourcing or sinking power into the rest of the circuit.
What is the difference between a voltage source and a current source inverter?
As their names imply, current source inverters are fed with constant current, while voltage source inverters are fed with constant voltage. Consequently, the output of a CSI drive is adjustable, three-phase AC current, while a VSI drive produces three-phase AC voltage with adjustable magnitude and frequency.
Where is current source inverter used?
high power drives
A current source inverter (CSI) is typically used for high power drives because it can withstand high currents without a short circuit condition and exhibits low dv/dt voltage over the stator windings of a permanent magnet synchronous machine (PMSM) [1] [2].
What is an example of a current source?
Current Source Examples The current source can be made by putting a very high resistance in series with a voltage source. Some examples of Current Sources are – Secondary current in a current transformer, Solar Panels, Semiconductor devices, etc.
What is current source inverter used for MCQ?
Current source inverters are suitable for supplying power to The output voltage of the inverter is independent of the load. The magnitude and nature of the load current depend on the nature of load impedance. It is most suitable for supplying power to capacitive loads.
What is an ideal current source?
An ideal current source is by definition a two-terminal element with the property that the current flowing through the device is specified at every instant in time. This current does not depend on the voltage across the source.
Do current sources provide voltage?
The essence is that a current source provides a reasonably stable(i.e. constant) current and a voltage source provides a predictable voltage (e.g. 12V batteries, 120V wall outlets). You are right in thinking that there is no such thing as an ideal voltage source or ideal current source in the real world.
What is voltage source inverter and current source inverter?
Difference between Voltage Source Inverter (VSI) and Current Source Inverter (CSI)
| VSI (Voltage Source Inverter) | CSI (Current Source Inverter) |
|---|---|
| 4.Input voltage is maintained constant. | 4. The input current is constant but adjustable. |
| 5. An output voltage is independent of load. | 5. An output current is independent of load |
What is CSI inverter?
Definition: Current Source Inverter is a type of inverter circuit that changes the dc current at its input into equivalent ac current. It is abbreviated as CSI and sometimes called a current fed inverter.
Is battery a current source?
A battery is a voltage source, not a current source. Some terminology: what you attach across a source is often referred to as a “load”. Ideal sources are independent of load.
How is a current source obtained?
A current source can be made with a current mirror, where two BJT transistors are biased with the same base-emitter voltage to give the same (well, almost, the difference is two base currents) collector current.
