What is biopotential amplifier?

What is biopotential amplifier?

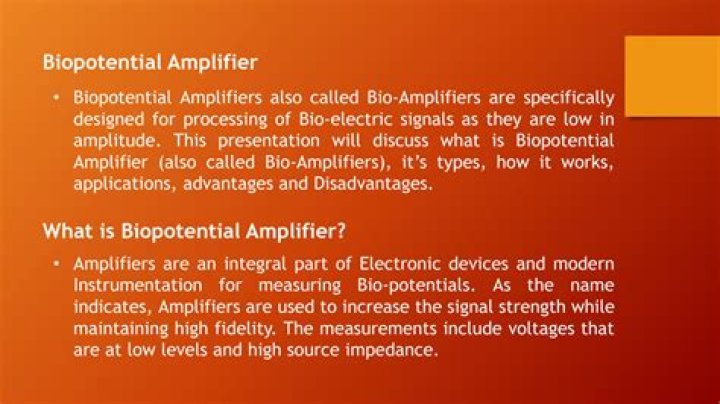

Biopotential Amplifiers also called Bio-Amplifiers are specifically designed for processing of Bio-electric signals as they are low in amplitude.

What is meant by instrumentation amplifier?

An instrumentation amplifier (sometimes shorthanded as in-amp or InAmp) is a type of differential amplifier that has been outfitted with input buffer amplifiers, which eliminate the need for input impedance matching and thus make the amplifier particularly suitable for use in measurement and test equipment.

What do you mean by biological amplifier?

A Bioamplifier is an electrophysiological device, a variation of the instrumentation amplifier, used to gather and increase the signal integrity of physiologic electrical activity for output to various sources.

How many input terminals are there in Biopotential amplifiers?

three input terminals
Explanation: Bio potential has three input terminals. Out of the three one is arranges at the reference potential. The other two are live terminals. Bio potential amplifiers are also known as differential amplifiers.

What is the origin of Biopotential signals?

Biopotentials originate within biological tissue as potential differences that occur between compartments. Generally the compartments are separated by a (bio)membrane that maintains concentration gradients of certain ions via an active mechanism (e.g., the Na+/K+ pump).

What are Biopotential electrodes?

A biopotential electrode is a transducer that senses ion distribution on the surface of tissue, and converts the ion current to electron current. The cations are discharged into the electrolyte, and the electrons carry charge through the lead wires.

Why is instrumentation amplifier used?

Instrumentation Amplifiers An instrumentation amplifier (IA) is used to provide a large amount of gain for very low-level signals, often in the presence of high noise levels. The major properties of IAs are high gain, large common-mode rejection ratio (CMRR), and very high input impedance.

What are features of instrumentation amplifier?

Instrumentation amplifiers are precision, integrated operational amplifiers that have differential input and single-ended or differential output. Some of their key features include very high common mode rejection ratio (CMRR), high open loop gain, low DC offset, low drift, low input impedance, and low noise.

What is a Biopotential?

7.1 Biopotentials as a Property of Living Matter. Bioelectrical potentials or bio potentials represent electrical potentials generated in the tissues or individual cells of living organisms. The bio potentials play the most important role in the process of excitation and inhibition of cells.

How do you calculate differential amplifier gain?

Differential Amplifier Equation If all the resistors are all of the same ohmic value, that is: R1 = R2 = R3 = R4 then the circuit will become a Unity Gain Differential Amplifier and the voltage gain of the amplifier will be exactly one or unity. Then the output expression would simply be Vout = V2 – V1.

What is biopotential signal?

Biopotentials are electrical signals (voltages) that are generated by physiological processes occurring within the body. Biopotentials are produced by the electrochemical activity of a type of cell, called an excitable cell.

How is biopotential generated?

Biopotentials, such as EEG, ECG, and EMG, are generated from volume conduction of currents made by collections of electrogenic cells. EEG, which is measured on the scalp, is the electrical potential induced from collective activities of large number of neurons in the brain.

What are the advantages of biopotential amplifiers?

• Use of biopotential amplifiers – Increase the amplitude (voltage, current, power) of biopotential signals – Isolation of load from source (provides only current gain, leaving the voltage levels unchanged) • Basic requirements of biopotential amplifiers

What is Biobio potential?

Bio Potential  An electric potential that is measured between points in living cells, tissues, and organisms, and which accompanies all biochemical processes.  It describes the transfer of information between and within cells. 3 4.

What is meant by overpotential of electrode?

Overpotential is due concentration.  Example: Platinum electrode  Perfectly Non-Polarizable Electrode Electrodes in which current passes freely across the electrode-electrolyte interface, requiring no energy to make the transition. These electrodes see no overpotentials.  Example: Ag/AgCl Electrode 26
