What is auto-negotiation in Fast Ethernet?

What is auto-negotiation in Fast Ethernet?

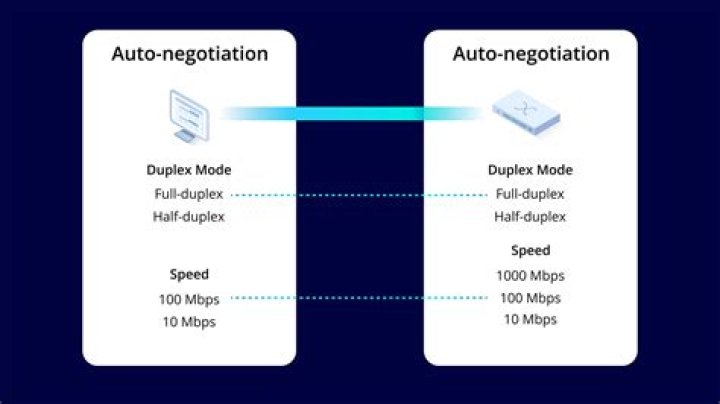

Autonegotiation is a signaling mechanism and procedure used by Ethernet over twisted pair by which two connected devices choose common transmission parameters, such as speed, duplex mode, and flow control. and was originally an optional component in the Fast Ethernet standard.

How do I turn off auto-negotiation on Ethernet?

When using ethtool to disable auto-negotiation for NICs that use the e1000 module, you must also set the line speed and duplex settings at the same time. For example, the command ethtool -s eth0 autoneg off disables auto-negotiation, but only temporarily.

How does Ethernet negotiation speed?

Auto-negotiation is the feature that allows a port on a switch, router, server, or other device to communicate with the device on the other end of the link to determine the optimal duplex mode and speed for the connection. The driver then dynamically configures the interface to the values determined for the link. 1.

How do I set up no negotiation on my car?

To enable the autonegotiation protocol to configure the speed, duplex, and automatic flow-control of the Gigabit Ethernet interface, use the negotiate command in interface configuration mode. To disable automatic negotiation, use the no negotiate auto command.

How do I turn off auto-negotiation?

To disable autonegotiation, you need to explicitly configure the link speed to 10 or 100 Mbps, set no-auto-negotiation , and commit the configuration. For SRX Series devices, when autonegotiatiation is disabled, you can set the mdi-mode to enable it in case of non-cross table.

How do I turn off auto negotiation?

How do I turn on auto negotiation?

To enable or disable auto negotiation To enable auto negotiation, click Yes next to Auto Negotiation, and then click OK. To disable auto negotiation, click No next to Auto Negotiation, and then click OK.

What does no negotiation auto mean?

The auto-negotiation option is only effective when using the GBIC media, it is used to enable the IEEE 802.1z Gigabit Ethernet (1000 Mbps) auto-negotiation protocol, thus the auto-negotiation feature is not supported when using the rj-45 media type (which is your case) and will be ignored if enabled, more over this …
