What is an EI transformer?

What is an EI transformer?

EI transformer is a traditional transformer. The core of EI transformer is combined by lamination E and I, so it is called EI transformer or laminated transformer. It is usually used as power transformer at 50-60Hz. In audio applications, EI transformer is commonly used as tube power transformer and output transformer.

Why lamination is used in transformer?

Why is the transformer core laminated? The transformer core needs to be laminated to reduce the eddy current that has arisen from the induced voltages through the core, thereby reducing the heat loss of the entire core. Therefore the transformer core is laminated to minimize the eddy currents flowing through it.

Are toroidal transformers better?

Standard Transformer. Compared to a traditional laminated transformer, a toroidal transformer provides higher efficiency, a more compact size, and less audible vibrations and hum.

Are toroidal transformers better for audio?

Their major advantage is that they do not radiate much of a magnetic field–a very useful property. While toroidal transformers have one significant advantage regarding radiated magnetic fields, toroids have a number of “problems” that severely limit their performance in high-quality audio equipment.

What is the difference between toroidal transformer and normal transformer?

Toroidal transformers require only a single center bolt to be mounted. This results in quicker and easier mounting of the transformers, thus reducing assembly time by equipment manufacturers. On the other hand, other standard transformers require four screws to be mounted.

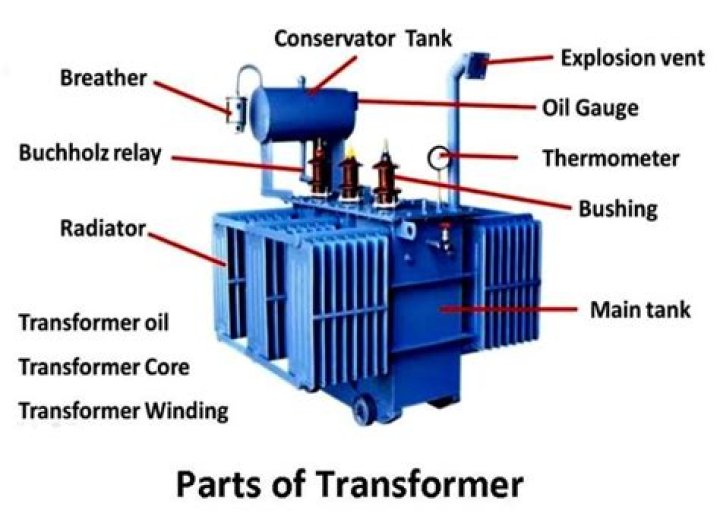

What is the construction of a transformer?

The construction of transformer is of iron core laminated with steel bands. Core laminations are constructed from insulated metal thin metal strips. These laminations are separated and wound around the limb using a sheet of coat or parchment. The winding consists of two types, main and secondary winding.

What is laminated core in transformer?

The iron core of a transformer is laminated with the thin sheet; the laminated iron core prevents the formation of eddy currents across the core and thus reduces the loss of energy.

What is a laminated transformer?

The laminations used in a transformer construction are very thin strips of insulated metal joined together to produce a solid but laminated core as we saw above. The losses of energy, which appears as heat due both to hysteresis and to eddy currents in the magnetic path, is known commonly as “transformer core losses”.

What are the disadvantages of toroidal transformer?

Another disadvantage of the toroidal core is one that occasionally causes problems either during testing or in the field during actual operation. This is the problem of inrush current.

What are toroidal transformers used for?

Toroidal transformers are used in electronic applications that step up or down a voltage or for the isolation of electronic equipment from a source of voltage. Different transformers are used for different applications.

Where are toroidal transformers?

Toroidal inductors and transformers are used in a wide range of electronic circuits: power supplies, inverters, and amplifiers, which in turn are used in the vast majority of electrical equipment: TVs, radios, computers, and audio systems.

What is toroidal transformer used for?

How thick are steel transformer laminations?

These steel transformer laminations vary in thickness’s from between 0.25mm to 0.5mm and as steel is a conductor, the laminations are electrically insulated from each other by a very thin coating of insulating varnish or by the use of an oxide layer on the surface.

What is an e-i core transformer?

For example, two “E” stampings plus two end closing “I” stampings to give an E-I core forming one element of a standard shell-type transformer core. These individual laminations are tightly butted together during the transformers construction to reduce the reluctance of the air gap at the joints producing a highly saturated magnetic flux density.

What are the lamination stampings used in transformer core?

These lamination stampings when connected together form the required core shape. For example, two “E” stampings plus two end closing “I” stampings to give an E-I core forming one element of a standard shell-type transformer core.

How to reduce the power loss of a transformer?

One way to reduce these unwanted power losses is to construct the transformer core from thin steel laminations.
