What is aliasing in Doppler ultrasound

In sonographic. Doppler, the result of aliasing is an apparent change in direction of blood flow in. high-velocity areas, producing flow that appears to be backward. Aliasing can occur in pulsed and color Doppler; continuous-wave.

What is aliasing in spectral Doppler waveform?

Aliasing is a phenomenon inherent to Doppler modalities which utilize intermittent sampling in which an insufficient sampling rate results in an inability to record direction and velocity accurately.

What is aliasing in Colour Doppler?

Aliasing is a phenomenon in pulsed Doppler echocardiography in which when the velocity is beyond a particular limit known as the Nyquist limit, the direction of flow is depicted as opposite to that of the actual one.

What causes aliasing in a Colour Doppler ultrasound image?

Most sonographers encounter aliasing with pulse spectral Doppler or color Doppler. Pulsed ultrasound doesn’t have a particular upper limit for displaying the Doppler shift. It’s commonly known as the Nyquist limit. High-velocity blood circulation causes Doppler shifts beyond the Nyquist limit resulting in aliasing.

How do you fix aliasing?

Try stopping down your lens to its smallest aperture. Small apertures encounter diffraction, which will slightly soften the image and can get rid of aliasing. Move closer or change angles. Another way to remove aliasing if you see it in your original image is to get closer to your subject or change your angle.

What is aliasing phenomenon?

Aliasing phenomenon is a concept that causes a lot of uncertainty for many of us. … We see examples of aliasing in both colour and spectral Doppler, where the velocity exceeds the Nyquist Limit and the image displayed would suggest flow is heading in the opposite direction.

What means aliasing?

Definition of aliasing : an error or distortion created in a digital image that usually appears as a jagged outline We commonly observe aliasing on television.

What aliasing looks like?

Aliasing is basically a form of undersampling. The undersampled waveform is constructed to look like a slower frequency waveform or a flat line when the sample rate is the same as the frequency of your signal. You can detect aliasing by running a horizontal test on your oscilloscope.

What is meant by aliasing artifact?

In MRI, superimposition of a tissue image from outside the field of view on the opposite side of the desired image, usually in the phase-encode direction, due to an inadequate number of phase-encoding measurements for the size of the field of view.

What is color aliasing?

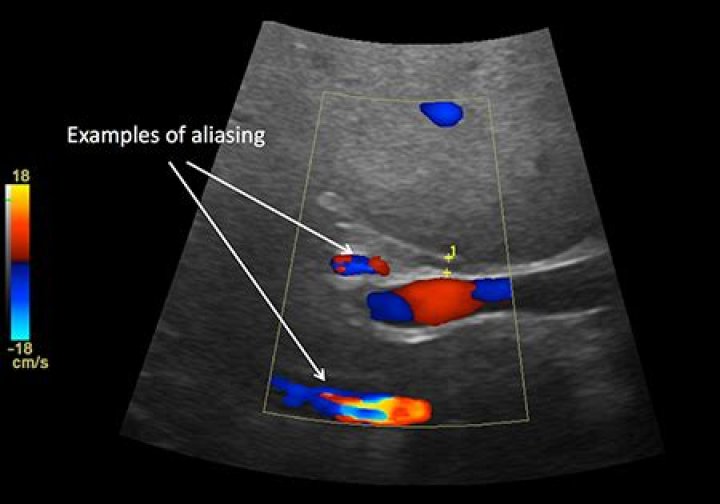

Aliasing. Aliasing arises when the Doppler shift of the moving blood is higher than half of the PRF (Nyquist limit). Aliased signals are displayed with the wrong direction (red instead of blue and vice versa) and velocity (the hue of the colour) (Fig.

Article first time published on

What is aliasing effect in sampling?

Aliasing is an effect of the sampling that causes different signals to become indistinguishable. Due to aliasing, the signal reconstructed from samples may become different than the original continuous signal. This can drastically deteriorate the performance if proper care is not taken.

What is reverberation in ultrasound?

A: Reverberation artifact occurs when an ultrasound pulse gets “trapped” between two strong parallel reflectors. The wave reflects back and forth between the reflectors (“reverberates”). The waves that return to the transducer are interpreted as deeper structures since they arrive to the transducer at a later time.

What is a frame in ultrasound?

This image is known as a frame. Multiple frames produced in rapid succession form the moving or real-time image we see on the ultrasound monitor. Frame rates in modern systems are typically 10 – 30 frames per second and a flicker free image is achieved using electronic smoothing techniques.

Why is aliasing a problem?

Aliasing errors occur when components of a signal are above the Nyquist frequency (Nyquist theory states that the sampling frequency must be at least two times the highest frequency component of the signal) or one half the sample rate. … Aliasing errors are hard to detect and almost impossible to remove using software.

What are the types of aliasing?

• SSAA (Supersample Anti-Aliasing)
• MSAA (Multi-Sampling Anti-Aliasing)
• CSAA (Coverage Sampling Anti-Aliasing)
• EQAA (Enhanced Quality Anti-Aliasing)
• FXAA (Fast Approximate Anti-Aliasing)
• TXAA (Temporal Anti-Aliasing)

Which of the following is the process of aliasing?

Which of the following is the process of ‘aliasing’? Explanation: Aliasing is defined as the phenomenon in which a high frequency component in the frequency spectrum of the signal takes the identity of a lower frequency component in the spectrum of the sampled signal.

What is aliasing When is aliasing occurred?

Aliasing occurs when you sample a signal (anything which repeats a cycle over time) too slowly (at a frequency comparable to or smaller than the signal being measured), and obtain an incorrect frequency and/or amplitude as a result.

What is aliasing Mcq?

Aliasing refers to the sampling of signals less than at Nyquist rate. Nyquist rate states that the rate of sampling of signal should be greater than or equal to twice the bandwidth of the modulating signal.

Where is aliasing used?

Sometimes aliasing is used intentionally on signals with no low-frequency content, called bandpass signals. Undersampling, which creates low-frequency aliases, can produce the same result, with less effort, as frequency-shifting the signal to lower frequencies before sampling at the lower rate.

Why is aliasing useful?

However, aliasing also conveys valuable information on the signal above the Nyquist frequency. Hence, an effective processing of the samples, based on a model of the input signal, would virtually allow the sampling frequency to be increased using slower and cheaper converters.

What is Geeksforgeeks aliasing?

The aliasing effect is the appearance of jagged edges or “jaggies” in a rasterized image (an image rendered using pixels). The problem of jagged edges technically occurs due to distortion of the image when scan conversion is done with sampling at a low frequency, which is also known as Undersampling.

What causes aliasing artifact?

Aliasing or wrap-around corresponds to overlapping on the opposite side of the image of signals outside of the FOV. It is caused by a corruption in the spatial encoding of objects outside the FOV which cannot be distinguished from objects inside the FOV.

What is aliasing in echocardiography?

Aliasing is an imaging error when information of velocity of the blood flow is higher than the Nyquist velocity. The Nyquist velocity may set on color Doppler echocardiography tools. The blood flows velocity displays as scale and direction in the range of Nyquist velocity.

How do you find aliasing frequency?

A simple rule to predict this aliased frequency is: decrement fo by fs enough times to get within the observable frequency range of [−fN , fN ]. The absolute value of this result is the aliased frequency. Sampling at 5.5kHz gives a time step of 0.182 milliseconds.

Is aliasing reversible?

Explanation: Aliasing is an irreversible process. Once aliasing has occurred then signal can-not be recovered back.

What is aliasing audio?

Audio Aliasing is an effect which occurs when converting an analogue signal into a digital one with an insufficient sampling frequency.

What is aliasing in CT?

The distortions that arise on account of insufficiency of data are usually called the aliasing distortions. Aliasing distortions may also be caused by using an undersampled grid for displaying the reconstructed image.

What is B mode sonography?

B-Mode is a two-dimensional ultrasound image display composed of bright dots representing the ultrasound echoes. The brightness of each dot is determined by the amplitude of the returned echo signal.

What is power Doppler used for?

Definition: power Doppler. An ultrasound technique that is used to obtain images that are difficult or impossible to obtain using standard color Doppler and to provide greater detail of blood flow, especially in vessels that are located inside organs.

How do you avoid aliasing?

The solution to prevent aliasing is to band limit the input signals—limiting all input signal components below one half of the analog to digital converter’s (ADC’s) sampling frequency. Band limiting is accomplished by using analog low-pass filters that are called anti-aliasing filters.

What is the difference between comet tail and ring down artifact?

Comet-tail artifacts can be seen in normal and abnormal lungs and are described in more detail in Chapter 9 . Ring-down artifact is similar to comet-tail artifact but is produced by a different mechanism ( Figure 6.3 ). The source of ring-down artifact is a small pocket of fluid trapped by surrounding air bubbles.
