What is a worm drive saw

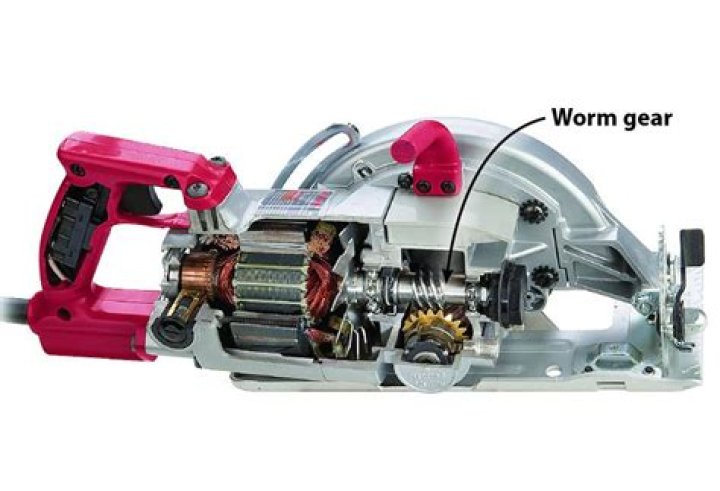

What is a Worm drive saw? A worm drive saw has the motor attached at the rear. This is very powerful and its power is driven through two gears each set at 90 degrees. This setting implies that the engine produces more torque but less Rotation Per Minute (RPM) of about 4,500.

What are the benefits of a worm drive?

Longer lasting, great sightlines for many users, more torque, accuracy and power – these are top advantages of the worm-drive power saw. The main drawback is the weight issue.

Why are there no worm drive saws in the UK?

Worm drive saws don’t comply with European H&S regulations and are therefore illegal to use.

Why are worm drive saws left handed?

Traditionally, all worm drive saws operated in a blade-left orientation. Furthermore, this orientation likely places the weight of the saw over the portion of the material the user wants to keep, making it easier to stabilize the saw during the cut.

What are the drawbacks of worm gear drives?

The main disadvantage of worm drives is their low performance offered by these gearbox stages, which can be close to 15% due to the high friction and associated axial stresses.

How does a worm drive work?

How Worm Gears Work. An electric motor or engine applies rotational power via to the worm. The worm rotates against the wheel, and the screw face pushes on the teeth of the wheel. The wheel is pushed against the load.

What's the difference between a worm drive and a regular circular saw?

Regular circular saws have an RPM of 6,000 or higher while worm drive saws have an RPM of not more than 4,500. This difference of RPM is however balanced when it comes to torque. Worm drive saws offer more durability and power because they have larger teeth which have a more loading capacity than regular circular saws.

Do worm gears increase torque?

Worm gears can be used to either greatly increase torque or greatly reduce speed. They are also the smoothest and quietest of the gear systems, as long as they are properly mounted and lubricated.

What special maintenance does a worm drive saw require?

However, hypoid saws and sidewinder circular saws have sealed bearings and don’t require any maintenance. Worm-drive saws have an oil-bath gearbox meant to provide cooling and lubrication to the gears that transfer motor power to the sawblade. The oil eventually gets contaminated through use.

Is worm and worm wheel reversible?

Unlike with ordinary gear trains, the direction of transmission (input shaft vs output shaft) is not reversible when using large reduction ratios. This is due to the greater friction involved between the worm and worm wheel, and is especially prevalent when a single-start (one spiral) worm is used.

Article first time published on

Is it possible to use worm gears in cranes for lifting purpose?

Is it possible to use worm gears in cranes for lifting purpose? Explanation: Worm gears support self-locking operation and hence are advantageous to use in lifting operations. 5. The power transmitting capacity of worm gears is high although efficiency is low.

What is the advantage of a rear handle circular saw?

Because of the placement of the motor, Rear Handle Circular Saws get a heck of a lot more torque than a standard Sidewinder Circ Saw. Sidewinders get more RPM’s, but the torque and power beats speed when you’re cutting into hardwoods with a Worm Drive (rear handle) saw.

What is a worm classified as?

Both worms and insects are classified under the Kingdom Animalia. The animal kingdom is split into two groups: vertebrate, animals with a backbone, and invertebrate, animals without a backbone. Both worms and insects are invertebrates.

Is there a left and right handed circular saw?

From what I’ve seen these past few years, corded circular saws are mainly right-handed saws. There are some brands, such as Milwaukee, that offer both right- and left-handed saws. Worm drive saws are typically left-handed. Cordless circular saws are typically left-handed as well.

Do worm gears have backlash?

A Worm gear pair has a different circumferential backlash for each drive and driven gear (worm and wheel) and it is a feature of a worm gear pair. Table 6.5 Calculation example for backlash screw gear meshes.

When should I use worm gear?

This makes worm gears suitable for use where noise should be minimized, such as in elevators. … The primary benefit of worm gears is their ability to provide high reduction ratios and correspondingly high torque multiplication. They can also be used as speed reducers in low- to medium-speed applications.

Can you back drive a worm gear?

Self-locking means that the gear cannot drive the worm. In other words, back driving is not possible. … In theory, as long as the coefficient of friction between the gear and the worm is larger than the tangent of the worm’s lead angle, the worm gear is considered self-locking and will not back drive.

Do worm drive saws need oil?

Given their legendary reliability, you’d think you could run your worm-drive saw forever without any maintenance, but that’s not the case. Worm-drive saws need their gear-oil changed regularly because it gets dirty through use.

Should you oil a circular saw?

Circular saws can be used for all types of wood product cutting–lumber, plywood and paneling. The saws can cross-cut and rip cut. … The blade doesn’t need to be oiled very often; you can coincide the oiling with blade replacement, but a spot of oil on the inner washers will keep the saw running better and more safely.

Can worm gears move in two directions?

Yep, they are designed to work in both directions of revolution of the motor. However, normally, a helical worm gear-unit cannot be back-driven (that’s why they are used for conveyors, so that the wont slip in reverse in case of a power failure).

What are the pros and cons of worm and wheel drive?

• Moderate Efficiency.
• Large package in design.
• Relatively costly to fabricate.

Where would a worm gear be used?

Space Saving Applications – Worm gears are also used in the manufacturing and packaging industries. They are used in packaging equipment, small machinery, and conveyors. They are ideal for these types of equipment because they have fewer gear sets which achieve high gear ratios.

Why is it called a worm gear?

The reason why the worm gear is called a worm gear is derived from bionics. … Worm gear mechanisms are commonly used to transmit motion and power between two staggered shafts. The worm gear and the worm are equivalent to the gear and the rack in the middle plane, and the worm is similar in shape to the screw.

Why is the efficiency of worm gear drive low?

The worm gear and worm wheel have non-intersecting, perpendicular axes, and the meshing action between gears occurs over a relatively large contact area. This meshing action consists primarily of a sliding motion that creates friction between the gears. … This higher contact causes higher friction and lower efficiency.

What is material for worm and worm wheel?

MATERIALS for worm and worm gears are generally confined to steel for worms and bronze or cast iron for gears. When steel worms are run with bronze gears at high speeds, the worm is usually hardened with ground threads. There is often some confusion as to the self-locking ability of a worm and gear set.

Can you transmit power between shafts lying in different planes using gears?

3. Is it possible to transmit power between shafts lying in different planes using gears? Explanation: Worm or crossed helical gears can be used in this case for power transmission.

What is the Centre distance for the worm gear?

Worm gears, right-hand centre distance 53 mm | norelem.

Which of the following creates smoother motion?

3. Which of the following creates smoother motion? Explanation: Spiral bevel gear has smooth engagement which results in quieter operation.

What is Milwaukee's Best circular saw?

Best Overall Circular Saw The Milwaukee M18 is a cordless circular saw for those who want high-end results. This saw impressed all as it makes full-depth crosscuts without any sign of difficulty.

What is a sidewinder circular saw?

A sidewinder, as the name implies, has the motor on one side of the saw. A worm-drive motor is at the rear of the saw, and its power is transferred to the blade with a pair of gears that are oriented at a 90 degree angle. … Obviously, this motor position leads to a longer saw, but it’s also significantly heavier.
