What is a VGA D-Sub port?

What is a VGA D-Sub port?

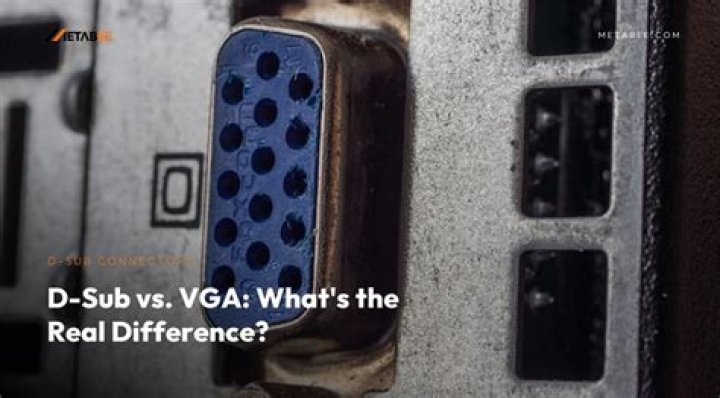

When used as a monitor interface, a D-Sub port is also known as a VGA port, an analog connection standard that’s been around for some time. The connector is a DE-15 connector with 15 pins in three rows, often referred to as a “mini-D-Sub 15-pin” or “D-Sub 15-pin” connector. (Some connectors omit unused pins.)

Can I connect VGA to D-Sub?

To directly answer your question, no but the 15 pin D Sub connector is the one used for VGA output. VGA is an analog transmission type standing for Video Graphics Adapter and the connections use a 15 pin D-Sub connector but there are a whole series of connectors in the D-Sub family.

What is the D port on my monitor?

At its core, DisplayPort is a digital interface designed to deliver video and audio over a singular cable. Much like HDMI, it can connect a monitor to a data source, like a graphics card, and deliver the video and sound that it’s outputting to the display screen.

What is a D-Sub connector used for?

D-SUB 37 connectors are commonly used in Hospital facilities as an interface between hospital beds and nurse call systems, allowing for the connection and signaling of Nurse Call, Bed Exit, and Cord out including TV entertainment and lighting controls.

Is D-Sub or HDMI better?

HDMI: Audio and video signal, best for TV to PC connections. DVI: Video only, perfect for older systems or for 144Hz at 1080p. DisplayPort (DP): The best connector for an audio and video signal, and can transmit 144Hz up to 4K. VGA: Old, legacy video connector.

Is D-Sub the same as DVI?

The difference between DVI and D-Sub is that DVI is designed to transmit both analog and digital signals whereas D-Sub only transmits digital signals. This difference also makes a great difference in their video output quality.

Can D-Sub convert to HDMI?

Connect your VGA/D-Sub cable to a HDMI port. To stream files, such as videos, from a device with a D-Sub to another device with only a HDMI port, you will need to convert the signal with a VGA/D-Sub to HDMI converter box. VGA/D-Sub to HDMI converters are available for purchase from a variety of retailers.

Can D-Sub do 1080p?

Judicious. Yes, VGA can support 1080p 60Hz, just be sure not to use a too long cable as that can degrade the quality of the picture when using analog cables (like VGA/D-sub).

How do I hook up my D-Sub cable?

Connect the D-Sub cable into the compatible “VGA” port on the device. The pins on the cable connection will need to fit into the corresponding holes in the port. Tighten the two outer pins that frame the D-Sub connection into the two corresponding outer pin holes on the VGA/D-Sub port.

Is D-sub port the same thing as VGA port?

When used as a monitor interface, a D-Sub port is also known as a VGA port, an analog connection standard that’s been around for some time. The connector is a DE-15 connector with 15 pins in three rows, often referred to as a “mini-D-Sub 15-pin” or “D-Sub 15-pin” connector.

Is D sub the same as VGA?

A connector used to send VGA signals will always be a D-sub 15, but a D-sub 15 will not necessarily always send VGA signals (although 99.999% of the time, that’s what Dsub 15 is used for). Here’s the caveat: VGA-type analog signals can and are commonly sent through other connectors like DVI-I and DVI-A connectors.

What are D sub ports?

D-Sub ports are used for connecting external devices to a computer. They are an older method of connection, but some modern computers still contain them.

What is a VGA D sub cable?

In its simplest sense, a VGA (Video Graphics Array) port is a high density d-sub 15-pin three rows connector, D-subminiature style port usually located on the back or side of a laptop computer or the back of a desktop system. Users employ VGA ports to transfer analog video signals from one machine to another using VGA cables.
