What is a lead screw on a lathe

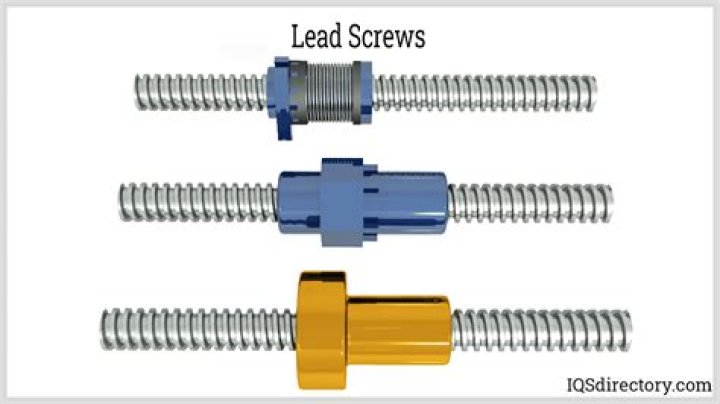

A leadscrew (or lead screw), also known as a power screw or translation screw, is a screw used as a linkage in a machine, to translate turning motion into linear motion. … Leadscrews are commonly used in linear actuators, machine slides (such as in machine tools), vises, presses, and jacks.

What lead screw is used for?

A lead screw (or leadscrew), sometimes called a power screw or translation screw, is used to translate turning motion into linear motion. Lead screws can be manufactured by rolling, cutting, or grinding the threads.

What thread is lead screw on lathe?

ACME thread: It has an included angle of 29°. These are used in lathe lead screws.

What is the purpose of lead screw and feed rod in a lathe machine?

The feed rod transmits power from the headstock to the carriage for feeding operations. The lead screw transmits power from the headstock to the carriage for screw thread cutting operations.

What is the difference between feed rod and lead screw in lathe?

The main difference is that feed rod is used for turning operation and lead screw is used for threading operation in a lathe machine.

What is the difference between lead screw and ball screw?

The key difference between a ball screw and a lead screw is in the way the load is carried between the moving surfaces. A ball screw uses recirculating ball bearings to minimize friction and maximize efficiency while a lead screw depends on low coefficients of friction between sliding surfaces.

What is lead in lead screw?

Lead is the axial advance of a helix or screw during one complete turn (360°) The lead for a screw thread is the axial travel for a single revolution. … In these screws, the lead is equal to the pitch multiplied by the number of “starts”.

What does the spindle do on a lathe?

Lathe spindles are used for machine-cutting of workpieces. They can also be referred to as workpiece spindles, as the workpiece is clamped via the chuck of the lathe spindle. The rotating workpiece is machined by the tool attached to the driven machine axis.

What is feed screw in lathe machine?

Feed rod is a power transmission mechanism used for precise linear movement of the carriage along the longitudinal axis of the lathe. Such lathe machines generally have a lead screw as well for thread cutting (refer to the figure below).

What does a cross slide do on a lathe?

The cross slide is a component found on the top of a lathe that allows the tool bit to slide back and forth.

Article first time published on

How many types of threads are there?

Six Most Common Types of Threads NPT/NPTF. BSPP (BSP, parallel) BSPT (BSP, tapered) metric parallel.

What is single start thread?

Single-start thread: the screw thread having the lead equal to the pitch. See also pitch, lead, and screw thread. Additional Discussion: Single-start threads are most common, and are more useful for general fastening needs.

Which type of thread is used for power screws?

Buttress Thread: In this thread, one flank is perpendicular to the axis of the thread and the other flank is at 45°. These threads are used in the power press, carpentry vices, gun breeches, ratchets, etc. It can transmit load and power in one direction only.

What is cutting speed in lathe?

Cutting speed is defined as the speed at which the work moves with respect to the tool (usually measured in feet per minute). … Cutting speed and feed determines the surface finish, power requirements, and material removal rate.

What is the difference between steady rest and follower rest?

Steady rests and follower rests hold a long workpiece steady during turning. Steady rests are mounted to the lathe bed and do not move with the lathe. … Follower rests are so named because they attach to the saddle (the lathe component that holds the tool) and move along with or “follow” the lathe.

What are the advantages of automatic lathes?

• Accurate – Sliding headstock automatic lathes are known for their extreme accuracy and precision. …
• Production – Sliding headstock automatic lathes can produce complete parts without much interference from a human operator.

What is lead screw nut?

The Screw Nut is a sliding feed nut compatible with the standards for a 30-degree trapezoidal screw thread. Formed by die-casting special bearing alloy of superb abrasion resistance, it is an inexpensive high precision product.

What is lead screw start?

The number of starts refers to the number of threads that are wrapped around the axis of the lead screw. Each thread has its own starting point and is visible by looking at the end of the shaft. When a lead screw has more than one start, it is referred to as a multi-start lead screw.

What are lead screws made of?

Lead screws are commonly made from carbon steel, stainless steel, or aluminum. The addition of a PTFE-type coating protects the screw and provides lubrication for the nut.

How accurate are lead screws?

The efficiency of ball screws is relatively constant and is typically better than 90%. The efficiency of lead screws, on the other hand, typically ranges between 20% and 80%. The efficiency of a lead screw is highly dependent upon its helix angle. As a general rule, higher helix angles mean higher efficiency.

What is thread lead?

Thread lead is the distance between threads, measured on a plane parallel to the centerline of the threaded part. The pitch of the thread determines the diameter of the contact points required for taking measurements.

What is Acme lead screw?

Acme screws are lead screws that are designed to translate rotary motion into linear motion. They have a trapezoidal thread profile with a standard included angle of 29 degrees (some Helix Linear screws use 40 degrees). Unlike roller and ball screws, Acme screws operate using sliding contact.

What is the purpose of lead screw in milling machine Mcq?

Explanation: The lead screw obtains rotary motion from the working spindle. The lead screw drives the tool post axially against the workpiece to produce a helical groove. in thread cutting.

What is a half nut on lathe?

A split nut assembly is often used in positioning systems, for example in the leadscrew of a lathe. … The two halves of the nut have chamfered ends (60° to axis), which helps the threads to find engagement during the closing action. Usually the screw and nut are also oiled for lubrication.

What form of thread is suitable for lead screws of machine tools?

Explanation: Acme threads are used in lathe lead screws. This form of thread enables the easy engagement of the half nut. The metric acme thread has an included angle of 30°.

What is the difference between spindle and chuck?

is that chuck is (cooking) meat from the shoulder of a cow or other animal or chuck can be (dialect|obsolete) a chicken, a hen or chuck can be or chuck can be (scotland) a small pebble while spindle is (spinning) a rod used for spinning and then winding natural fibres (especially wool), usually consisting of a shaft …

What are the two main purposes of the lathe spindle?

The bed, the headstock, the tailstock, and the carriage. What are the two main purposes of the lathe spindle? To hold and rotate the workpiece during machining. You just studied 9 terms!

What is a lathe spindle called?

In machine tools, a spindle is a rotating axis of the machine, which often has a shaft at its heart. … These are called multispindle machines. For example, gang drills and many screw machines are multispindle machines.

What does swing mean on a lathe?

Swing indicates the maximum diameter workpiece you can turn on a lathe. Measure from the top of the bed to the center of the spindle and then double that value. Similarly, the bed measurement is the maximum length of the workpiece that you can turn.

What is swing saddle?

– The swing over carriage can be defined as the maximum diameter of workpiece that can be rotated over lathe saddle. – The swing over carriage is one of the parameters to measure the size of a lathe.

What does distance between centers mean on a lathe?

Distance between centers. The longest piece of work that be held between a center in the headstock and a center in the tailstock. (see glossary below for more information). This is the second of the two numbers used to describe the lathe size.
