What is a GM 1 wire alternator?

Simple, One-Wire Hook Up. As you might assume, the concept behind a one-wire alternator is that there is a single wire used to connect the alternator to the battery. The voltage regulator is internal, and there are no other wires that need to be connected to your electrical system.

How many amps is a GM one wire alternator?

What vehicle has a 1 wire alternator?

Almost all internal regulator GM and all Ford internal regulator alternators can be wired to use 1 wire. Just get the plug that comes with the alternator and jumper the right wires. GM’s are more common because you only have to jumper one wire and you could find them anywhere. And all alternators turn ONE WAY!!!!

How do you hook up a GM single wire alternator?

How to Install a 1-Wire GM Alternator

Disconnect the negative battery cable at the battery.
Mount the alternator to the engine.
Follow the battery positive cable from the battery to where it is connected on the starter relay.
Reconnect the negative battery cable to the battery.

How do I know if my alternator is 1 wire?

1-wire alternators will not have a way to hook up a warning light, but most custom applications work well with a voltage gauge in its place. The cut in speed (the speed at which the regulator begins to charge) will be slightly higher (1200rpm or higher) than most alternators which means they do not charge at idle.

What is a GM one wire alternator?

GM 1 Wire Alternator. A 1-wire alternator offers a simplified installation and clean setup. It has one wire that connects the charge terminal directly to the battery or a 12V source. They are internally regulated and grounded through the block.

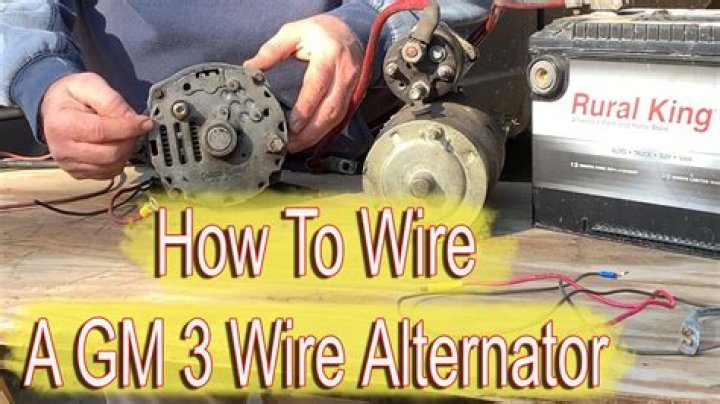

What are the 3 wires on a GM alternator?

The three wire types in a three-wire alternator include the battery positive wire, the voltage sensing wire, and the ignition input wire. The battery positive wire connects to the starter. The voltage sensing wire connects to the battery, and the ignition wire connects from the alternator to the key switch.

How to wire alternator?

Check your alternator to find the number of terminals it has. It’s typically likely to be three,but no more than four.

Locate the terminal on the alternator labeled “B”,”Bat” or “Pos.” All alternators have this terminal.

Find the terminal on the alternator labeled “Neg”,”F” or “Field.” This is the ground connection.

What is a 1 wire alternator?

A one wire alternator is used where you do not want to have any connection from a vehicle to operate an alternator. It will self-excite, meaning that it can start charging and stop charging all on its own. The only connection needed for a 1-wire alternator is the output charge cable.

What is a single wire?

A wire is a single, usually cylindrical, flexible strand or rod of metal. Wires are used to bear mechanical loads or electricity and telecommunications signals. Wire is commonly formed by drawing the metal through a hole in a die or draw plate.

What gauge wire for ignition switch?

The run wire should be 10-gauge, the accessories wire 12-gauge, and the start wire 14-gauge. Install the wire on the ignition switch and tighten the retaining screws with a wrench. Route the wires to the fuse box location and install the wires on the box. Different fuse panels have different attachment methods.
