What is a branch circuit in wiring?

What is a branch circuit in wiring?

A branch circuit is defined as that part of an electric circuit extending beyond the last circuit breaker or fuse. The branch circuits start at the breaker box and extend to the electrical devices connected to the service. Branch circuits are the last part of the circuit supplying electrical devices.

Are multi wire branch circuits legal?

The National Electrical Code permits multiwire branch circuits, but adds requirements to make them safer. Section 210.4(B) states that in the panelboard where the branch circuit originates, all ungrounded conductors must be provided with a means to disconnect them simultaneously.

What are the three types of branch circuits?

There are several different types of branch circuits in your home. Dedicated appliance circuits. Lighting circuits. Outlet circuits.

What is an example of a branch circuit?

Branch Circuit: Any circuit that extends beyond the final overcurrent protective device is called a branch circuit. This includes circuits servicing single motors (individual) and circuits serving many lights and receptacles (multiwire).

What is a branch circuit components?

A branch circuit consists of the conductors between the final overcurrent protection device and the outlet(s). It consists of the conductors between the final overcurrent protection device (OCPD) and the receptacle outlets, lighting outlets, or other outlets [Art.

What is a 2 wire branch circuit?

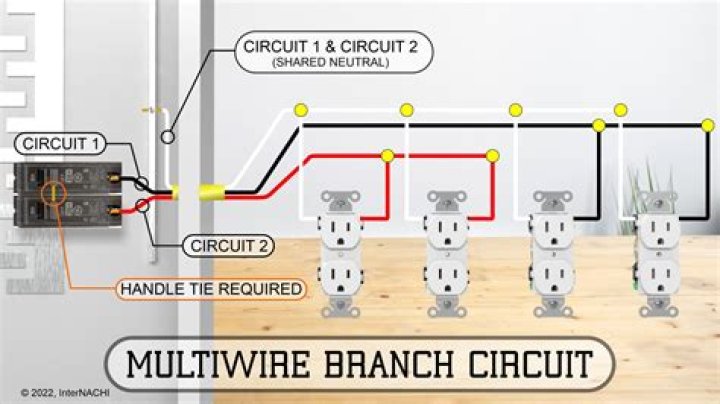

A Multiwire Branch Circuit (in the electrical code) is defined as a branch circuit that consists of two or more ungrounded conductors (two or more “hot” wires) that have a voltage between them (they are not on the same electrical phase and so are connected to different buses in the electrical panel), and a grounded …

What is the difference between a branch circuit and a feeder?

Branch circuits are not feeders. A branch circuit is defined as, the circuit conductors between the final overcurrent device protecting the circuit and the outlet(s). So, feeder conductors are conductors that are not service conductors and not branch circuit conductors.

How many branch circuits can share a ground?

The code requires each branch circuit to have an equipment ground (either a wire, or conduit, or cable tray as in 250.120A), they can be shared when they are in the same raceway. If all the 20A circuits are in one raceway then you just need one ground.

Can you overload neutral wire?

Overloading Of The Grounded (Neutral) Conductor. Failure to properly terminate the ungrounded (hot) conductors to separate phases could cause the grounded (neutral) conductor to become overloaded from excessive neutral current, and the insulation could be damaged or destroyed.

How many receptacles can be on a branch circuit?

Technically, you can have as many outlets on a 15 amp circuit breaker as you want. However, a good rule of thumb is 1 outlet per 1.5 amps, up to 80% of the capacity of the circuit breaker. Therefore, we would suggest a maximum of 8 outlets for a 15 amp circuit.

How is a branch circuit protected?

As a branch circuit protection device, UL 489 circuit breakers are tasked with protection of the circuit wiring. Their purpose is to help prevent electric shock and fire, and to provide a means for electrical isolation during maintenance periods.

What size of wires to be used for branch circuit?

The minimum number of 20-ampere, 2-wire general-purpose branch circuits for lighting and receptacles in this dwelling is three. Be careful when calculating the minimum number of 20-ampere branch circuits. At least one 20-ampere laundry circuit and at least two 20-ampere small-appliance branch circuits are required.

NEC Article 100 also tells us that there are four (4) types of branch circuits: Branch Circuit: appliances Branch Circuit: general purpose Branch Circuit: individual Branch Circuit: multi wires

What is a branch circuit in an electrical circuit?

Nodes, Branches, and Loops Branches //. A branch represents a single element such as a voltage source or a resistor. In other words, a branch represents any two-terminal element. Nodes //. A node is the point of connection between two or more branches. Loops //. A loop is any closed path in a circuit. Node Voltage Problems in Circuit Analysis (VIDEO)

Is an outlet considered part of branch circuit wiring?

A branch circuit is a portion of a wiring system that extends beyond the final, automatic overcurrent protective device (i.e., fuse or breaker) which qualifies for use as branch-circuit protection, and terminates at the utilization device or outlet (such as a lighting fixture, motor, or heater).
