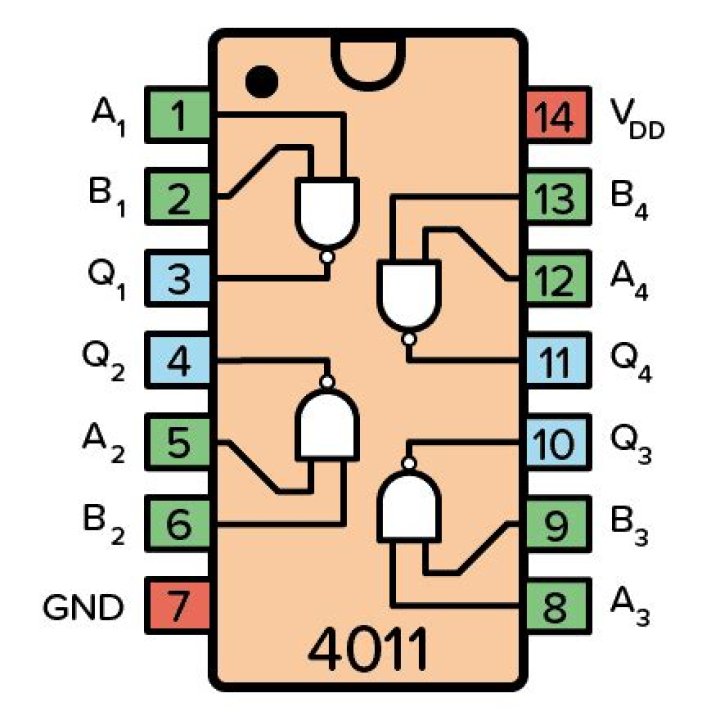

What is a 4011 chip?

The CD4011 is a CMOS chip with four NAND gates. Because each gate has two inputs and it has 4 gates inside, it’s usually called a Quad 2-Input NAND Gate. A NAND gate combines the functionality of AND and NOT gates. It gives a LOW output only when all inputs are HIGH; otherwise, the output is LOW.

What is cd4011be?

ACTIVE. For some products, newer alternatives may be available.

Which IC is for NAND gate?

The standard, 4000 series, CMOS IC is the 4011, which includes four independent, two-input, NAND gates.

What is the part number for a two-input NAND gate IC *?

CD4011 is a 2-input 4 NAND gate IC and used in many electronic circuits. CD4011 used for performing the Logic NAND function.

What is NOR gate IC?

A NOR gate (“not OR gate”) is a logic gate that produces a high output (1) only if all its inputs are false, and low output (0) otherwise. Hence the NOR gate is the inverse of an OR gate, and its circuit is produced by connecting an OR gate to a NOT gate.

How do I use IC 4017?

To use the IC, just connect it according to the specifications described above in the pin configuration and give the pulses you need to count to the pin-14 of the IC. Then you can collect the outputs at the output pins. When the count is zero, Pin-3 is HIGH.

What NAND means?

What does NAND stand for? Surprisingly, NAND is not an acronym. Instead, the term is short for “NOT AND,” a boolean operator and logic gate. The NAND operator produces a FALSE value only if both values of its two inputs are TRUE.

What is NAND operation?

The NAND operation is the basic logical operation performed by the solid-state transistors (“NAND gates”) that underlie virtually all integrated circuits and modern computers. The first axiom system based on NAND was given by Henry Sheffer in 1913.

Does NAND gate have 4 inputs?

As with the AND function seen previously, the NAND function can also have any number of individual inputs and commercial available NAND Gate IC’s are available in standard 2, 3, or 4 input types. If additional inputs are required, then the standard NAND gates can be cascaded together to provide more inputs for example.

How do you make AND gate with NAND?

AND: You can create an AND gate by using two NAND gates. The first NAND gate does what NAND gates do: returns LOW if both inputs are HIGH and returns HIGH if both inputs are anything else. Then the second NAND gate is configured as a NOT gate to invert the output from the first NAND gate.

What is NOR and NAND?

A NAND gate is equivalent to an inverted-input OR gate. Page 5. An AND gate is equivalent to an inverted-input NOR gate. A NOR gate is equivalent to an inverted-input AND gate. An OR gate is equivalent to an inverted-input NAND gate.

How do you convert NOR to NAND?

To make a NOR gate perform the NAND function, we must invert all inputs to the NOR gate as well as the NOR gate’s output. For a two-input gate, this requires three more NOR gates connected as inverters.
