What is a 3 phase circuit?
Three-phase power is a three-wire ac power circuit with each phase ac signal 120 electrical degrees apart. Residential homes are usually served by a single-phase power supply, while commercial and industrial facilities usually use a three-phase supply.
What is the three-phase formula?
3-Phase Calculations For 3-phase systems, we use the following equation: kW = (V × I × PF × 1.732) ÷ 1,000. Again, assuming unity PF and solving this equation for “I,” you get: I = 1,000kW ÷ 1.732V.
What are 3 phase circuits used for?
A three-wire three-phase circuit is usually more economical than an equivalent two-wire single-phase circuit at the same line to ground voltage because it uses less conductor material to transmit a given amount of electrical power. Three-phase power is mainly used directly to power large motors and other heavy loads.
What are the three types of phases?
The three fundamental phases of matter are solid, liquid, and gas (vapour), but others are considered to exist, including crystalline, colloid, glassy, amorphous, and plasma phases. When a phase in one form is altered to another form, a phase change is said to have occurred.
What is 240V 3 phase?
It supplies power at around 240 volts and is used in homes and businesses for most appliances and lighting. 3 phase power has four wires; three actives and one neutral, and supplies power at both 240V and 415V. When we bring 3 phase supply into a home it triples the amount of power available.
What is power factor in 3 phase?
Three-Phase Power Formula This simply states that the power is the square root of three (around 1.732) multiplied by the power factor (generally between 0.85 and 1, see Resources), the current and the voltage.
What is a 3 phase 4 wire system?
Three phase, 4-wire distribution system This system uses star connected phase windings and the fourth wire or neutral wire is taken from the star point. If the voltage of each winding is V, then the line-to-line voltage (line voltage) is √3V and the line-to-neutral voltage (phase voltage) is V.
What is the 3 phase voltage in India?
400 V
Three-phase electric power (industrial applications only)
| Country | Three-phase voltage (volts) | Frequency (hertz) |
|---|---|---|
| India | 400 V | 50 Hz |
| Indonesia | 400 V | 50 Hz |
| Iran | 400 V | 50 Hz |
| Iraq | 400 V | 50 Hz |
What is a three phase circuit?

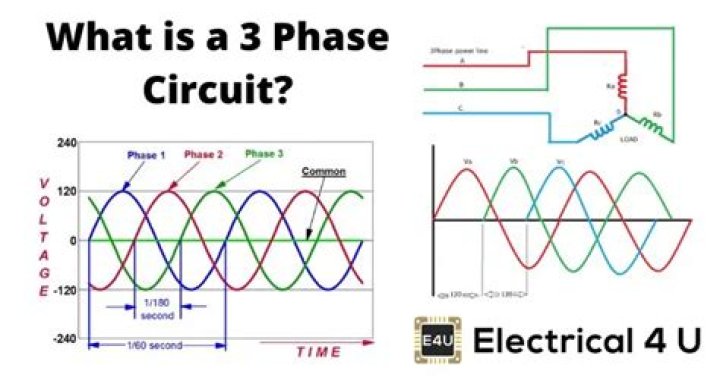

Three-phase circuits of voltage supplies are the three connected voltage supplies, with the same magnitude of amplitude and frequency, but shifted to 120 grad. A typical three-phase circuit is depicted on the figure below. The N shows the neutral point tied to ground.
What are the properties of three-phase electricity?
Another property of three-phase electricity is the relationship between line voltage and phase voltage. Unless the voltages are disturbed by various load conditions, line voltages for all three phases are the same. Also, all the three phases have the same phase voltages.
Where does the neutral line go in a 3 phase system?
The neutral line goes to a similar point on the generation side. Neutral line: The fourth line in a three-phase system, which ideally does not carry current and can be grounded; also called the null line. Null line: Same as a neutral line in a three-phase system.
What is the sum of the voltages in a three-phase AC system?
In a three-phase AC system at any instance, the sum of the voltages in the three lines is zero. This is because these voltages are not in phase with each other. The former method of connecting the source voltages together is called a delta connection (or δ connection) because a δ is formed.
