What is a 2 pin jumper?

What is a 2 pin jumper?

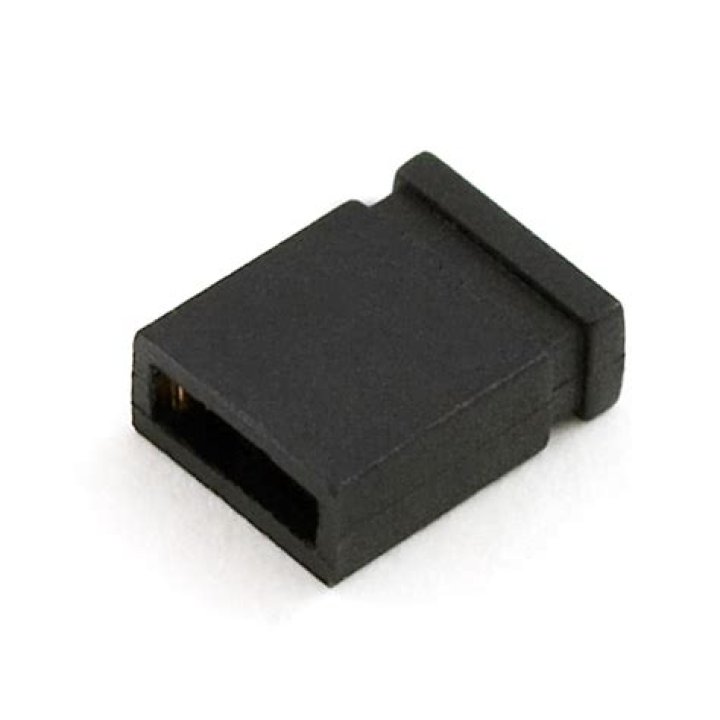

These are two pin jumpers (also called shunts) that will create an electrical connection between two pin headers. Commonly used to modify settings on a board or device. These jumpers were priceless if you sneezed and lost one.

What is a jumper header?

[Terminal] Normally a male connector having exposed pins which are molded into a plastic base. Common Headers are 0.1 inch spacing, pin-to-pin. Female connectors having the same spacing are used to interface. Headers are common in PC motherboards, and are very common as Jumper blocks.

What is a jumper shunt?

Shunt, Jumper Jumpers are a convenient way to cross a trace on a printed circuit board when there is no other option. Shunts can be either soldered in a board or they can be removable when used with a male header. This would allow such things as configuration of a circuit board or re-routing a signal on a board.

What is the use of jumper in PCB board?

In electronics and particularly computing, a jumper is a short length of conductor used to close, open or bypass part of an electronic circuit. They are typically used to set up or configure printed circuit boards, such as the motherboards of computers. The process of setting a jumper is often called strapping.

Can you solder jumper wires?

Poke your tinned jumper end through your PC board. Clean and tin the iron tip. Again, hold the iron on the opposite side of the wire as the solder. Briefly touch both iron and solder to the base of the wire.

Is jumper a sweater?

A sweater (North American English) or pullover, also called a jumper (British English and Australian English), is a piece of clothing, typically with long sleeves, made of knitted or crocheted material, that covers the upper part of the body. When sleeveless, the garment is often called a slipover or sweater vest.

What is jumper connector?

A jumper is a tiny metal connector that is used to close or open part of an electrical circuit. It may be used as an alternative to a dual in-line package (DIP) switch. A jumper has two or more connecting points, which regulate an electrical circuit board.

How do you use jumper wires on PCB?

Jumper wires should be placed on the component side of the circuit board assembly when possible. Of course many circuit board designs have components on both sides, but, since jumper wires are considered components, they should be placed on the side of the circuit board with the majority of large components.

How do you use a jumper pin?

To change a jumper setting, pull the plug off its pin(s) and carefully fit it down onto the pin(s) indicated. A jumper is referred to as open or unjumpered when the plug is pushed down over only one pin or if there is no plug at all. When the plug is pushed down over two pins, the jumper is referred to as jumpered.

Where are the jumpers on a motherboard?

Look around your motherboard’s surface for a jumper (as shown in the picture) with the CLEAR CMOS label, which will be located on the motherboard and near the jumper. These jumpers are often located near the BIOS chip itself or next to the CMOS battery.
