What is 7 segment display code?
A seven-segment display is a form of electronic display device for displaying decimal numerals that is an alternative to the more complex dot matrix displays. Seven-segment displays are widely used in digital clocks, electronic meters, basic calculators, and other electronic devices that display numerical information.
What is a 7 segment display and how it works?

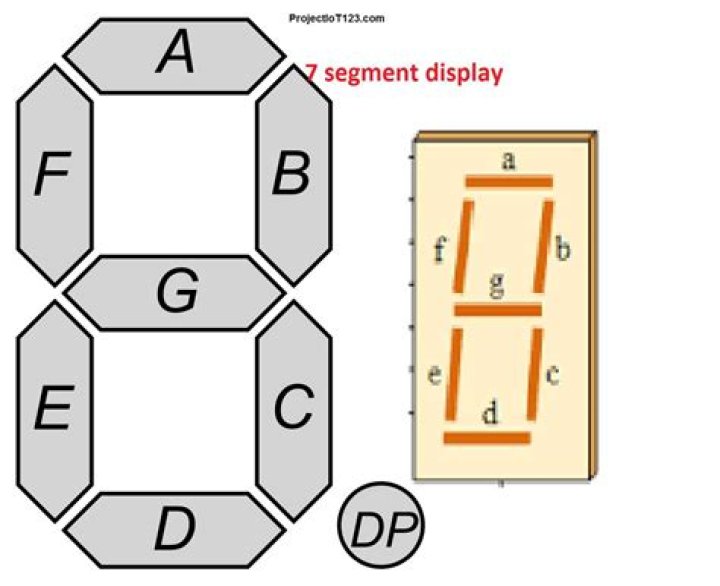

A 7 segment display is made of seven different illuminating segments. These are arranged in a way to form numbers and characters by displaying different combinations of segments. The binary information is displayed using these seven segments. These LED’s or LCD’s are used to display the required numeral or alphabet.
What is BCD to 7 segment decoder?
BCD to seven segment decoder is a circuit used to convert the input BCD into a form suitable for the display. It has four input lines (A, B, C and D) and 7 output lines (a, b, c, d, e, f and g) as shown in Figure 3.
What is a 7 segment display Arduino?
A seven-segment display is simply sufficient. Consider using a seven-segment display if your Arduino application solely needs to display numbers. This display has seven LEDs arranged into the number eight. They are both cost-effective and easy to use.
How do you verify whether the seven segment display visible in the simulator is a common anode or a common cathode type?
If the LED lights up, it is common ANODE. If no segment lights up then you need to reverse the wiring. So swap the two wires over on the battery or supply, if the LED lights up now it is common CATHODE.
How does IC 7447 work?
The IC7447 IC is a BCD to seven segment decoder. This IC7447 gets the binary coded decimal like the input as well as gives the outputs like the related seven-segment code. Thus, this is all about the BCD to 7 segment decoder display.
Which decoder is used in interfacing of 7 segment display?
A Digital Decoder IC, is a device which converts one digital format into another and one of the most commonly used devices for doing this is called the Binary Coded Decimal (BCD) to 7-Segment Display Decoder.
What is a seven segment display?
Seven-segment display. A seven-segment display (SSD), or seven-segment indicator, is a form of electronic display device for displaying decimal numerals that is an alternative to the more complex dot matrix displays.
What is the 7 segment decoder?
Common display decoder ICs. As it turns out,there are many seven segment display decoders that will convert a BCD input and display a decimal number.
How does 7 segment works?
Firstly,identify these components.
What is a 7 segment led?
A 7 Segment LED Display is a electronic device that contains an array of 8 individual LEDs. Each of the 8 segments that make up the display can be either be on the on state or the off state. Depending on which LEDs are lit determines the character which is displayed on the LED.
