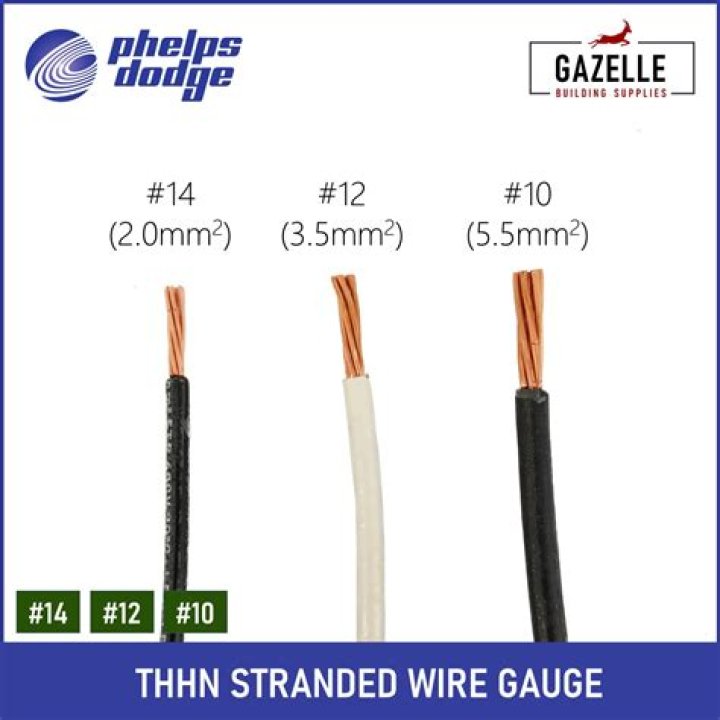

What is 14 stranded Thhn wire used for?

What is 14 stranded Thhn wire used for?

THHN 14 19 It is suitable for use as general-purpose wiring for installation in conduit, cable trays, or other recognized raceway.

What is difference between Thhn and THWN?

THHN stands for Thermoplastic High Heat-resistant Nylon-coated. THWN wire is the same, but the “W” stands for water-resistant. The main difference between these two standards is their maximum temperature in wet locations. However, most of these wires, so you can use THHN and THWN interchangeably.

What is the difference between solid copper wire and stranded copper wire?

The most significant difference between stranded and solid cable is performance. Because higher gauge conductors (thinner) have more insertion loss than lower gauge (thicker) conductors, stranded cables exhibit 20 to 50% more attenuation than solid copper conductors (20% for 24 AWG and 50% for 26 AWG).

How much does 4 3 wire cost?

4/3 Black Stranded CU W/G Tray Cable. ($4.39 /ft.)

Is Thhn wire solid or stranded?

THHN stands for Thermoplastic High Heat-resistant Nylon coated. THHN is available in stranded or solid conductors depending on the size. It is either manufactured in copper or aluminum and covered in PVC (polyvinyl chloride) insulation with a nylon jacket.

What is the difference between Romex and Thhn wire?

Romex (non metalic sheathed wire) is a group of single strand wire conductors with a line, neutral and ground conductor, or more. THHN is a stranded, more flexible wire to be used in a metalic or non metalic conduit.

Is Romex THWN?

Romex wire is made out of two or three THHN wires combined with a grounding bare copper wire. Like the THHN wires, Romex wire can’t be used outside because of its minimal PVC jacket protection.

Is THWN wire stranded or solid?

Sizes 8 AWG and larger are stranded. THWN-THHN-2 wire comes in a variety of 10 standard colors. Type THHN/THWN-2 building wire is intended for general-purpose applications as defined by the National Electrical Code (NEC). Type THHN/THWN-2 is permitted for new construction or rewiring for 600-volt applications.

Why do houses use solid wire?

Solid wire is heavier, made for all-weather conditions, is anti-corrosive, rugged, and can withstand frequent, but minimal movement. An ideal application of solid wire would be carrying power through a building structure, as this requires a high current, little movement, and long-lasting durability.

Can you mix stranded and solid wire?

It is possible to mix a solid and a stranded wire but that does not necessarily mean that you should do it. Connecting a solid copper wire to a stranded wire is a relatively complex process.

What size is 200 amp service wire?

Wire Sizes For 200 Amp Service Wiring 200 amp service requires either #2/0 copper wiring or #4/0 aluminum or aluminum clad wiring. Which wire used is determined by the voltage drop and length of the wiring. Many electrical contractors opt to use #4/0 aluminum or copper-clad wire.

What is 4 AWG wire used for?

6-gauge are used for cook tops and ranges carrying 40-50 amps. 4-gauge are used for electric furnaces and large electric heaters protected at 60 amps.
