What does the Michel Levy chart show?

What does the Michel Levy chart show?

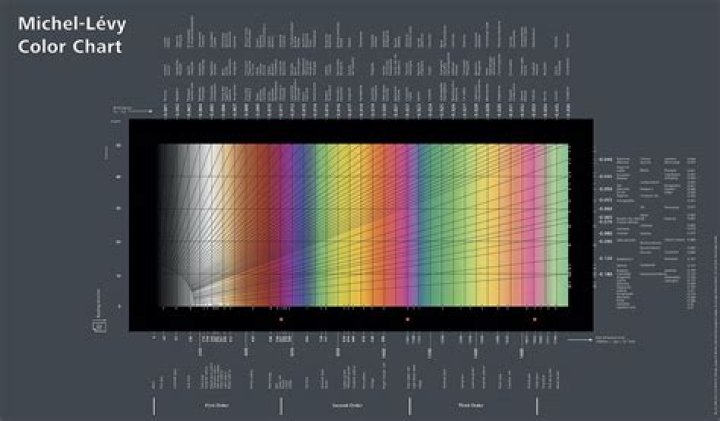

The Michel-Levy chart is utilized by comparing the highest-order interference colors displayed by the specimen in the microscope to those contained on the chart. Birefringence is determined by selecting the diagonal line crossing the ordinate at the intersection of the specimen interference color and thickness value.

What properties does the Michel Levy chart relate?

Since the Michel-Lévy chart shows the interrelationships between thickness, birefringence, and interference color, the microscopists can, as suggested earlier, determine any one from the chart if they know the other two.

How is birefringence calculated?

Birefringence can be determined as it is the difference in the optical path (OPD) between the O- and E-rays, also known as the retardation, divided by the thickness t of the polymer part.

Is Quartz a birefringence?

Quartz crystals are birefringent, so they exhibit optical anisotropy. Consider plane polarised light passing through a birefringent crystal. Inside the crystal, the light is split into two rays travelling along permitted vibration directions (p.v.d.s).

What is mineral birefringence?

Many minerals exhibit birefringence, which is a directional dependence of the speed of light through the mineral. This phenomenon is used by petrologists to identify minerals in a thin section (≤ 1 mm) where a sample illuminated by polarized light is rotated under a microscope to reveal its birefringence.

What is interference Colour in optical mineralogy?

interference colours (polarization colours) In mineral optics, the colours produced when the analyser is inserted on a thin-section microscope. They are produced as a result of birefringence (double refraction) whereby one ray of light is retarded relative to the other.

How do you calculate birefringence?

How birefringence can be used in mineral identification?

What is retardation birefringence?

Birefringent Crystals in a Polarizing Optical Microscope. The relative retardation of one ray with respect to another is indicated by an equation (thickness multiplied by refractive index difference) that relates the variation in speed between the ordinary and extraordinary rays refracted by the anisotropic crystal.

What is form birefringence?

Form birefringence is created as a result of an asymmetric core shape for the two axes. This core shape asymmetry creates both geometrical anisotrophy and asymmetrical stress across the core leading onto two different constants of propagation for the birefringent axes.
