What does a carburetor bowl vent do?

What does a carburetor bowl vent do?

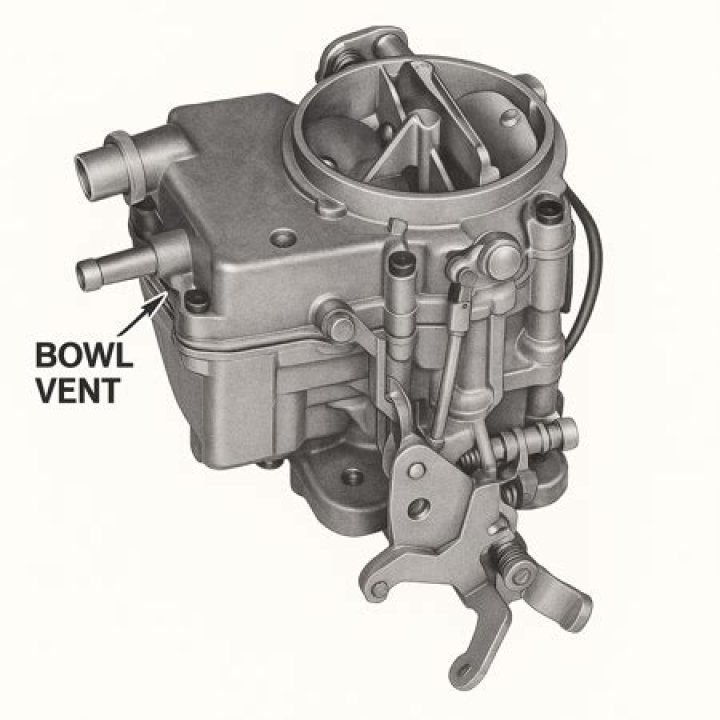

Most carburetors will have a vent tube that acts as a “port” to the fuel bowl; this “port” provides the carburetor with pressure from it’s ambient surroundings and forces the fuel to move through the metering passages as required based on engine demand.

Why is the carburetor float bowl vented to the atmosphere?

float chamber is vented to the atmosphere so that the float experiences atmospheric pressure that forces the fuel out of it when the air flowing through the venturi creates a pressure drop at discharge nozzle and sucks the fuel from the float chamber out to the discharge nozzle, thus mixing the air with fuel.

What is a fuel bowl vent?

The fuel bowl vent is used to vent the float bowl, otherwise a vacuum will result and excess fuel would be introduced into the bore. Warm up the engine to operating temperature. Release the throttle and the motor should retract when in contact with the throttle lever.

What can a sticking carburetor float bowl do?

Engine Misfiring One or more cylinders are not getting enough fuel or getting too much fuel when they are being fired by the spark plugs. This happens when the float is stuck, either in the open or closed position. The engine will stall, not idle smoothly or backfire once the carburetor float sticks.

What happens when the fuel level in the float bowl drops?

As the motor-generated vacuum draws fuel up and out of the carb via jets and fuel and air passages, the fuel level in the bowl will drop, thus releasing the float needle from its seat and allowing more fuel to flow into the float bowl.

What causes a carburetor not to get gas?

No fuel at your carburetor can be caused by many things. It could be a simple issue like a fuel filter plugged so tight that no fuel can pass through. Another logical cause could be the fuel pump. A hole in the fuel line on the tank side could also cause the fuel pump to suck air instead of fuel from the fuel tank.

Why in modern carburetor the float chamber is vented to the carburetor air horn instead of to the atmosphere explain?

That float will control a needle valve, so that when the bowl fills the upward movement of the float will shut off the flow of gas. The float bowl must be vented to the atmosphere, so gas will flow out when pressure builds up because an unvented bowl, when hot, would cause starting problems.

Why is the float chamber vented?

A vent or small opening in the top of the float chamber allows air to enter or leave the chamber as the level of fuel rises or falls.

What does the main nozzle do in a carburetor?

The fuel discharge nozzle is located in the carburetor barrel so that its open end is in the throat or narrowest part of the venturi. A main metering orifice, or jet, is placed in the fuel passage between the float chamber and the discharge nozzle to limit the fuel flow when the throttle valve is wide open.
