What are the wheels on a locomotive called?

What are the wheels on a locomotive called?

The wheel acts as a rolling component, typically pushed onto an axle and mounted directly on a railway carriage or locomotive, or indirectly on a bogie (in the UK), also called a truck (in North America). The powered wheels under the locomotive are called driving wheels.

What is wheel slipping in locomotive?

Wheel slipping occurs when tractive effort exceeds adhesive weight whereas sliding occurs when braking effort exceeds adhesive weight. When Tractive effort is more than adhesive weight, difference in power accelerate the wheel which results into grinding action on the rail.

How do train wheels get traction?

Trains get traction because of the immense weight of the locomotives, and the friction generated between the wheel and rail head. Furthermore, the free rolling bearings on rolling-stock significantly contribute to momentum keeping the train rolling.

What keeps train wheels from slipping?

The wheels on each side of a train car are connected with a metal rod called an axle. This axle keeps the two train wheels moving together, both turning at the same speed when the train is moving. To help the wheels stay on the track their shape is usually slightly conical.

What are the bars called on train wheels?

Connecting rod / Main rod Steel arm that converts the reciprocating motion of the piston into a rotary motion of the driving wheels. The connection between piston and main rod is a crosshead, which slides on a horizontal bar behind the cylinder.

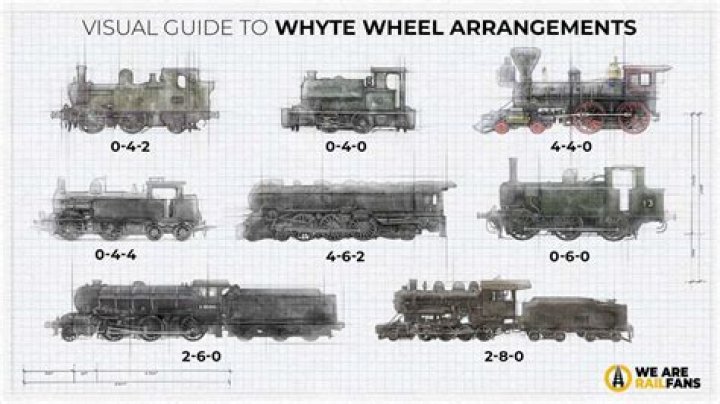

How many wheels does a locomotive have?

The suffix ‘o’ is used to indicate independently powered axles. The number of driving wheels on locomotives varied quite a bit. Some early locomotives had as few as two driving wheels (one axle). The largest number of total driving wheels was 24 (twelve axles) on the 2-8-8-8-2 and 2-8-8-8-4 locomotives.

How do you stop a slipping wheel?

Sanding is one method of reducing wheel slip or slide. Locomotives and Multiple units have sandboxes which can deliver dry sand to the rails in front of the wheels. This may be initiated automatically when the Wheel Slide Protection system senses loss of adhesion, or the driver can operate it manually.

How much weight can a locomotive pull?

Heavy Haul vs High Speed.

Do trains still use sand for traction?

The heaviest trains require the highest friction and the heaviest locomotive. The friction can vary a great deal, but it was known on early railways that sand helped, and it is still used today, even on locomotives with modern traction controls.

How much of a train wheel touches the track?

The only part of a train wheel that actually touches the rail is around the size of a 10 cent/20pence coin. Think about that the next time you’re hurtling along at 125mph. Actually – the wheel flange very rarely touches the rail. What keeps the train on the track is the conical angle of the wheel profile.

How do trains get traction uphill?

Trains that do climb mountains go up tracks that spiral around the mountain or go through many switchbacks. The wheels just guide the car up the mountain. They don’t provide any of the pulling power. But the true genius of the funicular is that it uses two cars at the same time, one on each side of the top pulley.

How do locomotives get traction?

Locomotives are engineering marvels, and many instances must be present in order for a locomotive to gain traction efficiently. Trains get traction because of the immense weight of the locomotives, and the friction generated between the wheel and rail head.

What is the best tire traction product for model railroading?

Second Bull Frog Snot is the best tire traction product I have ever found for model railroading. I have a few grades that are 3-4% and My C-16 through My C-19 engines drive being light weight 2-8-0 engines with more than 5 cars will just spin their wheels before I started using Bull Frog Snot.

What are the driving wheels on a locomotive?

On an articulated locomotive or a duplex locomotive, driving wheels are grouped into sets which are linked together within the set. The four driving wheels on one side of a 4-8-4 locomotive. Driving wheels are generally larger than leading or trailing wheels.

How do locomotives avoid wheel slip?

Modern locomotives are equipped with various traction control systems that allow them to reduce or eliminate wheel slip. These types of technology are oftentimes used to govern how much power is sent to the wheels in order to avoid wheel slip and retain traction.
