What are the types of motor starters?

What are the types of motor starters?

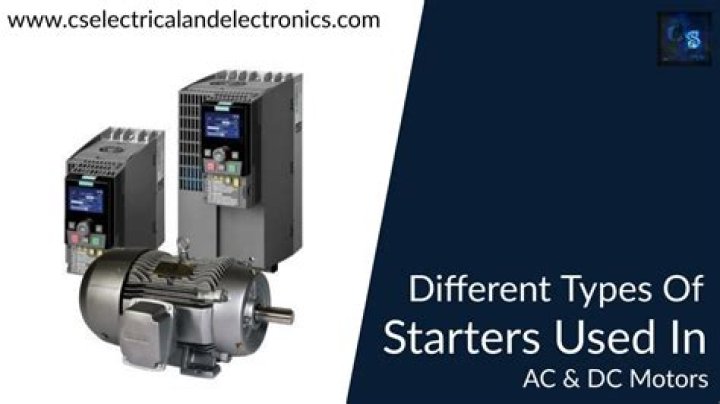

Type of Motor Starters:

• Direct Online Starter (DOL)
• Stator Resistance starter.
• Rotor Resistance or Slip Ring Motor Starter.
• Autotransformer Starter.
• Star Delta Starter.
• Soft Starter.
• Variable frequency drive (VFD)

What are the four types of starters?

Four particular varieties of motor starters are: Across-The-Line, the Reversing Starter, the Multispeed Starter, and the Reduced Voltage Starter. Across-the-line or Full Voltage Non-Reversing (FVNR) is the most commonly used general purpose starter. This starter connects the incoming power directly to the motor.

What are the types of DC motor starter?

Detailed Solution. There are mainly 3 types of DC motor starters, such as 2 point starter, 3 point starter and 4 point starter. The basic concept behind every DC motor starter is adding external resistance to the armature winding during starting.

What is DOL starter PDF?

Description. The Direct on Line motor starter (DOL) is designed to switch a single or three phase induction motor at rated voltage. It comprises an enclosure in steel or plastic, a contactor, start contact, link wires and stop / start buttons. The Thermal overload is supplied as a separate item.

What are the two basic elements of a motor starter?

Contactor Construction and Operation. A magnetic motor starter has two basic parts: the magnetic contactor and an overload relay .

What is a 3 phase motor starter?

Three-phase (three-pole) electromagnetic across-the-line motor-starters. This type of three-pole motor-starter is usually described as a three-phase across-the-line or full-voltage motor-starter because full line voltage is applied to the respective motor leads when the motor-starter solenoid coil is energized.

What are the two types of manual motor starters?

There are several types of starters, including manual, magnetic, soft-starts, multi-speed, and full voltage types, among others.

What is counter emf starter?

Counter-EMF Starter: This type of starter depends upon the buildup of the back or counter emf to operate the contactors (a heavy duty relay designed to open or close an electrical power circuit), which in turn causes the starting resistors to be shorted. The connections of a counter-emf starter are shown in Fig. 1.63.

What is the difference between 3 point and 4 point starter?

The most significant difference between the three point and the four-point starter is that in three-point starter the no voltage coil (NVC) is connected in series with the field winding whereas in four-point starter the NVC is directly connected to the supply voltage.

What is difference between VFD and DOL starter?

As a basic starting method, a DOL starter applies full voltage, current, and torque immediately to the motor after the start command. A VFD converts the AC line voltage to DC voltage, and then inverts it back to a simulated AC voltage for the motor.

Why is star delta starter used?

Star/Delta starters are probably the most common reduced voltage starters. They are used in an attempt to reduce the start current applied to the motor during start as a means of reducing the disturbances and interference on the electrical supply.

How many types of electric motor starters are there?

Direct Online Starter (DOL)

How do I test a starter motor?

You can test a starter solenoid by manually jumping the solenoid as well. Using a long, metal screwdriver, you can test a starter solenoid by placing the screwdriver on the large bolt and battery cable on the front of the solenoid and the small terminal that the starter wire is attached to on the front of the solenoid.

What are the components of starter motor?

Starter motor parts and functions Starter Solenoid Switch. Starter solenoid switch is a part of motor starter were attached commonly at the top of main motor starter. Yoke and pole core. Yoke is a starter motor part were function as a body of the stater motor and at once it is use as a place to Field coil. Armature. Brushes and holder. Drive lever. Over-running clutch. Pinion gear.

What are the types of electrical motors?

Electric motors can generally be divided into several types: alternating current (AC) motors, direct current (DC) motors, and universal motors.
