What are the factors affecting the boundary layer thickness along a flat plate?

The moment method introduces four new parameters that help describe the thickness and shape of the boundary layer. These four parameters are the mean location, the boundary layer width, the velocity profile skewness, and the velocity profile excess.

What is the boundary layer theory?

Boundary Layer Theory. When a real fluid flows over a solid body, the velocity of fluid at the boundary will be zero. If boundary is stationary. As we move away from boundary in perpendicular direction velocity increases to the free stream velocity.

What is the critical Reynolds number for a flat plate?

For flow over a flat plate, the generally accepted value of the critical Reynolds number is Rex ~ 500000. For flow in a pipe of diameter D, experimental observations show that for “fully developed” flow, laminar flow occurs when ReD < 2300 and turbulent flow occurs when ReD > 3500.

What is the shape of laminar boundary layer?

In the case of laminar flow, the shape of the boundary layer is indeed quite smooth and does not change much over time. For a turbulent boundary layer however, only the average shape of the boundary layer approximates the parabolic profile discussed above.

What are the characteristics of boundary layer?

Boundary layers are thinner at the leading edge of an aircraft wing and thicker toward the trailing edge. The flow in such boundary layers is generally laminar at the leading or upstream portion and turbulent in the trailing or downstream portion.

What is the significance of the term flat plate when applied to a boundary layer flow?

Flat plate is nothing but a momentum sink. It will extract momentum from any fluid flowing over it. Extracting momentum from a fluid is equal to slowing it, and the region where the fluid is slow (compared to the free stream flow away from the plate) is boundary layer.

What is the importance of boundary layer?

The thickness of the boundary layer influences how quickly gasses and energy are exchanged between the leaf and the surrounding air. A thick boundary layer can reduce the transfer of heat, CO2 and water vapor from the leaf to the environment.

What is boundary layer in civil engineering?

Boundary layer is a region in the immediate vicinity of the boundary surface in which the velocity of flowing fluid increases gradually from zero at the boundary surface to the velocity of the main stream.

What is the transition Reynolds number for flow over flat plate?

5 × 105
The transition Reynolds number for flow over a flat plate is 5 × 105.

What is Reynolds number for laminar flow?

As indicated previously, if the Reynolds number is less than 2000, the flow is considered to be laminar. This is also known as viscous flow. This means that the various layers of liquid flow without turbulence in the form of laminations.

What do you call the point where the boundary layer on a flat plate changes from laminar to turbulent?

This results in a lower skin friction due to the characteristic velocity profile of laminar flow. However, the boundary layer inevitably thickens and becomes less stable as the flow develops along the body, and eventually becomes turbulent, the process known as boundary layer transition.

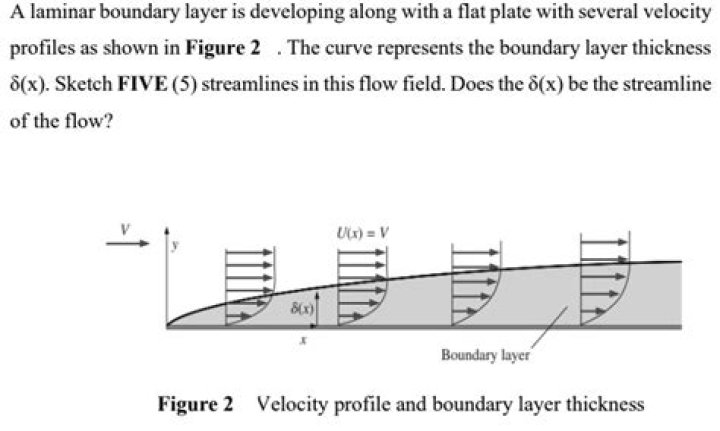

How does the laminar boundary layer thickness vary along a flat plate in a uniform flow?

The momentum of the flat plate is zero and the momentum of the uniform flow has a finite value. When the incoming uniform flow flows over a flat plate, the fluid particles near the plate will stick to the plate (no-slip condition). And hence the boundary layer thickness increases as the fluid moves downstream.

What is boundary layer, exactly?

The boundary layer refers to the thin transition layer between the wall and the bulk fluid flow. The boundary layer concept was originally developed by Ludwig Prandtl and is broadly classified into two types, bounded and unbounded.

How is a boundary layer formed?

Boundary Layer As fluid flows over a submerged object a boundary layer is formed. The boundary layer is due to the shear stress caused by the viscous effects of the fluid as it moves over the object. Depending on the length of the object and the speed of the fluid, the boundary layer could exhibit both laminar and turbulent flow.

What layer moves underneath the Techtonic plates?

Hot magma wells up at the ridges, forming new ocean crust and shoving the plates apart. At subduction zones, two tectonic plates meet and one slides beneath the other back into the mantle, the layer underneath the crust. The cold, sinking plate pulls the crust behind it downward.

What landforms are formed at divergent plate boundaries?

The landform shown is an oceanic ridge. It is found at the divergent plate boundaries, where the plates move away from each other leaving a gap, basaltic magma rises through a gap in the crust into the rift, cools and forms new crust ( lithosphere ) [1] It is also known as constructive plate boundary because new crust is formed.
