What are the dimensions of a semi truck trailer?
Mia Smith
Published Mar 03, 2026
What are the dimensions of a semi truck trailer?

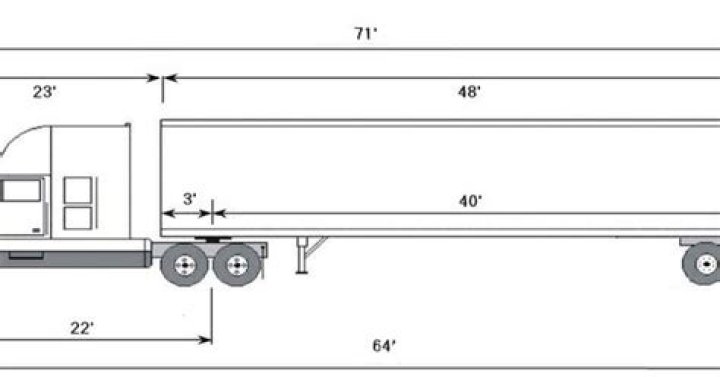

The standard dimensions of semi-trailers are: Length: 48 – 53 feet (576 – 636 inches) Width: 8.5 feet (102 inches) Height: 13.5 feet (162 inches)
What are the inside dimensions of a 53 dry van?
53 Equipment Specifications
| Dimensions | Metric | Imperial |
|---|---|---|
| Inside Width (at liner) | 2,565 mm | 101” |
| Inside Height | 2,794 mm | 110” |
| Cubic Capacity | 114.97 m3 | 4,060 ft3 |
| Weight (+/- 3%) | 6,577 kg | 14,500 lbs |
What is the GVWR of a 53 foot trailer?
The legal weight for 53′ trailer in combination with a tractor-truck is 80,000 lbs. The trick is that, sometimes, after loading, even though the truck’s gross weight may be under 80,000 lbs, it may still be overweight.
What is the height of a 53 dry van trailer?
Height: The maximum cargo height capacity of a 53-foot dry van trailer falls between 108 and 110 inches (from 9 feet to 9 feet, 2 inches high) with 108 inches high being the most common.
How wide is a standard 53 foot trailer?
If we look at a 53 feet semi-trailer, dimensions vary ever so slightly between the overall and the interior. Overall length is 53 feet; overall width is 102″; and overall height is 13ft 6 inches. On the inside, semi-trailers are 47′ 6″ long, 98.5″ wide and 108 inches high.
How long is a semi truck with 53 trailer?
53 feet long
Type of trailer: A standard dry van trailer is 53 feet long, which overlapping a few feet over top of the tractor, makes the unit about 70 feet. Double or pup trailers are typically 28 feet in length, while intermodal containers can be 20 or 40 feet.
How wide is a 53 ft dry van?
The standard dimensions of Dry Van are: 53′ in length. 8’6” in width. 9′ in height.
How much does an empty 53 foot trailer weigh?
about 10,000 pounds
An unladen 53-foot trailer weighs about 10,000 pounds, accounting for a total unladen weight of about 35,000 pounds.
Why are tractor trailers 53 feet long?
For a long time, the 48-foot dry van was the de facto standard in shipping due to regulation which limited overall vehicle length to 75 feet. Once those regulations were changed, the industry adopted the 53-foot trailer. These have room for 13 rows of pallets, plus and extra foot so that the door will close.
How many 40x 48 pallets can you load in a 53 trailer?
26
If your pallets are standard-sized (48″ x 40″ x 48″): A 53ft truck can fit 26 non-stackable pallets and 52 stackable, standard-size pallets. Certainly, the number of pallets that fit on a truck depends completely on the pallet size.
How much does a new 53 foot trailer cost?
To put it differently if you have the money of course it is the best that you buy a new unused trailer straight from the manufacturer, the price of the new 53 foot trailer might vary a lot dependently from which manufacturer you will choose. In general a new trailer might cost you around $35.000 up to $70.000.
What is the standard height of a 53 foot trailer?
If we look at a 53 feet semi-trailer, dimensions vary ever so slightly between the overall and the interior. Overall length is 53 feet; overall width is 102″; and overall height is 13ft 6 inches.
What is the inside height of a 53 ‘ trailer?
Overall length is 53 feet; overall width is 102″; and overall height is 13ft 6 inches. On the inside, semi-trailers are 47′ 6″ long, 98.5″ wide and 108 inches high. The rear door opening is 94″ in width and 102″ in height. 53 ft semi-trailers have a capacity of 3,489 cu ft (cubic feet) and weigh 13, 500 lbs.
What is the size of a standard trailer?
The box or van trailer is used widely in the US. The typical lengths are 53 ft (16.15 m), 48 ft (14.63 m) and 40 ft (12.19 m). There are other sizes used, such as 36 ft (10.8 m), 34 ft (10.36 m) and 28 ft (8.53 m).
What is the weight of a 53 foot trailer?
A 53 foot long non-refrigerated box or van trailer can weigh between 10,000 to 15,000 pounds. A flatbed trailer may weigh about 16,500 pounds (7500 kilograms).
