What are the 3 pulley systems?

What are the 3 pulley systems?

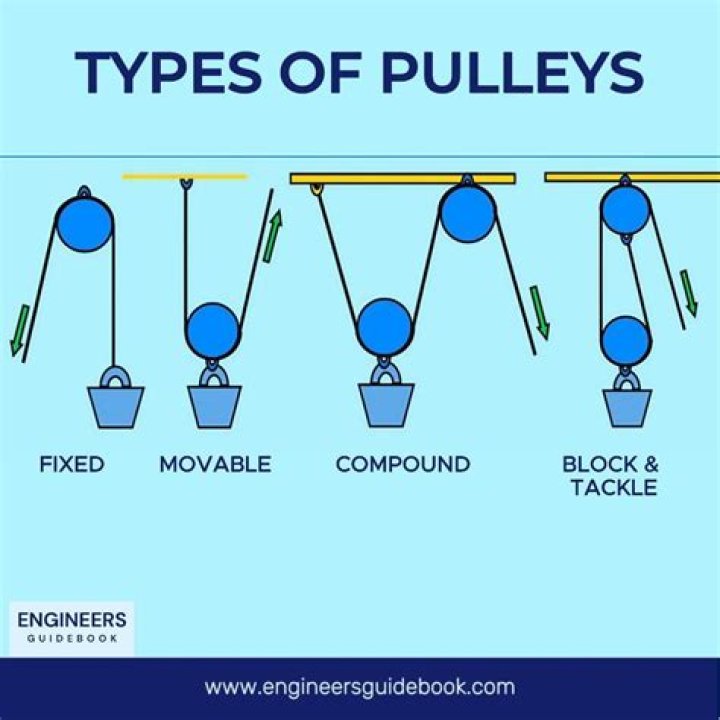

There are three main types of pulleys: fixed, movable, and compound.

What are the different types of pulley systems?

There are three main types of pulleys:

• Fixed pulley.
• Movable pulley.
• Compound Pulley.
• Cone Pulley.
• Block and Tackle pulley.

What are the 5 types of pulleys?

Five Types of Pulley

• Fixed.
• Moving.
• Block and Tackle.
• Cone.
• Swivel eye.

What are the 6 types of pulleys?

6 Different Types of Pulleys (And When to Use Them)

• Fixed Pulleys. Fixed pulleys are the most common type of pulleys, and the most simple, for that matter.
• Moveable Pulleys. Moveable pulleys are the exact opposite of fixed pulleys.
• Compound Pulleys.
• Block and Tackle Pulleys.
• Conveyor Pulleys.
• Cone Pulleys.

What is a 3 1 pulley system?

An easy way to calculate the ratio of a pulley system is to count the amount of lines that apply effort on the load. In this system there are three ropes that exert effort on to a load of 90kg, so each rope is supporting 1/3 of the loads weight (30kg).

What is a simple pulley?

A pulley is a simple machine that is used to lift heavy objects. Block and tackle system is a modified form of a pulley. Pulleys are usually used in sets designed to make the amount of force needed to lift something smaller.

What is an example of a pulley system?

Examples of pulleys include: Blinds on windows operate using a pulley system to move the blinds up and down. You pull the cord on the blinds and the pulley system causes the blinds to open or close. Flagpoles use pulleys in order to hoist the flag up or to bring it down.

What are 5 examples of a pulley that is in your home?

10 Pulley Simple Machines Examples in Everyday Life

• Wells.
• Elevators.
• Exercise Equipment.
• Theatre Curtains.
• Construction Equipment.
• Flagpoles.
• Blinds.
• Rock Climbers.

What is a complex pulley system?

A complex pulley system is one that doesn’t quite meet the definition of a simple or compound. A complex system has a pulley(s) that moves in the opposite direction of the load.

Why pulleys are called simple machines?

One wheel. If you have a single wheel and a rope, a pulley helps you reverse the direction of your lifting force. If you want to lift something that weighs 100kg, you have to pull down with a force equivalent to 100kg, which is 1000N (newtons).

How does a pulley work as a simple machine?

Pulley is a simple machine and comprises of a wheel on a fixed axle, with a groove along the edges to guide a rope or cable. Pulleys are used to reduce the time and energy taken to lift heavy objects.

Why is pulley considered a simple machine?

Pulley is also a simple machine that supports the movement and helps the rider change directions; it is located where the bicycle chain and gears; the next simple machine is the wheel and axle, it involves the pedals, the back wheel, and the axle, they transfer the movement forces between each other.

What kind of simple machine is a simple pulley?

Explanation. A pulley is a simple machine that consists of a wheel with a groove,running along its circumference between the rims of the wheel.

What is an ideal pulley system?

An ideal pulley is a pulley with no mass and no friction. Advantages: An ideal pulley exerts no forces on the cord that are tangent to the cord—it is not pulling in either direction along the cord. As a result, the tension of an ideal cord that runs through an ideal pulley is the same on both sides of the pulley.
